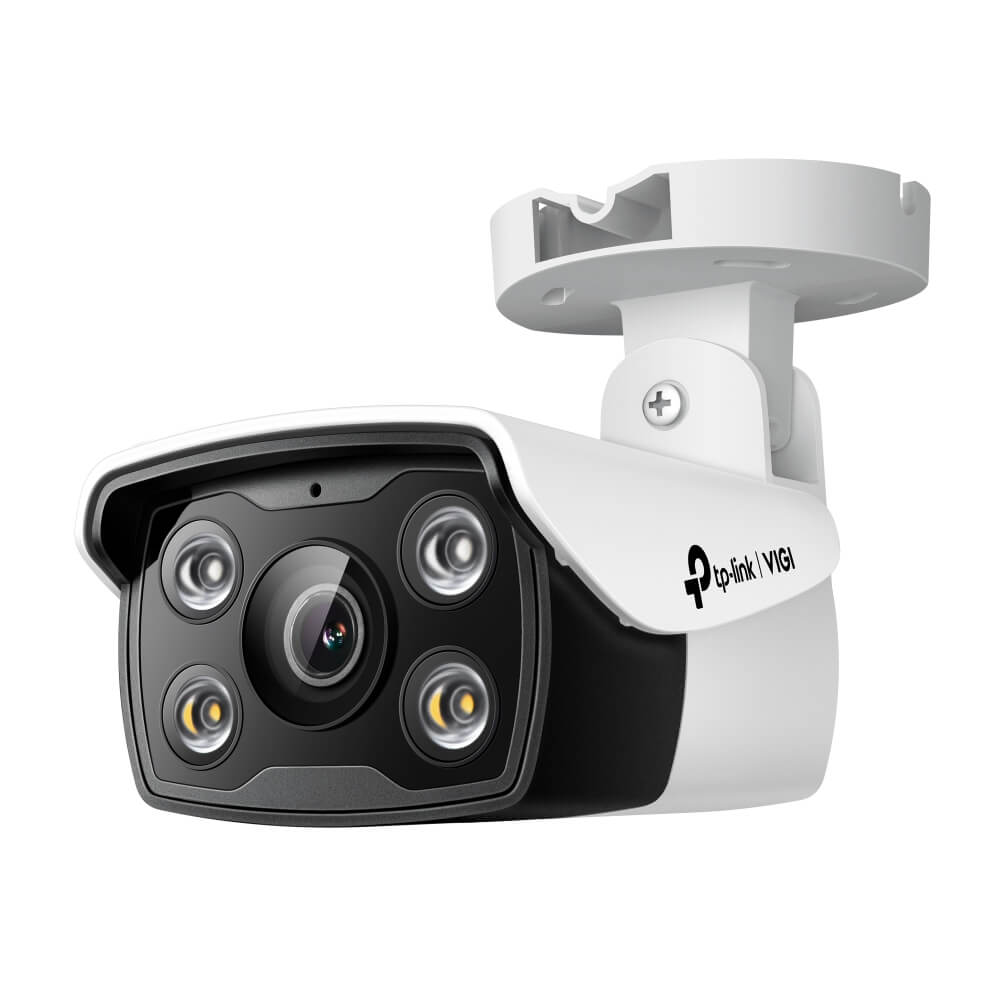

title: TP-Link VIGI C340(2.8mm) VIGI 4MP Outdoor Full-Color Bullet Network Camera
date: 2024-07-02T10:56:50Z
modified: 2026-06-02T07:58:32Z
permalink: "https://tech.co.za/product/tp-link-vigi-c3402-8mm-vigi-4mp-outdoor-full-color-bullet-network-camera/"
type: product
status: publish
excerpt: "1/3” Progressive Scan CMOS, Fixed focal lens (2.8 mm / 4 mm / 6 mm), 3D DNR, Open Network Video Interface (Profile S), 12V DC: Max 7.5W, PoE: Class 0"
wpid: 493585
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - outofstock
product_cat:
  - Smart Home
  - Smart Security
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/1_large_20221121063620p.jpg"
---

- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- IP67 Waterproof: Reliable IP67 for stable outdoor performance.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

**CAMERA**
Image Sensor: 1/3” Progressive Scan CMOS

Lens: Fixed focal lens (2.8 mm / 4 mm / 6 mm)

Day/Night Switch: Day/Night/Auto/Schedule-Switch

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP67

IR Working Distance: 30m

Shutter Speed: 1/3 to 1/10000 s

Aperture:
– 2.8 mm: F1.6
– 4 mm: F1.6
– 6 mm: F1.6

Lens Mount: M12

Illumination Distance: 30 m

Viewing Angle:
– 2.8mm
Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°
– 4mm
Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
– 6mm
Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°

Slow Shutter: Yes

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism: IR Cut Filter

**NETWORK**
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF: Yes

API: Open Network Video Interface (Profile S)

Simultaneous Live View: Up to 6 Channels

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser:
– Google Chrome® 57 and above
– Firefox® 52 and above
– Safari® 11 and above
– Microsoft® Edge 91 and above

Cloud: Yes

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

**GENERAL**
Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Operating Humidity: 95% or Less (Non-Condensing)

Storage Humidity: 95% or Less (Non-Condensing)

Weight: 195g

Package Contents:
– VIGI Network Camera
– Quick Start Guide
– Waterproof Cable Attachments
– Mounting Accessories

Dimensions( H X W X D ): 78 × 70 × 174 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements:
– 12V DC ± 5%, 5.5mm Coaxial Power Plug
– PoE (802.3af/at, class 0)

Net Weight: 0.28 Kg

Gross Weight: 0.42 Kg

Power Consumption:
– 12V DC: Max 7.5W
– PoE: Class 0

Power Supply:
– 12V DC ± 5%, 5.5mm Coaxial Power Plug
– PoE (802.3af/at, class 0)

Protection: IP67

Product Dimensions (L x W x H): 78× 174 × 70 mm

Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

**INTERFACES**
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Audio Input: Built-in Microphone

Audio Output: N/A

Alarm: N/A

Reset Button: Yes

Power: DC Power Port

Button: Reset Button

Slot: Micro SD card

On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone: Yes

Built-in Speaker: Yes

Audio: N/A

**ALARM AND EVENT MANAGEMENT**
Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method: N/A

Output Notification: Message Push

**VIDEO/IMAGE**
Video Compression:
– Main stream: H.265+/H.265/H.264+//H.264
– Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Frame Rate & Resolutions:
– Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640×480, 352×288, 320×240

Max. Resolution: 2560 X 1440

Video Streaming:
– Main Stream
– Sub-Stream

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps

Day/Night Switch: Day/Night/Auto/Schedule-Switch

Privacy Mask: Up to 4 Masks

**SMART FEATURE-SET**
Input Trigger:
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Human & Vehicle Classification,
Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection,
Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection,
Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Linkage Method: N/A

Region of Interest: 1 Region

Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Output Notification: Message Push

**AUDIO**
Audio Communication: Two-Way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps(G.711 alaw)

ILLUMINATOR
IR LED:
– Quantity: 2
– Range: 30m
– Wavelength: 850nm

White LED:
– Quantity: 2
– Range: 30m

Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

**LENS**
Type: Fixed Focal Lens

Focal Length: 2.8 mm/4 mm/6 mm

Aperture:
– 2.8 mm: F1.6
– 4 mm: F1.6
– 6 mm: F1.6

FOV:
– 2.8mm:
Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°
– 4mm:
Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
– 6mm:
Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°

Lens Mount: M12

DORI Distance:
– 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
– 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
– 6 mm
Detect: 128 m (420 ft)
Observe: 53 m (175 ft)
Recognize: 26 m (84 ft)
Identify: 13 m (42 ft)

**ANGLE ADJUSTMENT (MANUAL)**
Range:
– Pan: -90° to 90°,
– Tilt: -90° to 90°

**VIDEO**
Max. Resolution: 2560 X 1440

Main Stream:
– Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:
– Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control: CBR, VBR

Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps

**IMAGE**
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Image Parameters Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes
