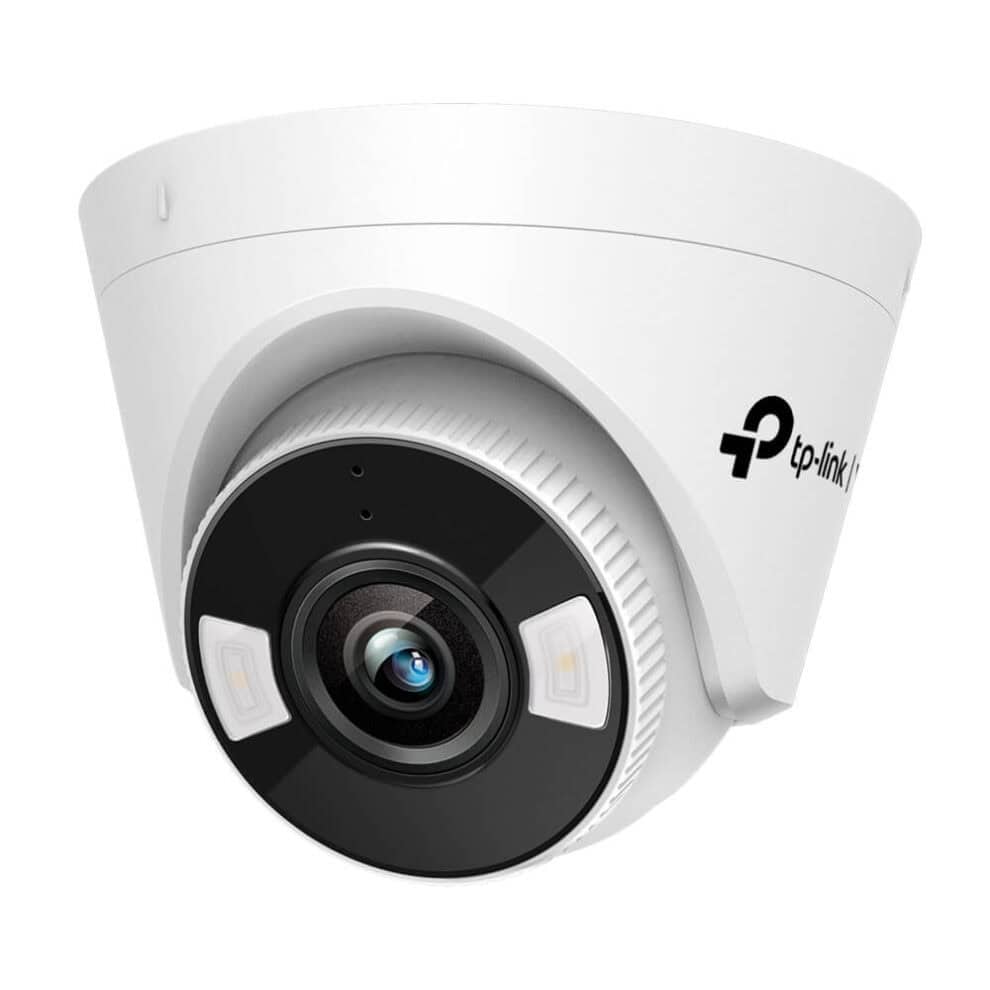

- 4MP Ultra-High Definition: The VIGI C440 comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
- Wireless Connection: Simple and quick deployment with Wi-Fi signals.
- Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
- H.265+ Smart Coding: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Remote Monitoring: Manage your security from the palm of your hand with the VIGI app.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
CAMERA
Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Aperture: 4 mm: F1.6
Lens: Fixed focal lens (4 mm)
Lens Mount: M12
Minimum Illumination: 0 lux with IR/white Light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Digital Noise Reduction: 3D DNR
WDR: DWDR
IR Working Distance: 30m
Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Illumination Distance: 30m (LED)
Viewing Angle: (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
LENS
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
Lens Mount: M12
DORI Distance:
– Detect: 80 m (262 ft)
– Observe: 33 m (109 ft)
– Recognize: 16 m (52 ft)
– Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL)
Range:
– Pan: 0° to 360°
– Tilt: 0° to 85°
– Rotate: 0° to 360°
ILLUMINATOR
IR LED:
– Quantity: 2
– Range: 30m
– Wavelength: 850nm
White LED:
– Quantity: 2
– Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 2560 X 1440
Main Stream
– Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
Sub-Stream
– Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution: 640×480, 352×288, 320×240
Bit Rate Control: CBR, VBR
Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
– Main Stream: 256 Kbps to 3 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
– White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate:
– 11 Mbps (802.11b)
– 54 Mbps (802.11g)
– 150 Mbps (802.11n)
Wireless Security: WPA/WPA2-PSK
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Web Browser:
– Google Chrome® 57 and above
– Firefox® 52 and above
– Safari® 11 and above
– Microsoft® Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Frequency: 2.4 GHz
WIRELESS
WiFi Channels: 1-13
Frequency: 2.4 GHz
Wireless Transmit Power: High
Auto Wireless Channel: N/A
Wireless Statistics: N/A
Throughput Monitoring: N/A
Radio Bandwidth:
– Auto: N/A
– 20M: Yes
– 40M: Yes
Wireless Rate:
– 11Mbps(802.11b)
– 54Mbps(802.11g)
– 150/300Mbps(802.11n)
Wireless Security: PWPA/WPA2-PSK
Wireless Mode: AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event: Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input: Built-in Microphone
Audio Output: Built-in Speaker
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
Button: Reset Button
Slot: Micro SD card
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
GENERAL
Operating Temperature : -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents:
– VIGI Network Camera
– Quick Start Guide
– Screws and Anchors
– Mounting Template
Dimensions( H X W X D ): 123 × 123 × 84 mm
Material: Plastic
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug
Net Weight: 0.24 Kg
Gross Weight: 0.53 Kg
Power Consumption: 12V DC: Max 7W
Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna
Quantity: 2
– Type: 2.4GHz Welded Dipole Omni-Directional Antenna
– Gain: 2.0dBi
Protection: N/A
Product Dimensions (L x W x H): 123× 83× 123 mm
Certifications: CE, FCC, RCM, BSMI, VCCI, RoHS
VIDEO/IMAGE
Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264
Frame Rate & Resolutions:
– Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
– Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640×480, 352×288, 320×240
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event: Area Intrusion Detection, Line-Crossing Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
Region of Interest: 1 Region
