Camera

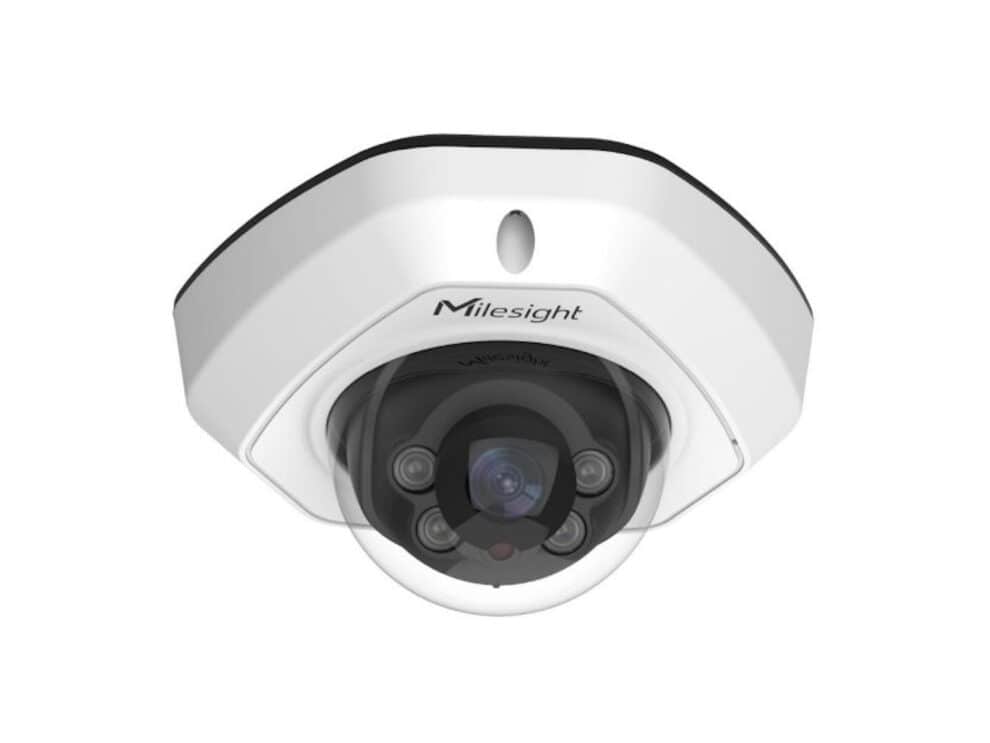

Name: 2MP AI Vandal-proof Mini Dome Network Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination:
Colour: 0.002Lux@F1.2
Colour: 0.005Lux @F1.6
B/W: 0Lux with IR on
WDR: 120dB Super WDR
Lens: 2.8mm/4mm/6mm@F1.6
Mount: M12
Field of View:
H111°/D128°/V61°(2.8mm)
H91°/D106°/V50°(4mm)
H55°/D63°/V32°(6mm)
Shutter Time: 1/100000s∼1s
Day/Night Mode: Day/ Night/ Auto/ Customize/ Schedule
Illumination Distance: Up to 30m
S/N: >55dB
Video
Max. Image Resolution: 1920×1080
Frame Rate:
60Hz: 60fps@(1920×1080)(Optional for R Series)
30fps@(1920×1080, 1280×960, 1280×720, 704×576)
50Hz: 50fps@(1920×1080)(Optional for R Series)
25fps@(1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream:
60Hz: 30fps@(704×576, 640×480, 640×360, 352×288)
50Hz: 25fps@(704×576, 640×480, 640×360, 352×288)
Tertiary Stream:
60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 352×288)
50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 352×288)
Video Compression: H.265+ / H.265(HEVC )/ H.264+ / H.264/MJPEG
Video Bit Rate: 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 4 areas
ROI: Up to 8 areas
Image Settings: Saturation / Brightness / Contrast / Sharpness
Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: Built-in Microphone, 1/1(Multi-interface Version)
Alarm I/O: 1/1(Multi-interface Version)
Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression: G.711/ AAC/ G.722/ G.726
Audio Sampling Rate: 8/16/32/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
