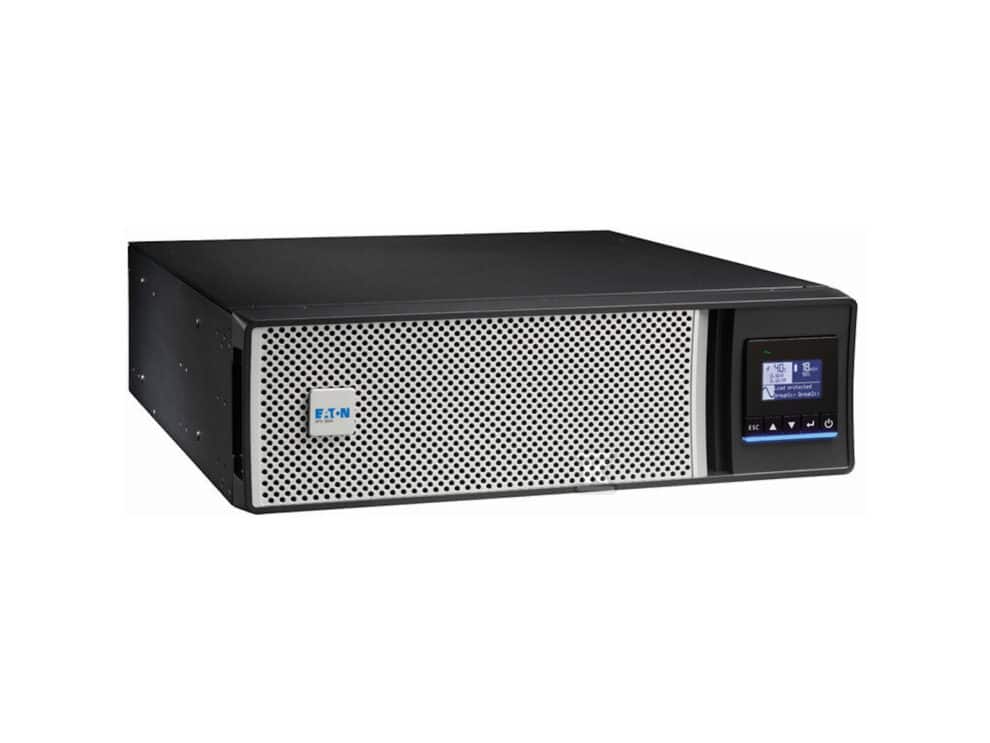

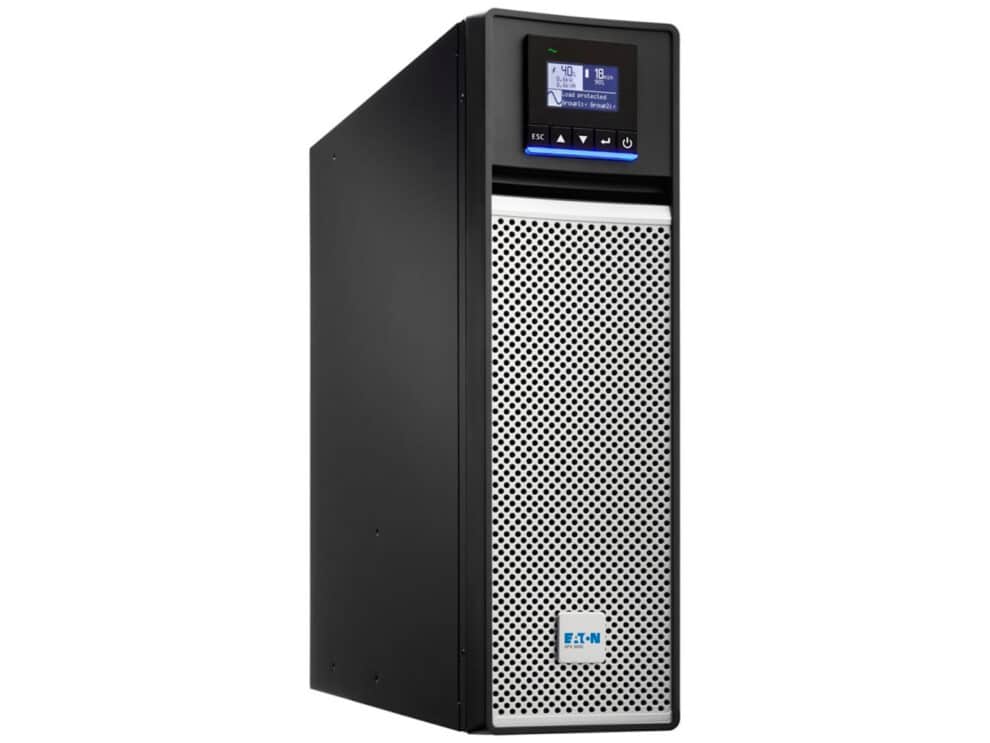

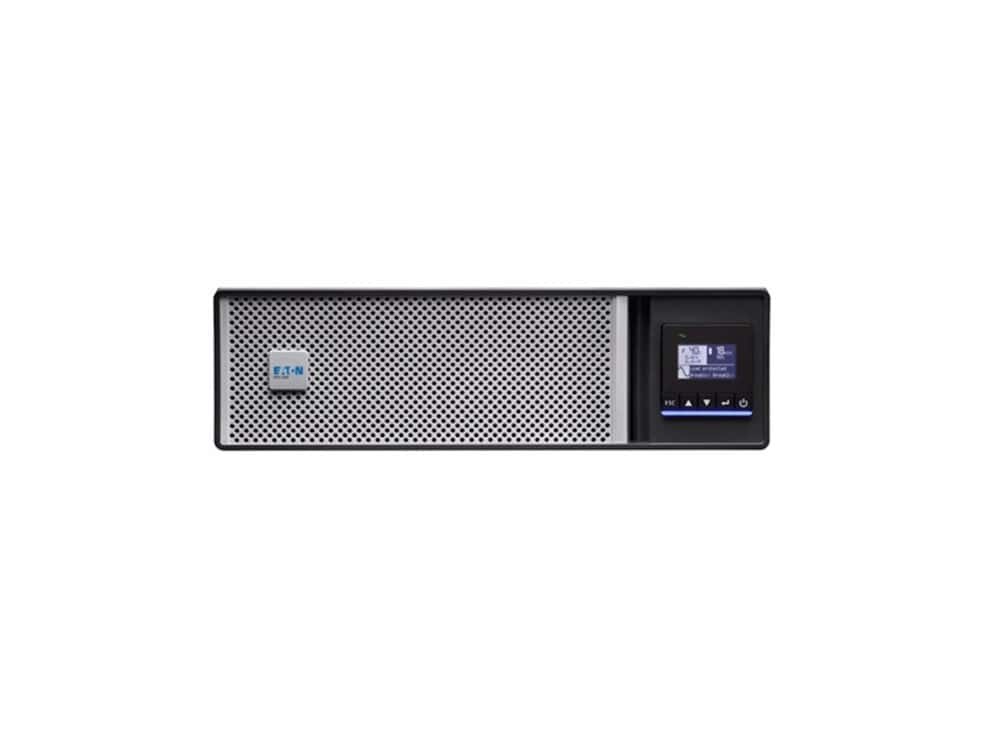

Eaton 5px 3000i Rt3ug2 3000va 230v Tower/Rack

General specifications
Product Length/Depth: 483 mm
Product Height: 129 mm
Product Width: 438 mm
Product Weight: 31.1 kg
Compliances: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, RoHS Compliant, REACH, UL 1778, CSA 22.2

Battery
Battery type: Lead-acid maintenance-free (replaceable)
Battery replacement: User replaceable
Battery quantity: 6
Battery management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Battery rating: 12 V / 9 Ah
Extended battery capability: Yes

Electrical output
Receptacle: (8) C13, (2) C19
Voltage: 230V
Wattage: 3000 W
Output power factor: 1
Output voltage range: 230 V (+6%/-10%)
Output waveform: Sine wave
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) – max: 0
Feed type: 1
Topology: Line-interactive
VA rating: 3000 VA

Electrical input
Input connection: C20
Input nominal voltage: 230V default (200/208/220/230/240V)
Nominal frequency: 50-60 Hz
Input cord length: 1.8m
Input voltage range: 160-294 V (adjustable to 150 V-294 V)
Input frequency range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
