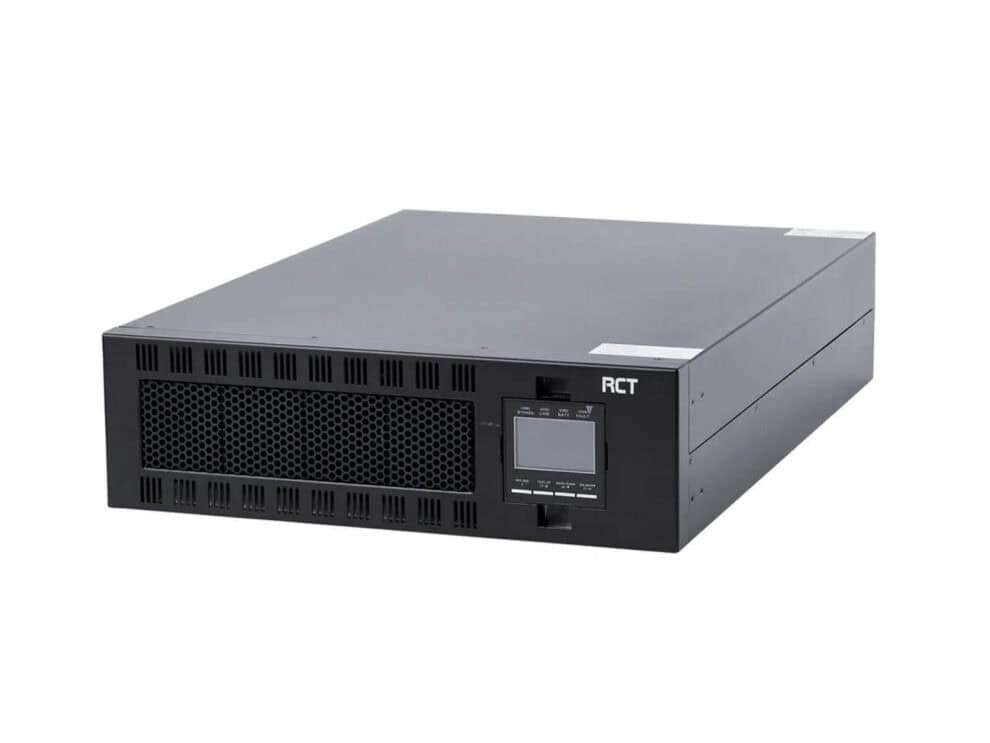

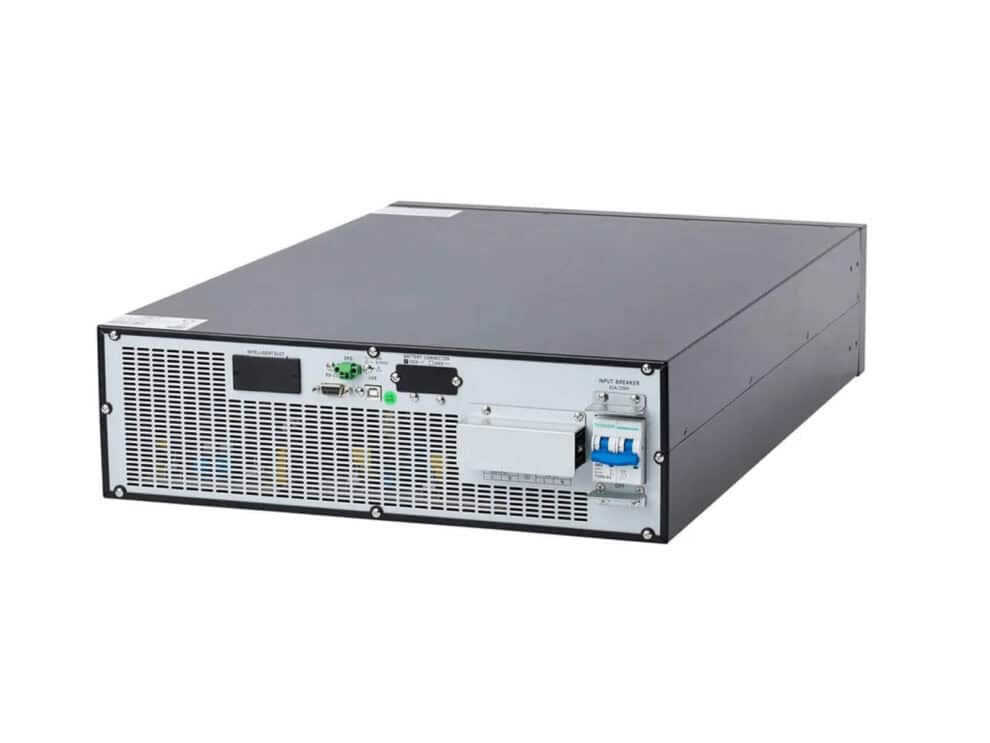

RCT 10000VA/8000W On-Line RackmountUPS

SKU: RCT-10000-WPRU Categories: , Brand:

R 19,789.00

Sale
In Stock20+ units available

In stock

🚚 FREE delivery for orders over R900* (view shipping policy).

  • Gauteng: Delivered in 1-2 business days.
  • Rest of SA: Delivered in 2-5 business days
Guaranteed Safe Checkout

Capacity: 10000 VA / 8000 W

Input
Voltage: 208/220/230/240 VAC
Voltage Range: 110-300 VAC @ 50% load, 176-300 VAC 100% load
Frequency Range: 46~54 Hz or 56~64 Hz
Power Factor: ≥ 0.99 @ nominal voltage (100% load)

Output
Output Voltage: 208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 46~54 Hz or 56~64 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio: 3:1 (max.)
Harmonic Distortion: ≤ 3 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load)

Transfer Time
AC Mode to Batt. Mode: Zero
Inverter to Bypass: Zero
Waveform (Batt. Mode): Pure Sinewave

Efficiency
AC Mode: 93 %
Battery Mode: 91 %

Battery
Standard Model
Battery Type: 12 V / 9 Ah
Numbers : 16
Typical Recharge Time: 9 hours recover to 90% capacity
Charging Current (max.): 1 A / 2 A
Charging Voltage: 218.4 VDC ± 1%

Long-run Model
Battery Type : Depending on the applications running
Numbers : 16~20 (Adjustable)
Charging Current (max.): 1A/2A/4A/6A (Adjustable, 6 A is only available for 16pcs batteries)
Charging Voltage: 218.4 VDC ± 1% (Based on 16pcs batteries)

Indicators
LCD Display: UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge timer and Fault conditions

Alarm
Battery Mode: Sounding every 4 seconds
Low Battery: Sounding every second
Overload: Sounding every twice second
Fault: Continuously Sounding

Physical
Standard Model
Dimensions, D X W X H(mm): UPS Unit: 580x438x88 [3U], Battery Pack: 580x438x88 [3U]
Net Weight (kgs): UPS Unit: 18, Battery Pack: 51

Long-run Model
Dimensions, D X W X H(mm): 580  x 438 x 133[3U]
Net Weight (kgs): 18
