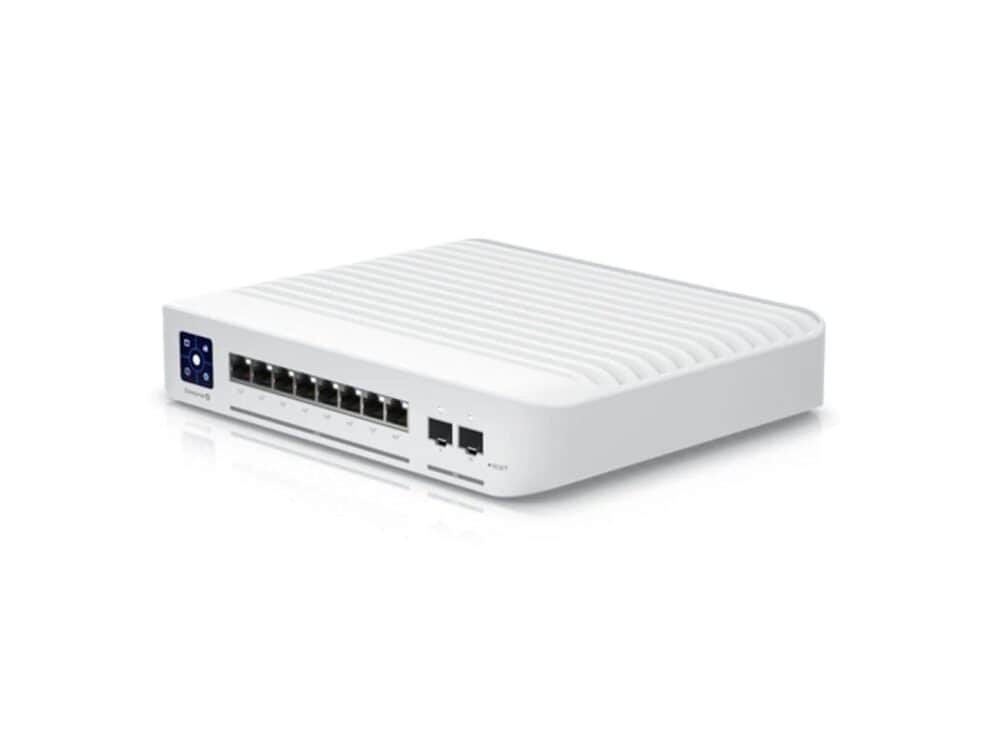

Ubiquiti UniFi Switch Enterprise 8 PoE, 120W PoE

Mechanical

Dimensions

200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)

Weight

2.4 kg (5.3 lb)

Enclosure material

Polycarbonate

Mount material

Polycarbonate

Hardware

Management interface

Ethernet In-Band

Networking interface

(8) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports

PoE interface

(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput

40 Gbps

Switching capacity

80 Gbps

Forwarding rate

59.52 Mpps

Power method

Universal input, 100—240V AC, 2A Max., 50/60 Hz

Power supply

AC/DC, internal, 150W

Supported voltage range

100—240V AC

Total available PoE

120W

Max. PoE+ wattage per port by PSE

32W

Voltage range PoE mode

PoE: 44—57V
PoE+: 50—57V

LCM Display

(1) 1.3″ color touchscreen

Mounting

Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE)

ESD/EMP protection

Air: ± 16kV, contact: ± 12kV

Ambient operating temperature

-5 to 45° C (23 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
