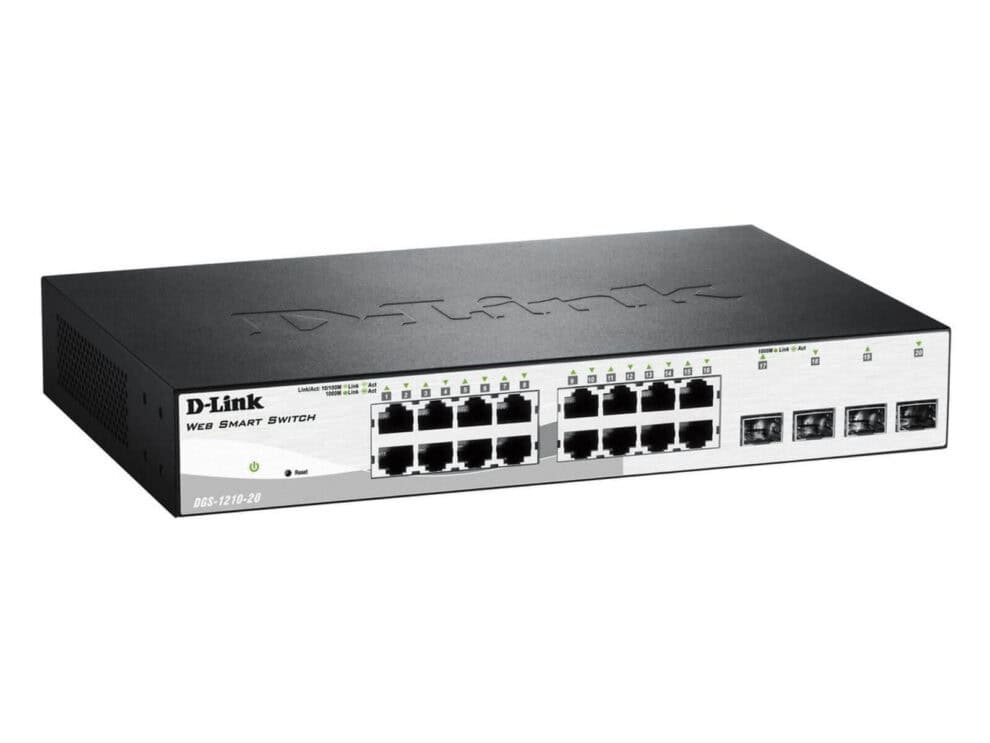

D-Link 16 Port Layer 2 Managed Ethernet Switch
DGS-1210-20E
– D-Link’s DGS-1210 Series Web Smart Switches are the latest generation of switches featuring D-Link Green Technology.
– DGS-1210-20E feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.
– Power saving via the following features:
– Link Status detection
– LED Shut-Off
– Port Shut-Off
System Hibernation
– Access Control List secures network
– D-Link Safeguard Engine protects CPU from
– Broadcast/Multicast/Unicast Flooding
– Port Security supports 64 MACs per port
– ARP Spoofing Prevention
– D-Link Network Assistant Utility or Web-based GUI
– Built-in SNMP MIB for remote NMS (D-View 6.0)
– Compact CLI through Telnet
– Auto Surveillance VLAN
– Loopback Detection automatically disables a port when a loop is detected
– Cable Diagnostics allows administrators to determine cable status
– SFP ports for flexibility
– Auto MDI/MDIX
Technical Specifications
Interfaces
– 16 Ports 10/100/1000 Mbps
– 4 SFP
Port Standards and Functions
– IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
– IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
– IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
– IEEE 802.3az compliance
– Auto-negotiation
– IEEE 802.3x Flow Control
Network Cables
– UTP Cat. 5, Cat. 5e (100 m max.)
Media Interface Exchange
– Auto MDI/MDIX adjustment for all twisted-pair ports
AC Input
– 100 to 240 VAC 50/60 Hz internal universal power supply
Operating Temperature
– 5 to 50 degree C (23 to 122 degree F)
Storage Temperature
– 20 to 70 degree C (-4 to 158 degree F)
Operating Humidity
– 0 percent to 95 percent non-condensing
Storage Humidity
– 0 percent to 95 percent non-condensing
