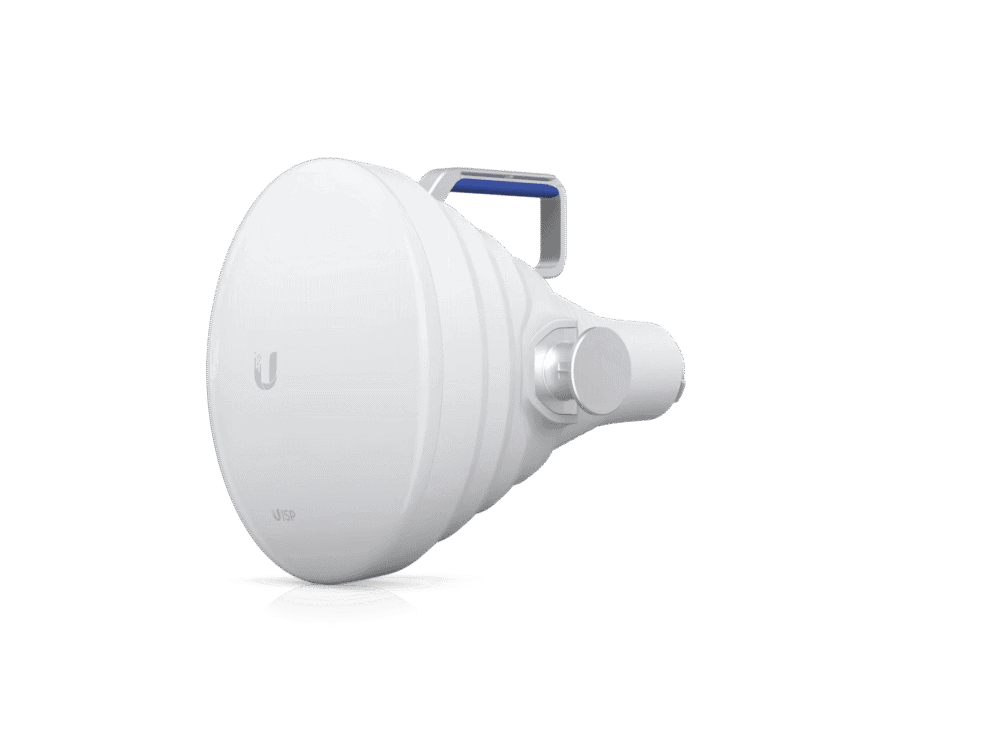

title: Ubiquiti UISP - Horn - High-isolation, point-to-multipoint (PtMP) horn antenna
date: 2024-10-29T16:28:12Z
modified: 2026-05-21T09:01:36Z
permalink: "https://tech.co.za/product/ubiquiti-uisp-horn-high-isolation-point-to-multipoint-ptmp-horn-antenna/"
type: product
status: publish
excerpt: Ubiquiti UISP Horn, 19.5 dBi, 5.15 - 6.875 GHz, 30°, 25°, Horn antenna, Dual polarization
wpid: 517928
product_brand:
  - Ubiquiti
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Access Points
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/UISP-Horn.png"
---

Mechanical
Dimensions: 282 x 224 x 380 mm (11.1 x 8.8 x 15″)
Weight: Device: 3.06 kg (6.75 lb)
Mount: 925 g (2.04 lb)
Enclosure materials: UV stabilized polycarbonate, aluminum alloy
Wind survivability: Up to 200 km/h (124 mph)
Wind loading: 90 N at 200 km/h
Mounting: Alignment mounting kit (included), Mechanical adjustment: ±20° elevation, ±25° azimuth, Pole compatibility: Ø25 to 70 mm (Ø1 to 3″)
Weatherproofing: IPX6

Hardware
Frequency range: 5.15 to 6.875 GHz
Gain: 19.5 dBi
Beamwidth: Azimuth: 30° (6 dB)
Elevation: 25° (6 dB)
Electrical downtilt: 0°
Maximum VSWR: 2:1
Polarization: Dual-linear
Cross-pol isolation: 20 dB
Front-to-back ratio: Typical: 45 to 50 dB, Min.: 40 dB
