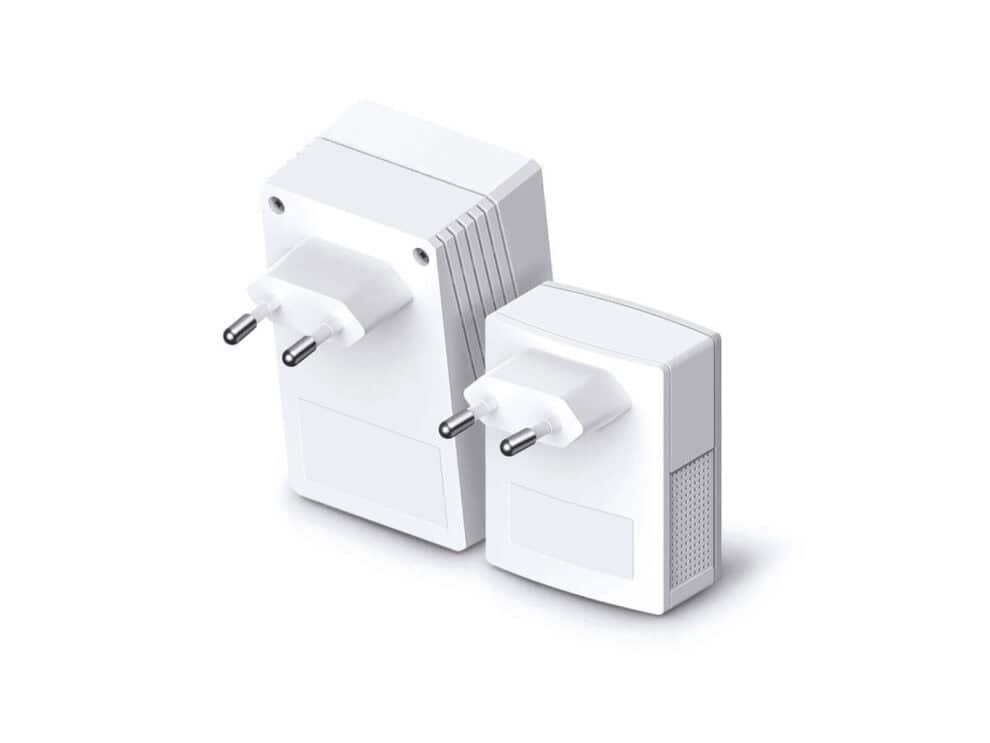

AV500 2-port Powerline WiFi Extender KIT, including 1 TL-WPA4220 and 1 TL-PA4010, 500Mbps Powerline datarate, 300Mbps wireleses N,Plug and Play, 2 fast ethernet ports, WiFi Clone, Support Multiple IPTV Streams
HARDWARE FEATURES
Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface: 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption: Maximum: 7.608W (220V/50Hz)
Typical: 7.216W (220V/50Hz)
Standby: 4.610W (220V/50Hz)
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ): TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range: 300 Meters over electrical circuit
Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
Transmission Speeds: Powerline: up to 600 Mbps
Ethernet: 10/100 Mbps
WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate: 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity: 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power: CE:<20dBm(2.4GHz)
FCC:<30dBm
