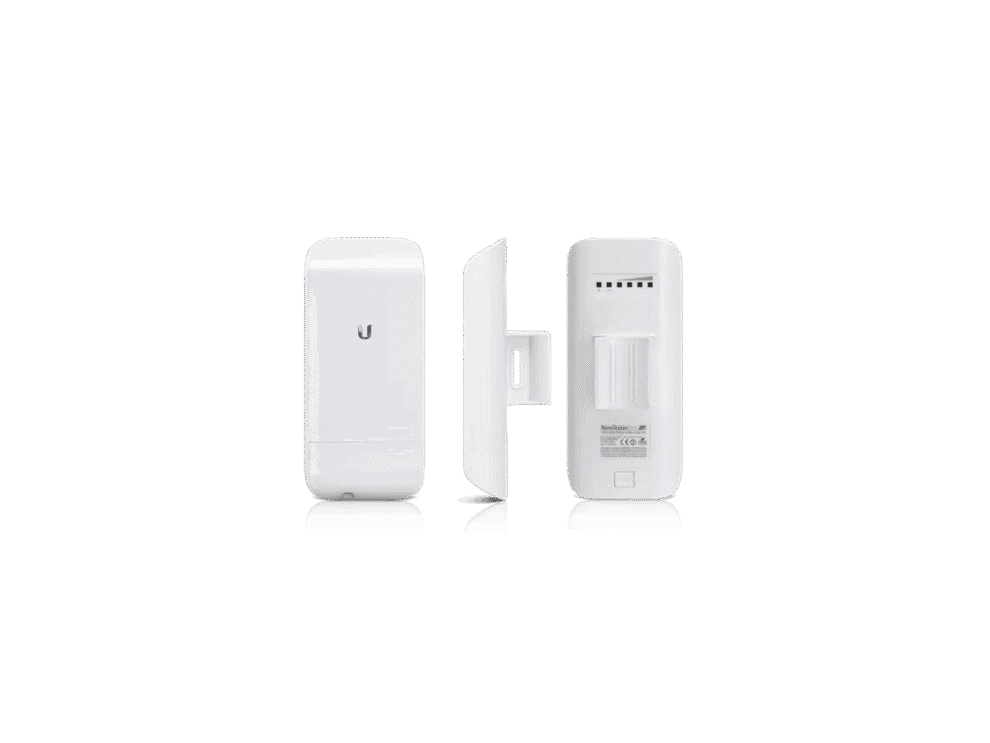

title: Ubiquiti UISP airMAX Loco M5 5GHz 13dBi Radio
date: 2024-10-29T16:27:00Z
modified: 2026-05-21T13:01:42Z
permalink: "https://tech.co.za/product/ubiquiti-uisp-airmax-loco-m5-5ghz-13dbi-radio/"
type: product
status: publish
excerpt: Ubiquiti LocoM5, Network bridge, 150 Mbit/s, Wi-Fi, Ethernet LAN, White
wpid: 517924
product_brand:
  - Ubiquiti
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Access Points
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/LocoM5.png"
---

Technical Specification
Mechanical
Dimensions: 161 x 31 x 80 mm (6.3 x 1.2 x 3.2″)
Weight: 180 g (6.4 oz)
Enclosure material: Outdoor UV-stabilized plastic
Mounting: Pole-mount (Kit included)

Hardware
Networking interface: (1) 10/100 MbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply: 24V, 0.5A PoE adapter (Included)
Supported voltage range: 22–27V DC
Max. power consumption: 5.5W
Ambient operating temperature: -30 to 75° C (-22 to 167° F)
Ambient operating humidity: 5 to 95% noncondensing
Shock & vibration: ETSI300-019-1.4
Certifications: FCC, IC, CE, RoHS

System
Frequency: 5 GHz
Operating frequency
Worldwide
US
USA DFS:
5170-5875 MHz
5725-5850 MHz
5250-5850 MHz
Gain: 13 dBi
Cross-pol isolation: 20 dB Min.
Max. VSWR: 1.4:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual linear
