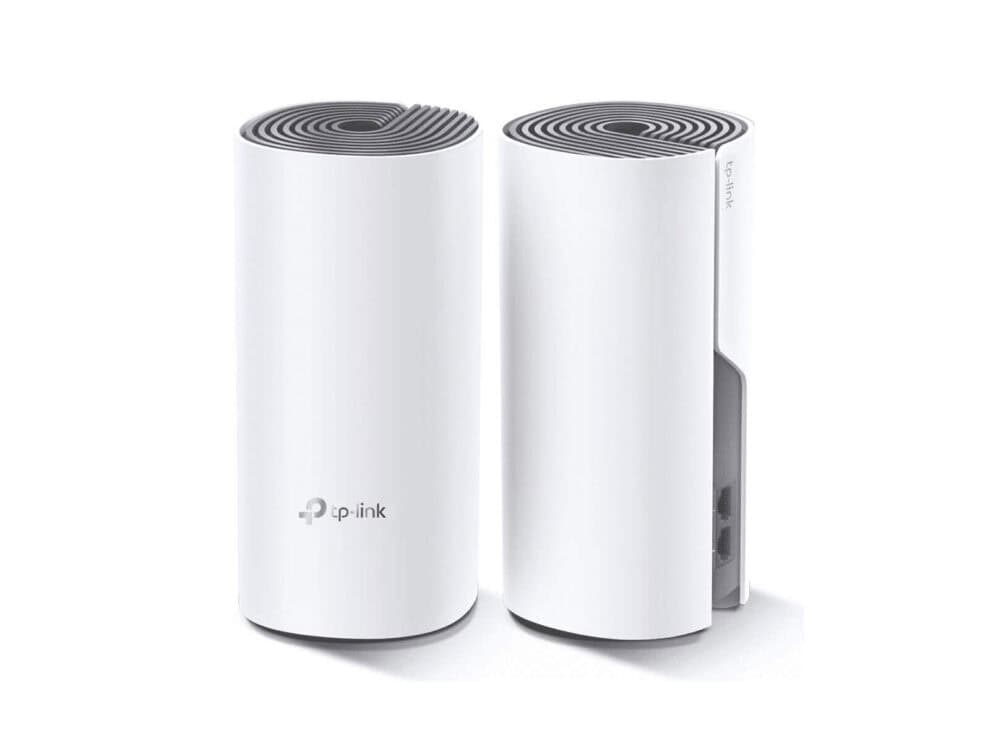

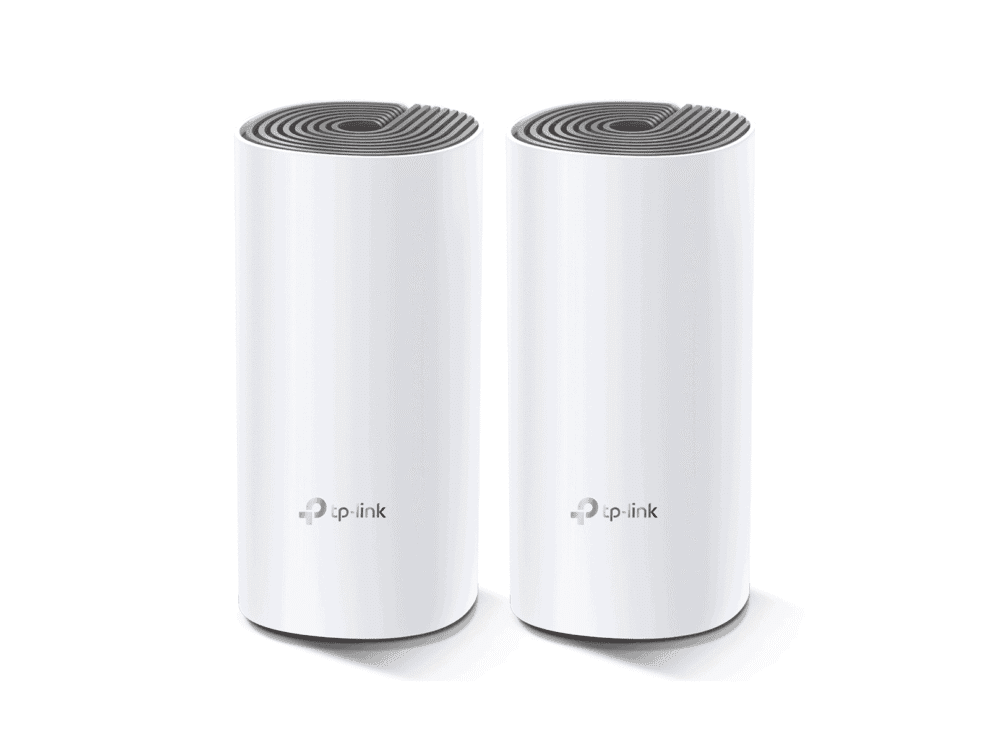

Deco E4 is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 2800 Square feet(2-pack).Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.Want more coverage? Simply add another Deco.
Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
A Deco E4 two-pack delivers Wi-Fi to an area of up to 2,800 square feet (EU version). And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
Deco E4 provides fast and stable connections with speeds of up to 1167 Mbps and works with major internet service provider (ISP) and modem.
Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.
Setup is easier than ever with the Deco app there to walk you through every step.
SECURITY
Network Security:
– SPI Firewall
– Access Control
Guest Network:
– 1× 5 GHz Guest Network
– 1× 2.4 GHz Guest Network
WiFi Encryption:
– WPA-Personal
– WPA2-Personal
WIRELESS
Standards: Wi-Fi 5
– IEEE 802.11ac/n/a 5 GHz
– IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1200
– 5 GHz: 867 Mbps (802.11ac)
– 2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 3-4 Bedroom Houses (3-pack)
– TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
– 2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
– Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity: Medium
– Dual-Band
Distribute devices to different bands for optimal performance
– MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes:
– Router Mode
– Access Point Mode
HARDWARE
Ethernet Ports: 2× 10/100 Mbps Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons: Reset Button
SOFTWARE
Protocols: IPv4, IPv6
Parental Controls:
– URL Filtering
– Time Controls
WAN Types:
– Dynamic IP
– Static IP
– PPPoE
– PPTP
– L2TP
Quality of Service: QoS by Device
Cloud Service:
– OTA Firmware Upgrade
– TP-Link ID
– DDNS
NAT Forwarding:
– Port Forwarding
– UPnP
IPTV:
– IGMP Proxy
– IGMP Snooping
– Bridge
– Tag VLAN
DHCP:
– Address Reservation
– DHCP Client List
– Server
DDNS: TP-Link
Management: Deco App
TEST DATA
WiFi Transmission Power:
– CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
– FCC:
<30 dBm
PHYSICAL
Dimensions (W×D×H): 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm)
Package Contents:
– 2 Deco E4R Units
– 1 RJ45 Ethernet Cable
– 2 Power Adapters
– 1 Quick Installation Guide
