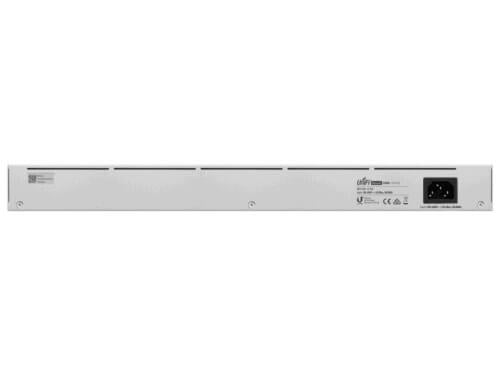

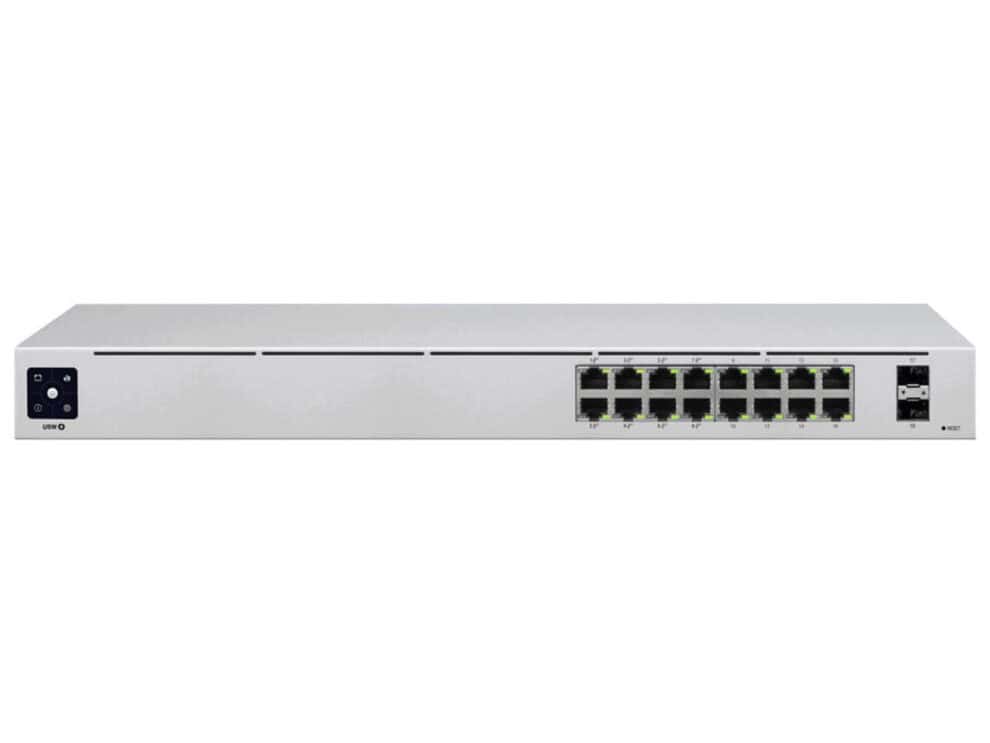

Ubiquiti’s USW-16P is a configurable Layer 2 switch with 16x Gigabit Ethernet ports including 8x auto-sensing 802.3at PoE+ ports, and 2x 1.25Gbps SFP uplink ports. It features a 1.3″ touch LCM to provide status information and with a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the device offers an extensive suite of advanced layer 2 switching protocols and features.
Specifications
Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1~8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240VAC, 50/60Hz
Dimensions: 442.4 x 200 x 43.7 mm
Weight: 2.8kg
