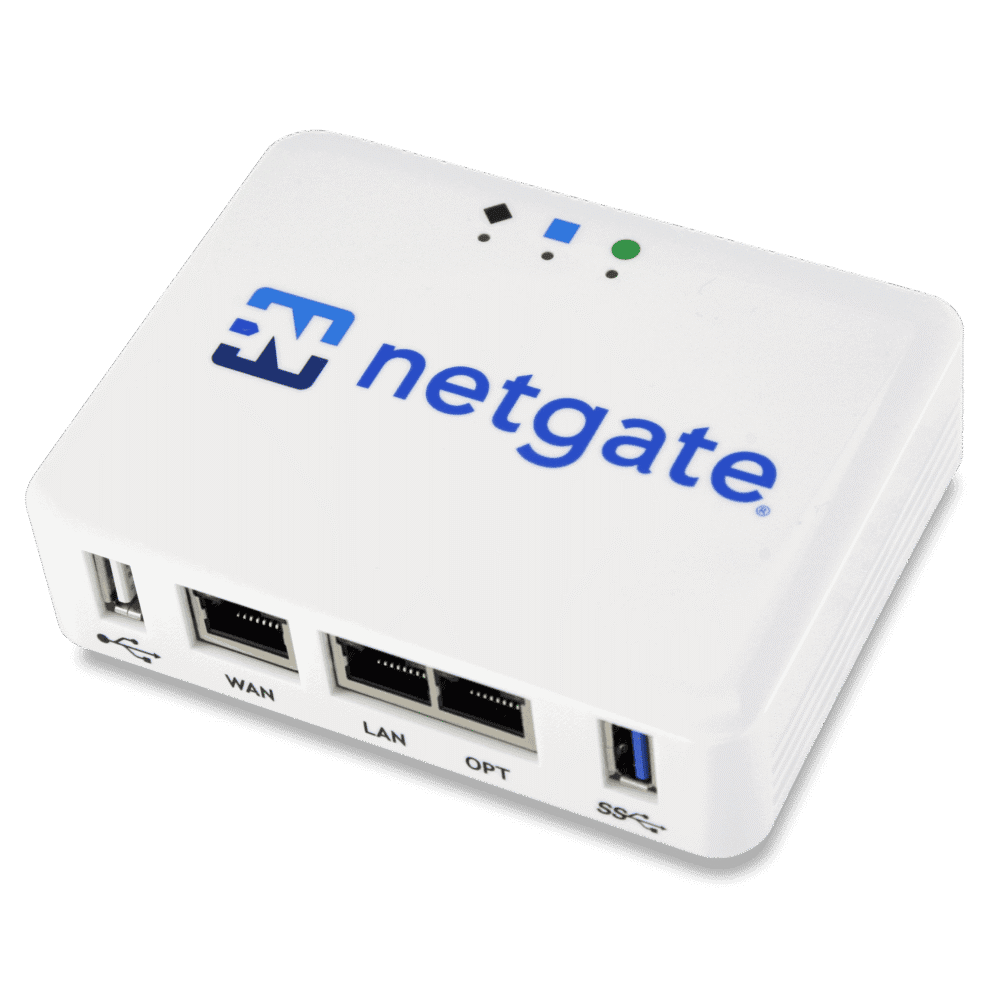

The Netgate® 1100 security gateway appliance with pfSense® Plus software is the ideal microdevice for the home and small office network. With a compact form factor, low power draw, and silent operation it can run completely unnoticed on a desktop or wall. Featuring a Dual-core ARM Cortex-A53 1.2 GHz CPU, (3) 1 GbE ports, and 1 GB of DDR4 RAM, the Netgate 1100 enables up to 927 Mbps routing and 607 Mbps of firewall throughput.
The Netgate 1100 delivers a substantial improvement in pfSense Plus firewall performance relative to its highly popular predecessor, the SG-1000. Consumer and business customers will quickly appreciate this product packs a serious punch with pfSense Plus software, world-class price-performance, elegant packaging, and an unbeatable low price.
L3 Forwarding
- IPERF3 Traffic: 927 Mbps
- IMIX Traffic: 472 Mbps
Firewall
(10k ACLs)
- IPERF3 Traffic: 607 Mbps
- IMIX Traffic: 191 Mbps
IPsec VPN
(AES-CBC-128 + SHA1)
- IPERF3 Traffic: 247 Mbps
- IMIX Traffic: 90 Mbps
Netgate 1100 performance tests conducted with pfSense Plus software version 22.01
CPU: Underpinned by the powerful, yet energy-efficient, 64-bit Marvell ARMADA® 3720 network processing system-on-chip (SoC), which fully leverages Dual Cortex®-A53 ARM® processor cores.

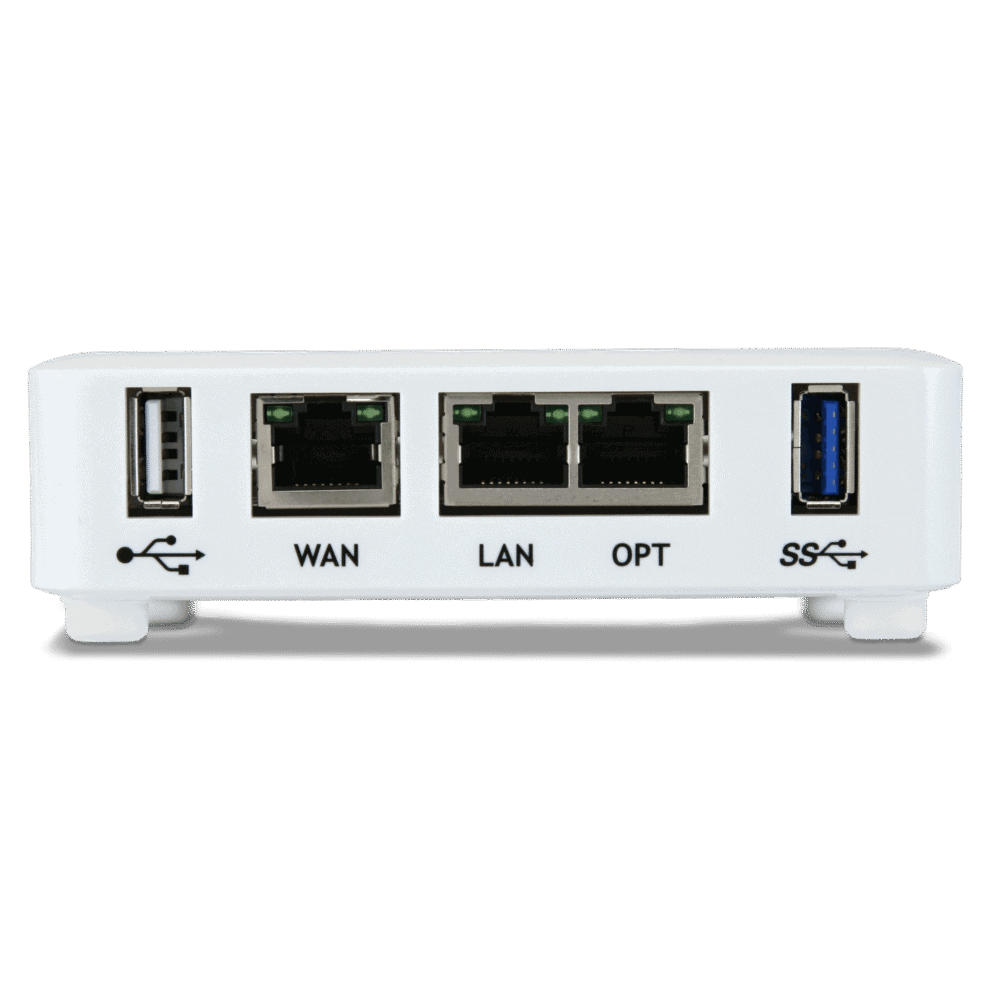

Network Ports: Marvell 88E6141 networking switch which drives (3) GbE Ethernet (WAN/LAN/OPT) ports
Storage: 8GB eMMC storage.
Memory: 1GB DDR4 RAM, DDR4 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 1100 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
pfSense Plus software provides the performance, flexibility, reliability and business assurance expected from leading secure networking applications:
- Up to 10 Gbps performance
- Flexible 3rd-party application options
- Traditional management mechanisms
- Proven reliability
- Complete business assurance support
All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP Server, IDS/IPS, failover WAN, and much more.
TECHNICAL SPECIFICATIONS
| SoC | Marvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz |
|---|---|
| System Memory | 1 GB DDR4 RAM on board |
| Storage | 8 GB eMMC |
| Network Interfaces | 1x Marvell 88E6141 networking switch 3x GbE Ethernet (WAN/LAN/OPT) |
| USB | 1x USB 3.0 1x USB 2.0 1x Micro USB port (console) |
| Misc | Reset button, heatsink, 3 Status LED |
| Power | 12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive (power over USB not supported) |
| Power Consumption | 3.48W (idle) |
| Operating Temperature | 0°C (32°F) to 45°C (113°F) |
| Enclosure | Plastic 110 x 84.6 x 31.75 mm (4.33″ x 3.33″ x 1.25″) |
| Hardware Warranty | 1 year standard with purchase |
| Certifications | CE, FCC, RoHS, UKCA. Looking for RCM certification? Inquire with our Australia or New Zealand Partners. |
