- 4-Channel Live View and 4K HDMI Video Output
- 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget△
- 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability\*
- 4-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth

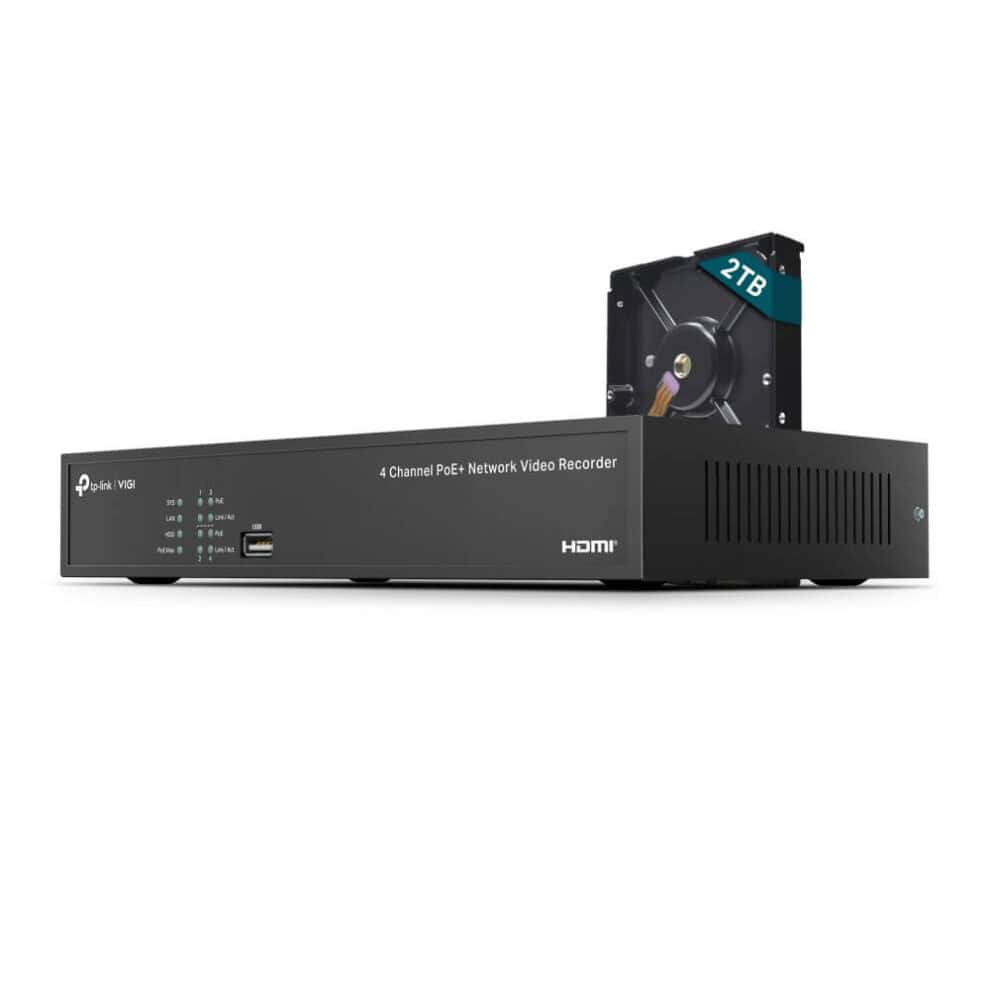

- 1× SATA Interface and 1 Up to 10 TB (1× 2TB HDD Preinstalled)
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring

**VIDEO AND AUDIO**
IP Video Input: 4-Channel

Incoming Bandwidth: 80 Mbps

Outgoing Bandwidth: 60 Mbps

HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

VGA Output Resolution : 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

Video Output Mode: HDMI/VGA Simultaneous Output

Multi-View Display: 1/4

**DECODING**
Audio Compression: G.711A/G.711U/G.726

Decoding Format: H.265+/H.265/ H.264+/H.264

Video Compression: H.265+/H.265/ H.264+/H.264

Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback: 4-Channel†

Capability:
– 25fps:
2-ch @ 8MP, 4-ch @ 4MP
– 30fps:
4-ch @ 4MP, 3-ch @ 5MP

**RECORD MANAGEMENT**
Record Mode:
– Manual Recording
– Scheduling Recording
– Motion Detection Recording

Playback Mode:
– Instant Playback
– Regular Playback
– Tag Playback
– Event Playback

Backup Mode:
– Regular Backup
– Video Clip Backup

Playback Function:
– Play
– Pause
– Stop
– Fast Forward
– Fast Backward
– Play By Frame
– Full Screen
– Video Clip
– Export Clip
– Digital Zoom
– Lock Recording
– Audio On/Off

**NETWORK**
Protocol: UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access: Android, iOS

Web Browser: Chrome (57+), Firefox (52+), Edge (91+)

Interoperability: ONVIF, CGI

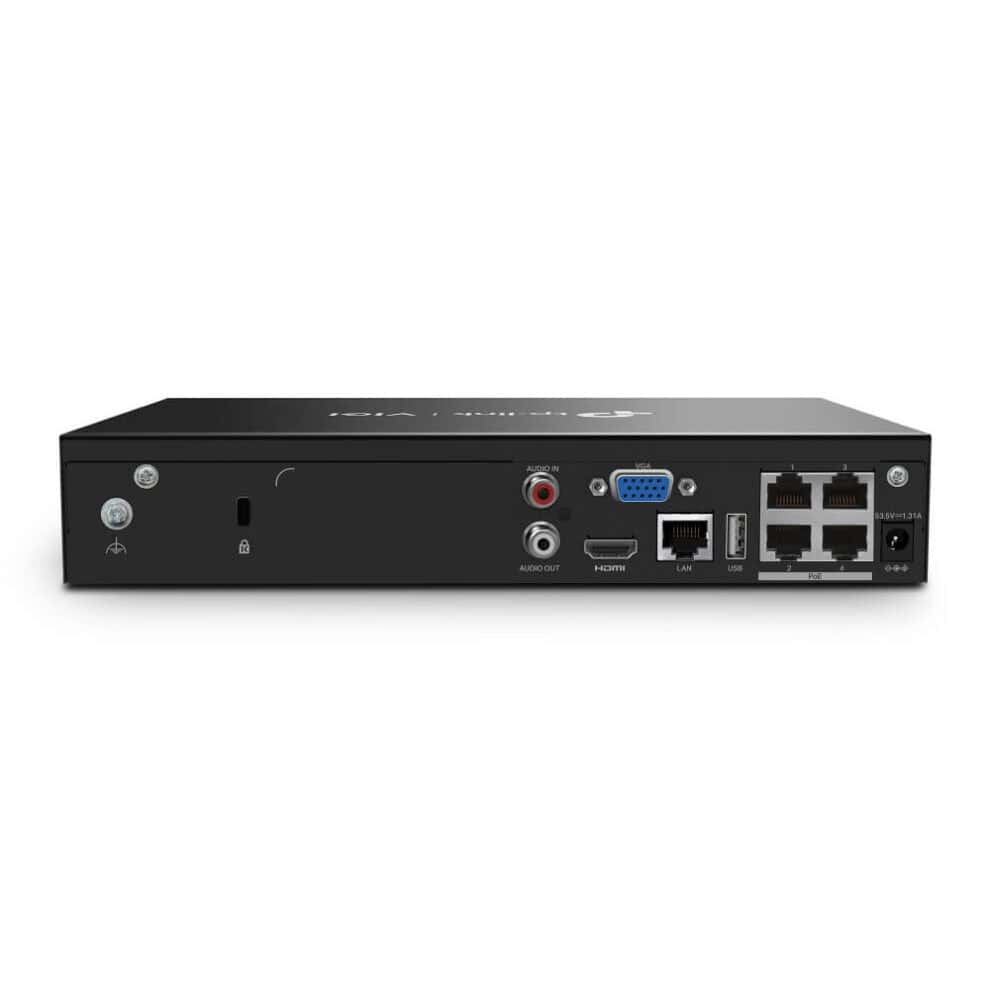

**EXTERNAL INTERFACE**
Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

Audio Interface: 1, Audio In; 1, Audio Out

Alarm In/Out: N/A

Serial Interface: N/A

Power: 1× DC Jack

Reset Button: 1

Speaker: N/A

eSATA: N/A

HDMI: 1

VGA: 1

**HARD DISK**
SATA: 1 SATA Interface

Capacity:
Up to 10 TB Capacity for Each HDD
1 × 2TB HDD Preinstalled

**POE**
Standard: 802.3at/af Compliant

Interface: 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget: 53 W△ Available for All PoE+ Ports, 30 W Max per Port

**ALARM**
General Alarm:
– Motion Detection
– Video Tampering
– Line-Crossing Detection
– Intrusion Detection
– Region Entering Detection
– Region Exiting Detection
– Object Abandoned/Removal Detection
– Vehicle Detection
– Human Detection
– Smart Frame

Anomaly Alarm:
– Video Loss
– Offline and IP Conflict
– Disk Exception
– Login Exception

Alarm Linkage:
– Recording
– White Light Alarm
– Buzzer
– Log
– Audible Alarm

**GENERAL**
Storage Temperature: -40–70 °C

Storage Humidity: 10%~90% RH Non-Condensing

Package Contents:
– VIGI Network Video Recorder
– Power Adapter
– Power Cables
– Rubber Feet
– Mouse
– Quick Installation Guide

Working Temperature:
– NVR: -10–55 °C
– Power Adapter: 0–40 °C

Working Humidity: 10%~90% RH Non-Condensing

Dimensions( W X D X H ): 246.2 × 148.2 × 45 mm

Power Supply: 53.5V DC/1.31A

Power Consumption:
– 4.25 W (Without Disk)
-13.10 W (With Disk)

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
