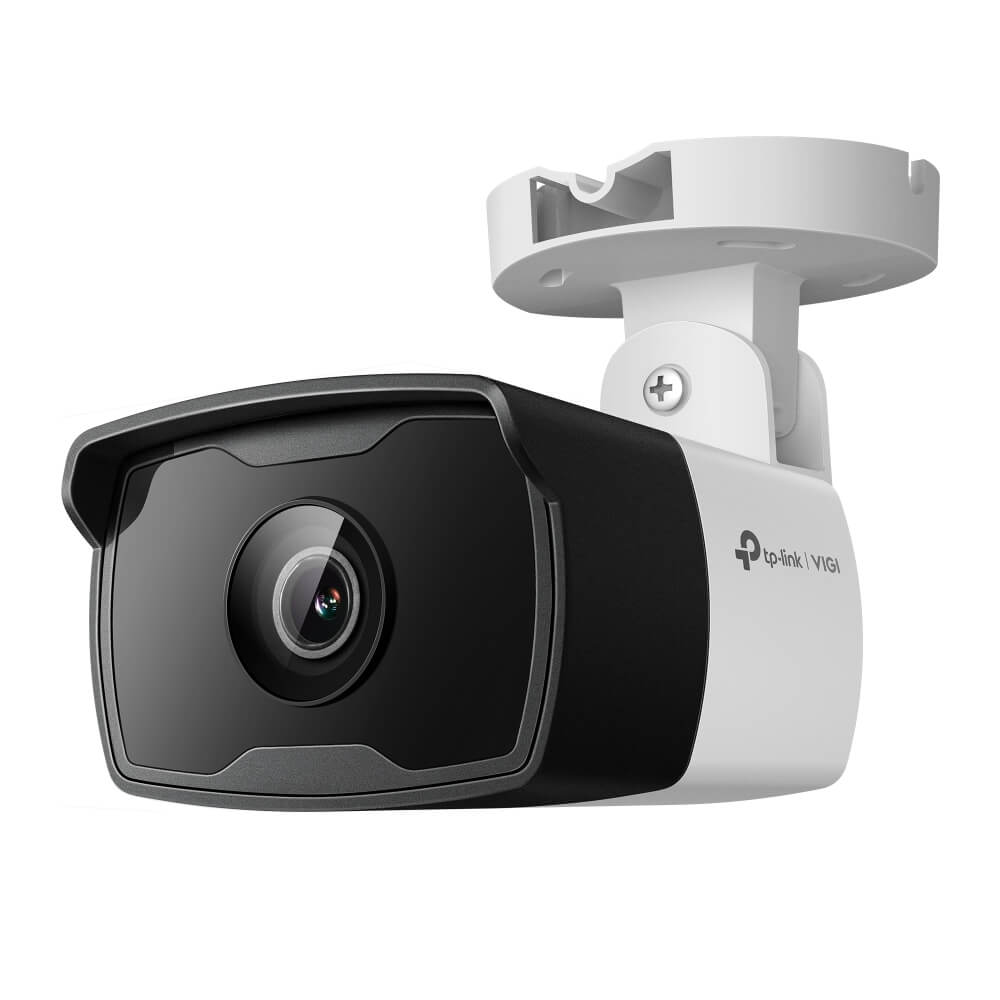

title: TP-Link VIGI C340I(4mm) VIGI 4MP Outdoor IR Bullet Network Camera
date: 2024-09-05T16:21:56Z
modified: 2026-05-22T18:01:52Z
permalink: "https://tech.co.za/product/tp-link-vigi-c340i4mm-vigi-4mp-outdoor-ir-bullet-network-camera/"
type: product
status: publish
excerpt: 64 Kbps to 4 Mbps, 4MP (2560 × 1440), 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0), DC Power Port, 1 RJ45 10/100M Self-Adaptive Ethernet Port
wpid: 502484
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Smart Home
  - Smart Security
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/VIGI_C330I2.846mm_1.0_10_large_20221019034340t.jpg"
featured_image_alt: TP-Link VIGI security camera
---

- 4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- Smart Video Enhancement: VIGI’ s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Waterproof: Reliable IP67 for stable outdoor performance.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

**CAMERA**
Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 s

Slow Shutter: Yes

Aperture:
– 2.8 mm: F2.2
– 4 mm: F2.2
– 6 mm: F2.0

Lens: 2.8 mm/ 4 mm/ 6 mm

Lens Mount: M12

Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Day/Night/Auto/Schedule-Switch

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP67

IR Working Distance: 30m

Viewing Angle:
– 2.8mm: 88.8°/48.9°/106.5°(H/V/D)
– 4mm: 75.1°/41.5°/88.7°(H/V/D)
– 6mm: 47.7°/26.5°/56°(H/V/D)

**LENS**
Type: Fixed Focal Lens

Focal Length: 2.8 mm/4 mm/6 mm

Aperture:
– 2.8 mm: F2. 2
– 4 mm: F2.0
– 6 mm: F2.0

FOV:
– 2.8 mm:
Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°
– 4 mm:
Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
– 6 mm:
Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
Lens Mount: M12

DORI Distance:
– 2.8 mm:
Detect: 60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)
– 4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
– 6 mm:
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)

**ANGLE ADJUSTMENT (MANUAL)**
Range:
– Pan: -90° to 90°
– Tilt: -90° to 90°

**ILLUMINATOR**
IR LED:
– Quantity: 2
– Range: 30m
– Wavelength: 850nm

White LED: N/A

Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

**VIDEO**
Max. Resolution: 2560 × 1440

Main Stream:
– Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:
– Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control: CBR, VBR

Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps

**IMAGE**
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Image Parameters Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

**AUDIO**
Audio Communication: N/A

Audio Input: N/A

Audio Output: N/A

Audio Compression: N/A

Audio Sampling Rate: N/A

Environment Noise Filtering: N/A

Audio Bit Rate: N/A

**NETWORK**
Protocol:
– TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
– RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF: Yes

API: ONVIF

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser:
– Google Chrome® 57 and above
– Firefox® 52 and above
– Safari® 11 and above
– Microsoft® Edge 91 and above

Cloud: Yes

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

**ALARM AND EVENT MANAGEMENT**
Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage: Message Push

Linkage Method: N/A

Output Notification: Message Push

**INTERFACES**
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm: N/A

Reset Button: N/A

Power: DC Power Port

Button: –

Video Output: –

On-board Storage: N/A

Built-in Microphone: N/A

Built-in Speaker: N/A

Audio: N/A

**GENERAL**
Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Operating Humidity: 95% or Less (Non-Condensing)

Storage Humidity: 95% or Less (Non-
Condensing)

Package Contents:
– VIGI Network Camera
– Quick Start Guide
– Waterproof Cable Attachments
– Mounting Accessories

Dimensions( H X W X D ): 174 × 74 × 71 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Requirements

Net Weight: 0.2 Kg

Gross Weight: 0.35 Kg

Power Consumption:
– 12V DC: Max 5W
– PoE: Class 0

Power Supply:
– 12V DC ± 5%, 5.5mm Coaxial Power Plug
– PoE (802.3af/at, class 0)

Protection: IP67

Product Dimensions (L x W x H): 73× 174 × 71 mm

Certifications: CE/BSMI/VCCI/ONVIF

**VIDEO/IMAGE**
Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

Frame Rate & Resolutions:
– Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640×480,352×288, 320×240

Max. Resolution: 4MP (2560 × 1440)

Video Streaming:
– Main Stream
– Sub-Stream

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bit Rate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Auto/Schedule

**SMART FEATURE-SET**
Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method: Trigger Notification: ONVIF, HTTPS

Region of Interest: 1 Region
