- 360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots.
- Person Detection: Smart AI identifies a person accurately, sending instant notifications through the Tapo app.
- 1080P Full HD: Capture more details to make every moment shine.
- Color Night Vision: Capture virant color night vision up to 30 meters away.
- IP65 Weatherproof: Tapo C500 is protected against jets of water and dust.
- Sound and Light Alarm: Activate the integrated siren along with the spotlight alarm to deter unwelcomed intruders.
- Multiple Installations: Install the camera on the wall, eave, or pole1. Monitor the area where you care the most.
- Local and Cloud Storage: Save all your important moments to a microSD card2 (up to 512GB) or subscribe to Tapo Care3 for cloud service.
CAMERA
Image Sensor: 1/3″ Progressive Scan CMOS Sensor
Lens: Focal Length: 3.89 mm
Aperture: F2.0
Field of View: 85.5°(Diagonal), 73.5°(Horizontal), 41°(Vertical)
Motion Range: Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage)
Night Vision: 850 nm IR LED (98 ft / 29.9 m), color night vision
Interface & Button:
– 1× RESET Button

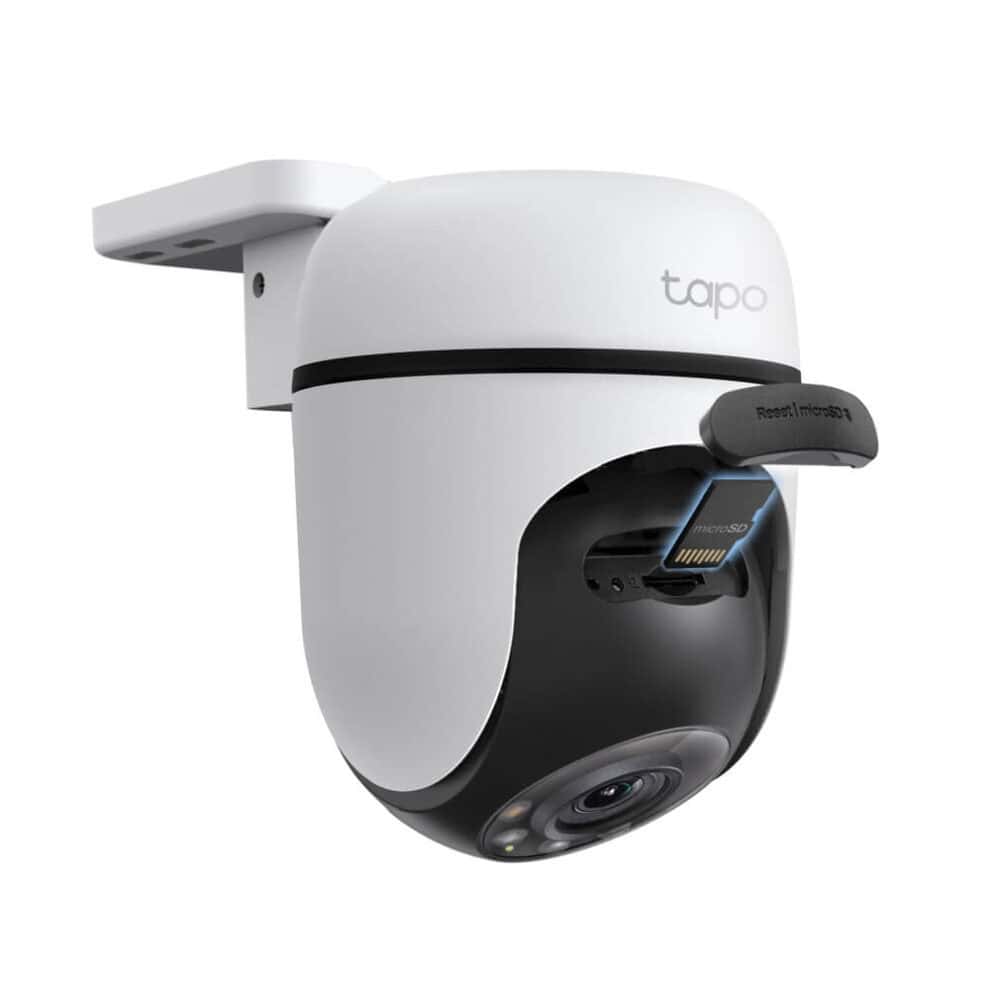

– 1× MicroSD Card Slot
View Range: 360° horizontal and 130° vertical
Resolution: 1080p Full HD(1920 x 1080 px)
VIDEO & AUDIO
Maximum Resolution: 1920 × 1080 px
Frame Rate: 30 fps
Video Compression: H.264
Live View: Yes
Image Enhancement:
– 3DNR
– WDR
Audio Input & Output:Built-in Microphone and Speaker
Audio Communication: o-Way Audio with Noise Cancellation
Siren Volume: 90 dB (Level measured at 4-inch/10-cm distance)
STORAGE
– Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
– General Information about using MicroSD Cards >
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
VIDEO
Frame Rate: 15 fps
Video Streaming: 1080p
Video Compression: H.264
DETECTION AND NOTIFICATIONS
AI Detection:
– Motion detection
– Person detection
– Tamper detection
Activity Zones: Yes
Output Notification:
– System Notification
– System Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication: 2-way audio
Audio Input & Output: Built-in microphone and speaker
NETWORK
Network Connectivity: Connect via Wi-Fi
Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Wireless Security: WPA/WPA2-PSK
RTSP: Yes
ONVIF: Yes
Standards and Protocols: IEEE 802.11b/g/n, 2.4 GHz
Security: 128 bit AES encryption with SSL/TLS
Frequency: 2.4 GHz
SECURITY
Security:
– On-Device Machine Learning
– 128-bit AES Encryption with SSL/TLS
– WPA/WPA2-PSK
POWER
Power Source: 9V DC Power Adapter
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 9.0V, 0.85A (DC Power)
GENERAL
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP65
System Requirements: Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options:
– Ceiling-Mounted
– Wall-Mounted
– Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature : -30℃~60℃
Storage Temperature: -40℃~60℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 0~90% RH, Non-condensing
Dimensions: 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
Package Contents:
– Tapo C500 Camera
– Power Adapter
– Mounting Anchors
– Mounting Screws
– Bracket Screws
– Mounting Template
– Mounting Bracket
– Waterproof Seal
– Quick Start Guide
Certifications: CE, FCC, RoHS, RCM
ACTIVITY NOTIFICATIONS
Input Trigger: Motion detection, Person detection
Output Notification: Notification,Snapshot(Tapocare), Clips(Tapo care).
ENVIRONMENT
Operating Temperature : -30℃~60℃(-22°F ~140 °F )
Storage Temperature: -40℃~60℃ (-40°F~140°F)
Operating Humidity: 10%~90%RH, Non-condensing
Storage Humidity: 5%~90%RH, Non-condensing
PACKAGE CONTENTS
– Package Contents:
– Tapo C500 Camera
– DC Power Adapter
– Anchors and Screws
– Mounting Template
– Waterproof Seal
– Quick Start Guide
HARDWARE
Button: RESET button
Indicator LED: System LED
Adapter Input: 100-240V, 50/60Hz
Adapter Output: 12.0V/1.0A
Dimensions (W x D x H): 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
