- HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
- One Touch Super Range Extension – Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- Play&Play with no configuration required
HARDWARE FEATURES
Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n

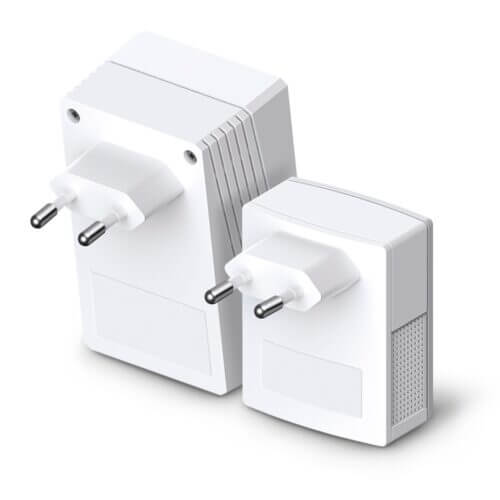

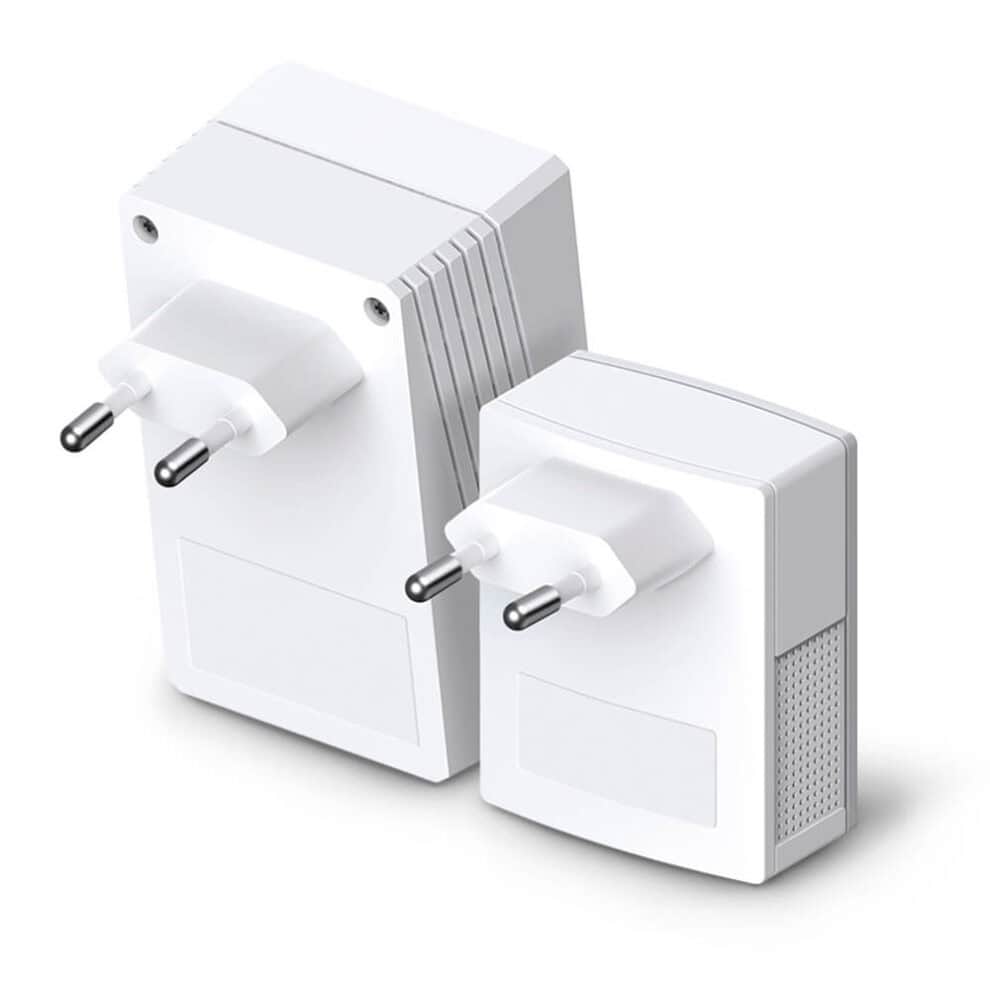

Plug Type: EU, AU

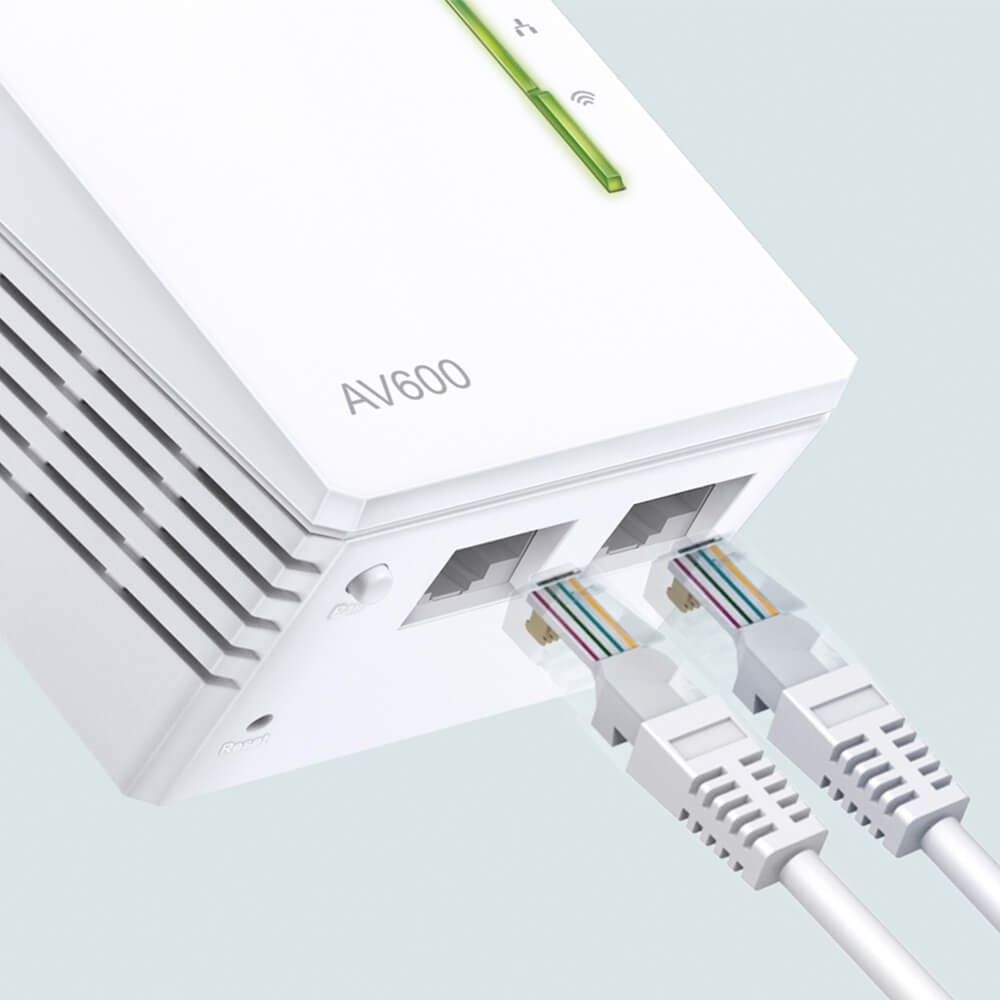

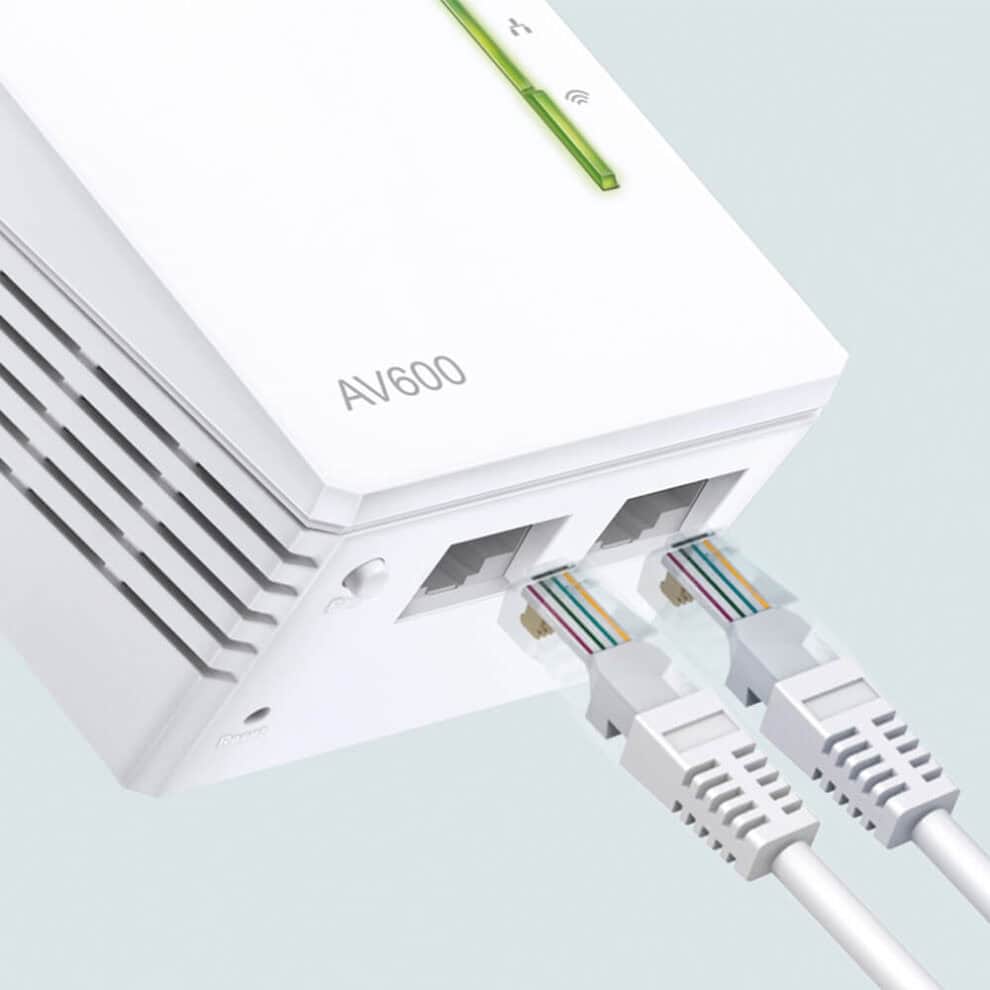

Interface: 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption:
– TL-WPA4220: Maximum: 5.6W, Typical: 5.2W
– TL-PA4010: Maximum: 2.6W, Typical: 2.3W
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ):
– TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
– TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range: 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate:
– 11n: Up to 300Mbps(dynamic)
– 11g: Up to 54Mbps(dynamic)
– 11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
– 270M: -68dBm@10% PER
– 130M: -68dBm@10% PER
– 108M: -68dBm@10% PER
– 54M: -68dBm@10% PER
– 11M: -85dBm@8% PER
– 6M: -88dBm@10% PER
– 1M: -90dBm@8% PER
Transmit Power:
– CE:<20dBm(2.4GHz)
– FCC:<30dBm
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
SOFTWARE FEATURES
Modulation Technology: OFDM (PLC)
Encryption:
– Powerline Security: 128-bit AES
– Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification: CE, FCC, RoHS
Package Contents:

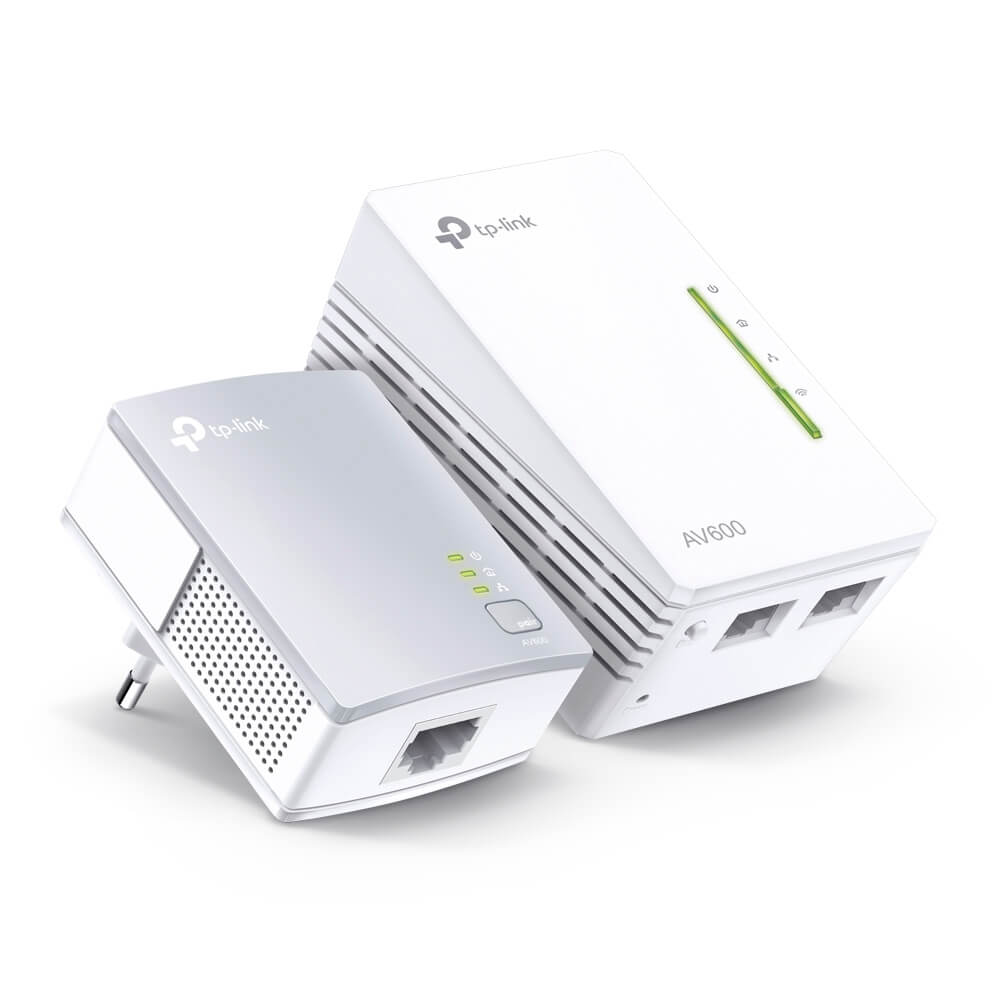

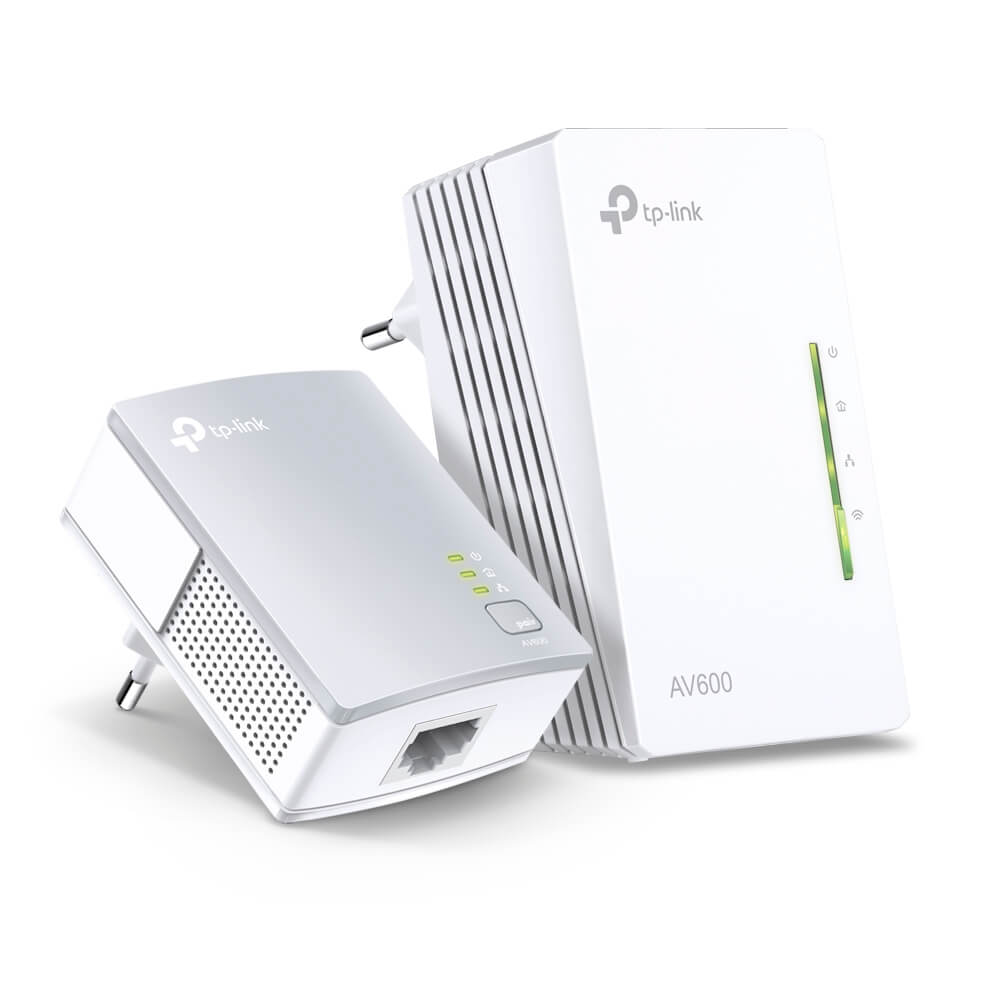

– Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
– 2 * 6.5 ft. (2 m) Ethernet cable (RJ45)
– Quick Installation Guide
System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environment:
– Operating Temperature: 0°C~40°C (32°F ~104°F)
– Storage Temperature: -40°C~70°C (-40°F ~158°F)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
