- One Touch Super Range Extension – Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
HARDWARE FEATURES
Transmission Speeds:
Powerline: up to 600 Mbps
Ethernet: 10/100 Mbps
Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
Plug Type: EU, UK, US, AR
Interface: 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption:
– Maximum: 7.608W (220V/50Hz)
– Typical: 7.216W (220V/50Hz)
– Standby: 4.610W (220V/50Hz)
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ):
– TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
– TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range: 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate:
– 11n: Up to 300Mbps(dynamic)
- One Touch Super Range Extension – Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
HARDWARE FEATURES
Transmission Speeds:
Powerline: up to 600 Mbps
Ethernet: 10/100 Mbps
Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
Plug Type: EU, UK, US, AR
Interface: 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption:
– Maximum: 7.608W (220V/50Hz)
– Typical: 7.216W (220V/50Hz)
– Standby: 4.610W (220V/50Hz)
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ):
– TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
– TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range: 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate:
– 11n: Up to 300Mbps(dynamic)
– 11g: Up to 54Mbps(dynamic)
– 11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
– 270M: -68dBm@10% PER
– 130M: -68dBm@10% PER
– 108M: -68dBm@10% PER
– 54M: -68dBm@10% PER
– 11M: -85dBm@8% PER
– 6M: -88dBm@10% PER
– 1M: -90dBm@8% PER
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power:
– CE:<20dBm(2.4GHz)
– FCC:<30dBm
SOFTWARE FEATURES
Management: tpPLC-Scan the QR code to download TP-Link tpPLC App. Or download new tpPLC Utility on PCs: www.tp-link.com.
Modulation Technology: OFDM (PLC)
Encryption:
– Powerline Security: 128-bit AES
– Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification: CE, RoHS
Package Contents:

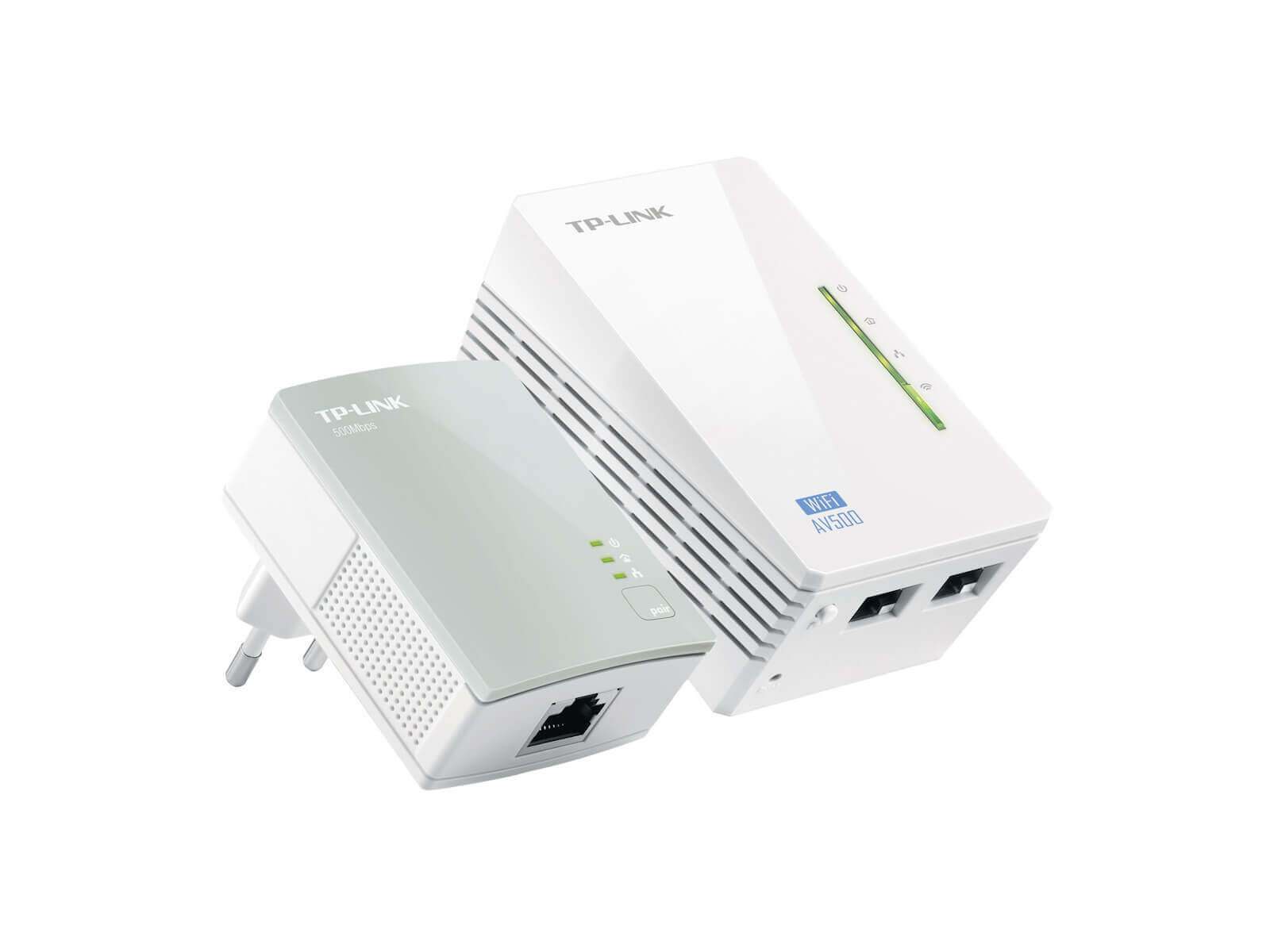

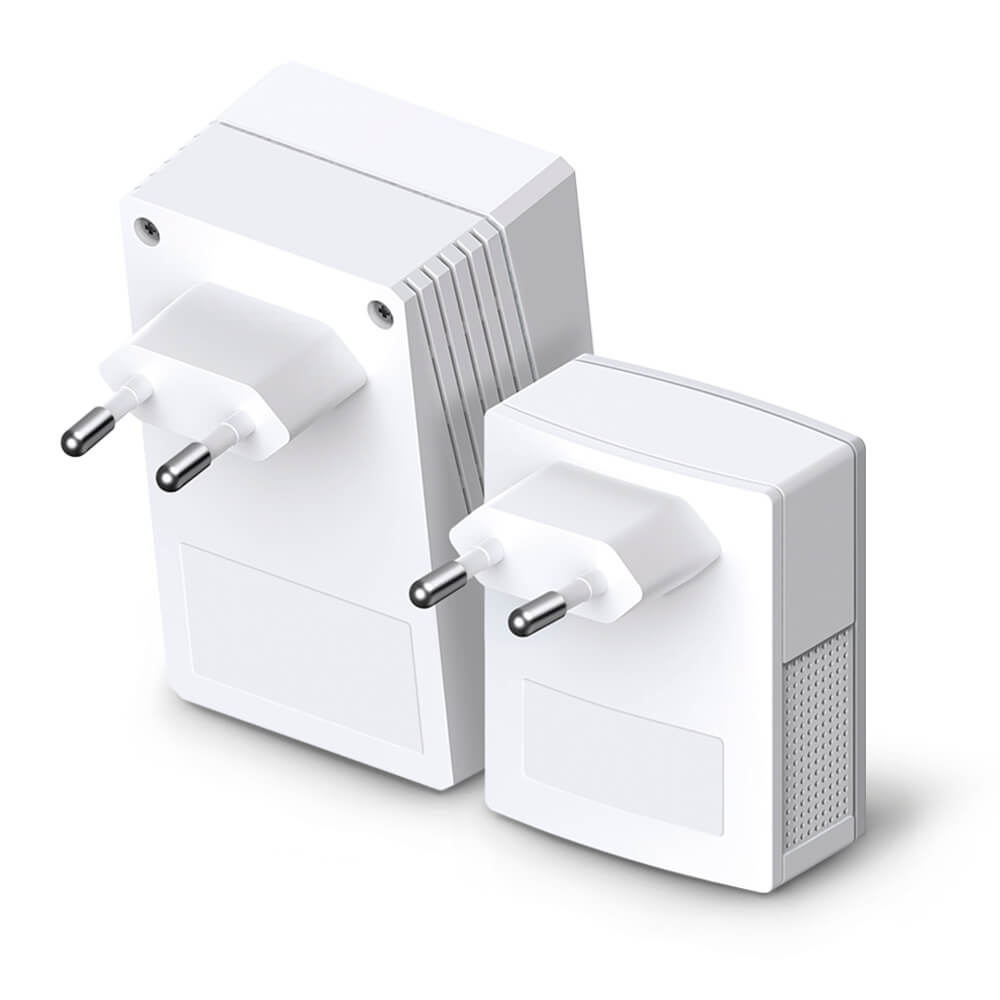

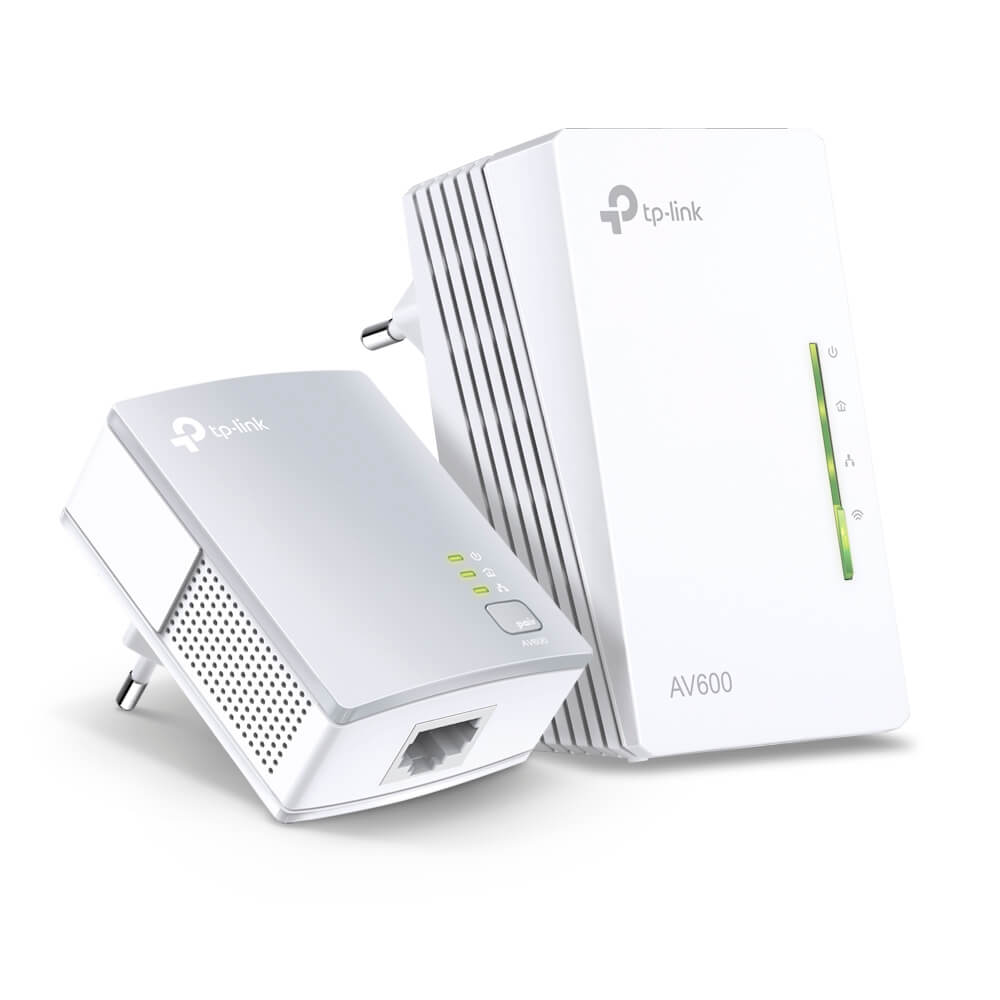

– AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010
– Ethernet Cable × 2
– Quick Installation Guide
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment:
– Operating Temperature: 0°C~40°C (32°F ~104°F)
– Storage Temperature: -40°C~70°C (-40°F ~158°F)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
