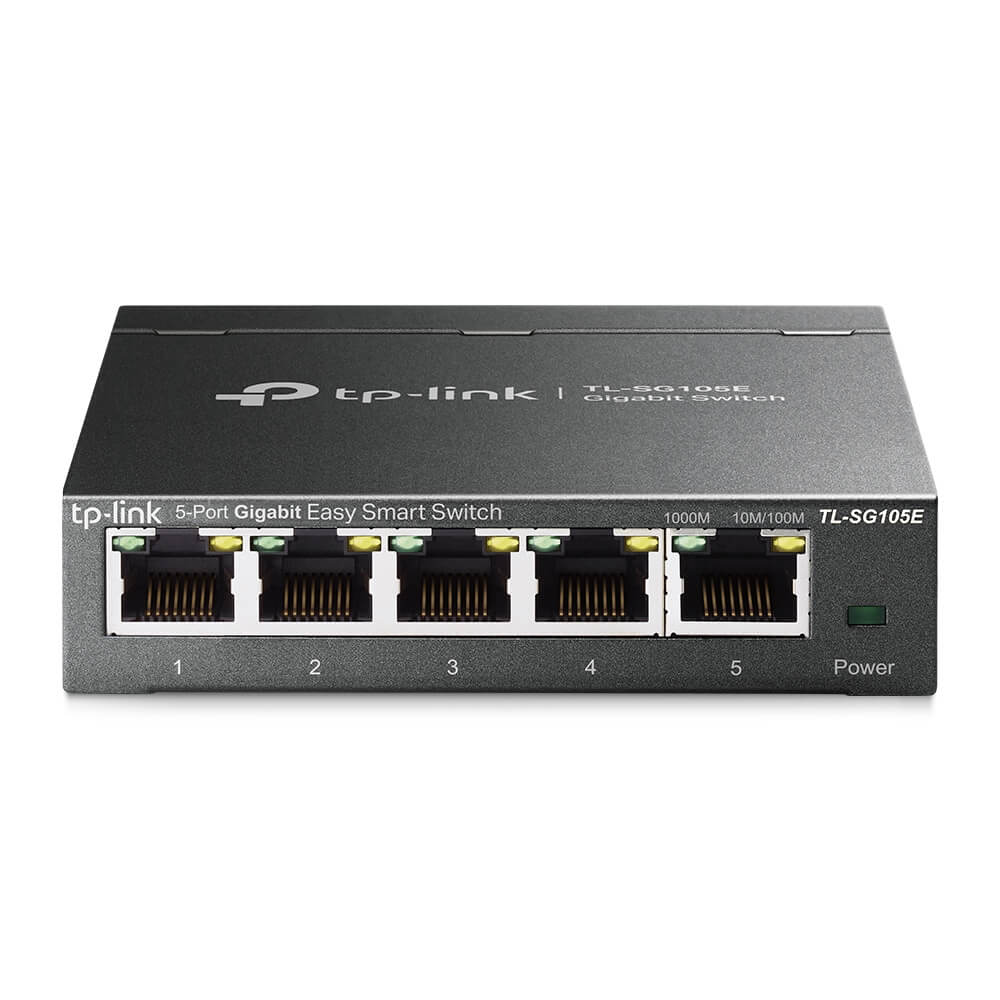

- 5 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
HARDWARE FEATURES
Standards and Protocols:
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
– 5 10/100/1000 Mbps RJ45 Ports
– AUTO Negotiation/AUTO MDI/MDIX
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm)
Max Power Consumption: 2.82 W (220 V/ 50 Hz)
Max Heat Dissipation: 9.62 BTU/h
PERFORMANCE
Packet Forwarding Rate: 7.4 Mpps
MAC Address Table: 2 K
Packet Buffer Memory: 1 Mb
Jumbo Frame: 16 KB
