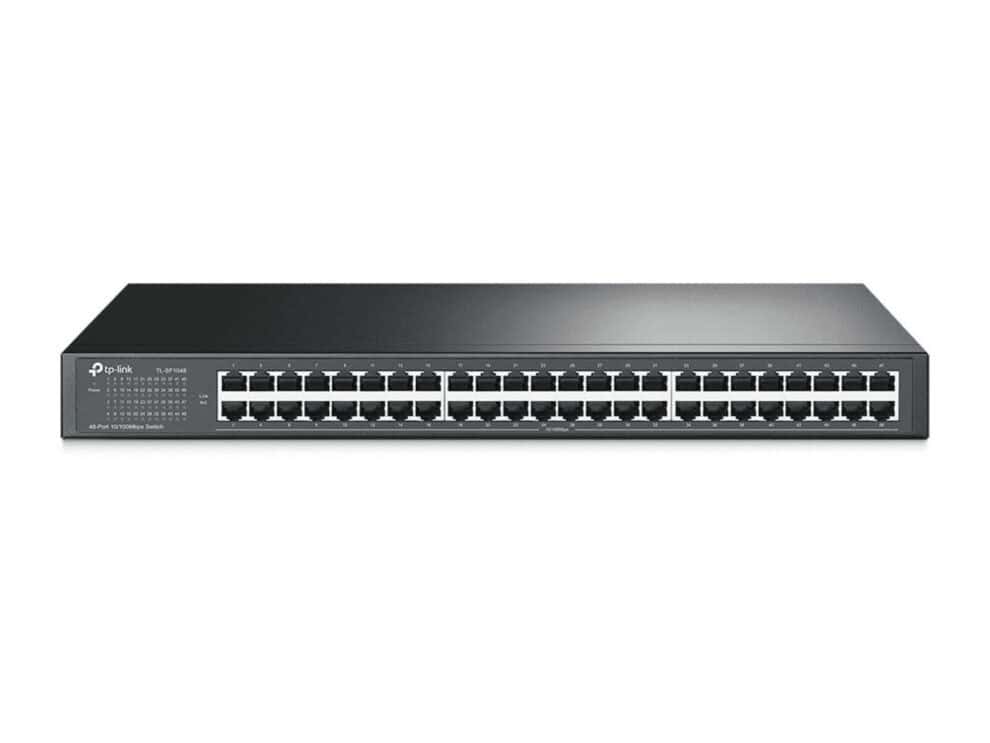

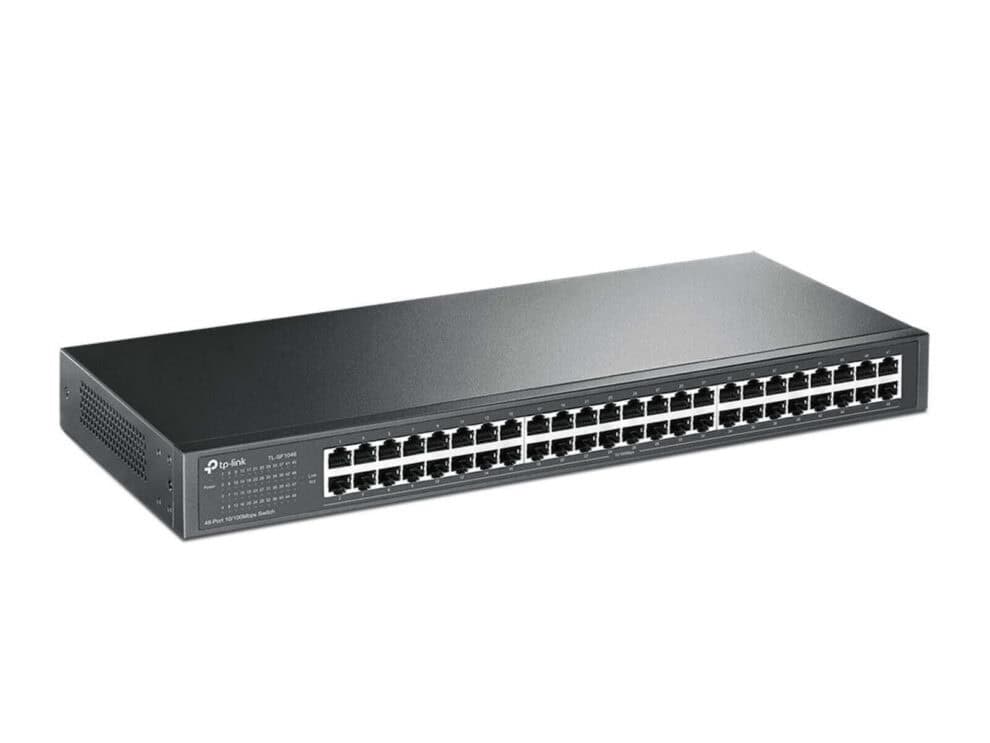

The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption
- 48 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 50%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface: 48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: No

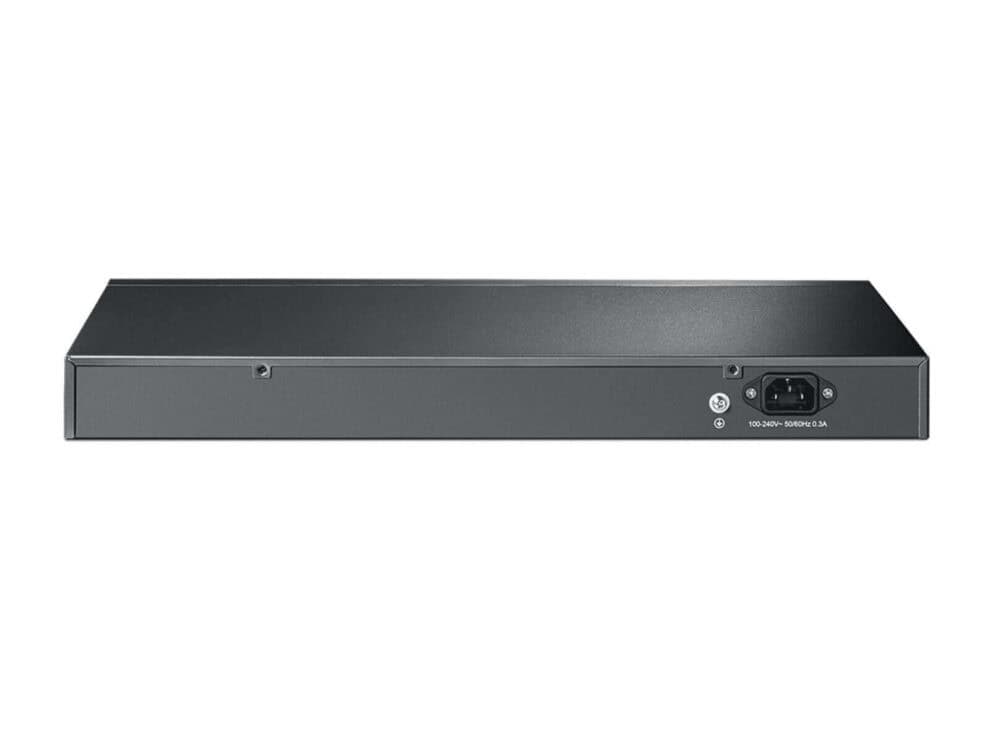

Power Supply: 100-240VAC, 50/60Hz
Dimensions ( W x D x H ): 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting: Rack Mountable
Max Power Consumption: 9.9W(220V/50Hz)
Max Heat Dissipation: 33.78BTU/h
PERFORMANCE
Switching Capacity: 9.6Gbps
Packet Forwarding Rate: 7.14Mpps
MAC Address Table: 8K
Advanced Functions:
– Green Technology
– 802.3X Flow Control
Green Technology: Innovative energy-efficient technology saves power up to 50%
Transfer Method: Store-and-Forward
