- Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection

**HARDWARE FEATURES**

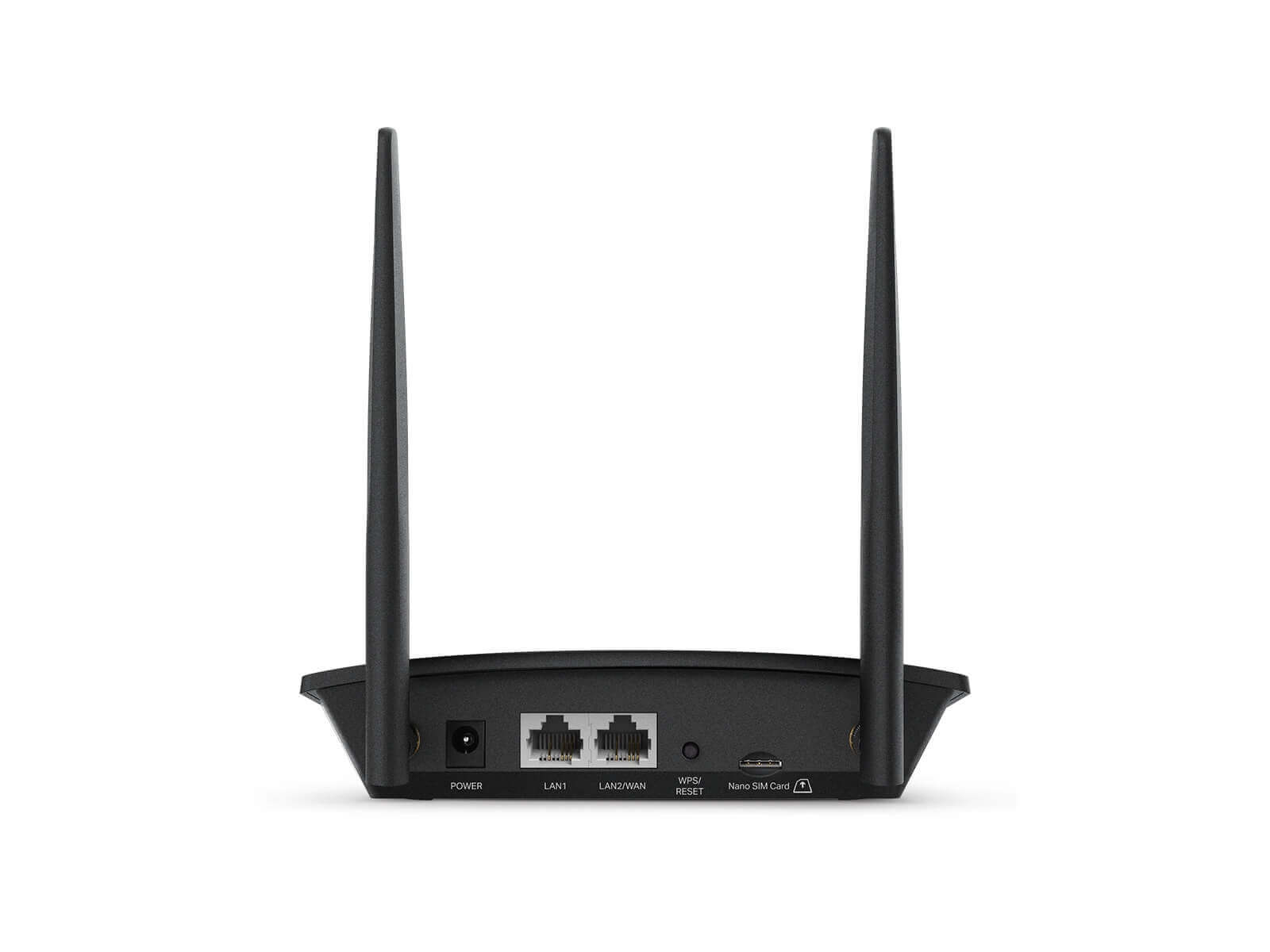

Interface: 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot
Button: WPS/Reset Button

External Power Supply: 9V/0.85A

Dimensions ( W x D x H ): 6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna: 2 Detachable External 4G LTE Antennas

**WIRELESS FEATURES**
Wireless Standards: IEEE 802.11b/g/n

Frequency: 2.4 GHz

Signal Rate: 300 Mbps

Reception Sensitivity:
– 11g 54M: -74 dBm
– 11n HT20: -71 dBm
– 11n HT40: -68 dBm

Transmit Power: < 20 dBm (2.4 GHz)

Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover: Yes

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type:
– 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
– TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
– 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

**SOFTWARE FEATURES**
Security: IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes: 3G/4G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management:Local Management, Remote Management
DHCP: Server, DHCP Client List, Address Reservation
Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic: DNS DynDns, NO-IP
Protocols IPv4, IPv6
Guest Network: 2.4 GHz Guest Network
Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
