- High Speed WiFi – Up to 600 Mbps speeds with 200 Mbps on 2.4 GHz and 433 Mbps on 5 GHz. Upgrades your devices to higher AC WiFi speeds*
- Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity, upgrades your devices to work with the latest dual band WiFi router for faster speed and extended range

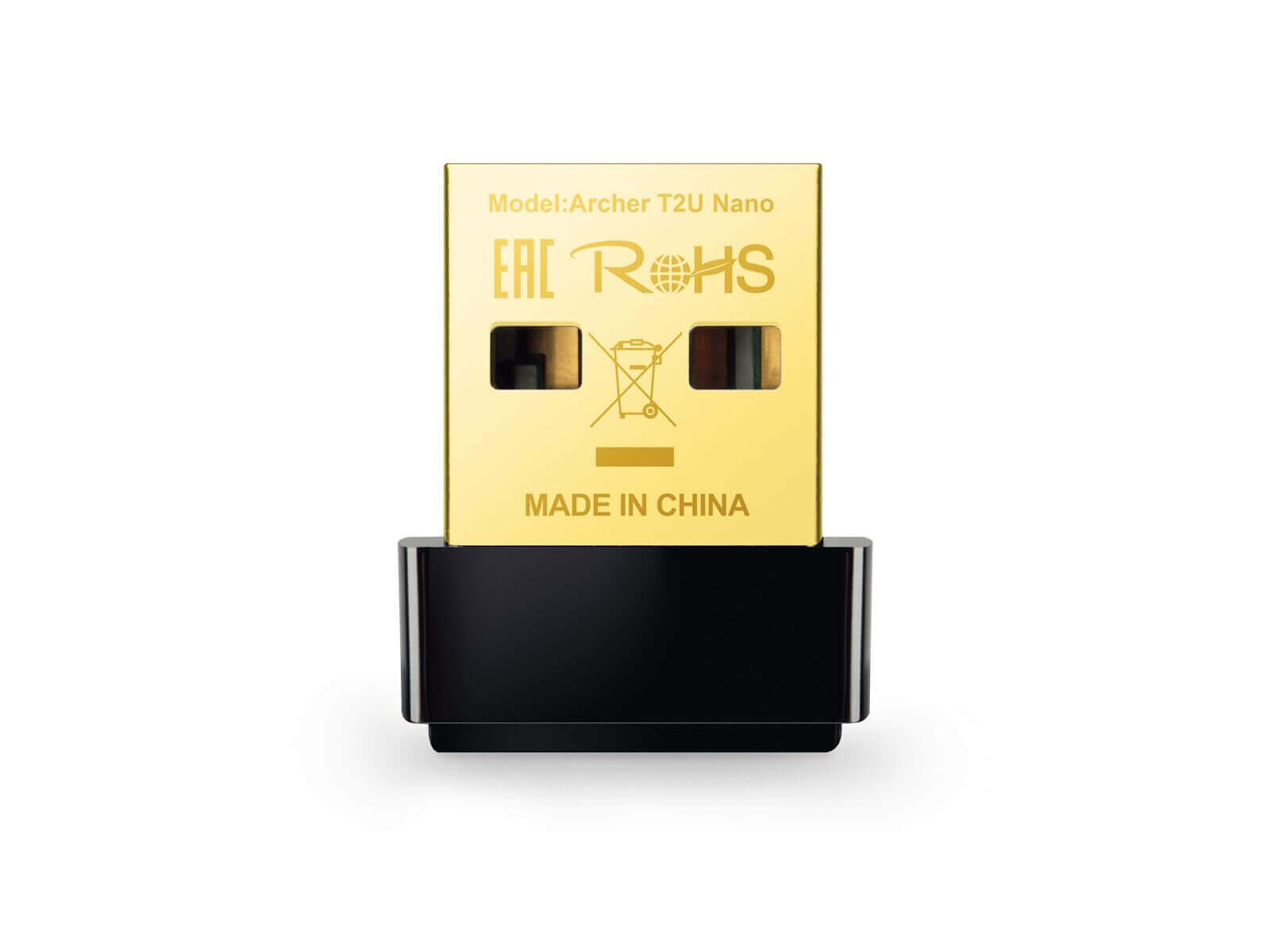

- Nano Design – Small, unobtrusive design allows you to plug it in and leave it in
- Operating System – Supports Windows 10/8.1/8/7/XP and Mac OS X
- Advanced Security – Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
HARDWARE FEATURES
Interface: USB 2.0
Dimensions ( W x D x H ): 15*7.1*18.6mm
Antenna Type: Omni Directional
WIRELESS FEATURES
Wireless Standards:
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency:
5GHz
2.4GHz
Signal Rate:
5GHz:
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 200Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
5GHz:
11a 6Mbps: -90dBm
11a 54Mbps: -73dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -70dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -67dBm
11ac VHT80 MCS0: -82dBm
11ac VHT80 MCS9: -56dBm
2.4GHz:
11b 1Mbps: -96dBm
11b 11Mbps: -88dBm
11g 6Mbps: -89dBm
11g 54Mbps: -74dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -72dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -66dBm
Transmit Power : <20dBm (EIRP)
Wireless Modes: Ad-Hoc / Infrastructure mode
Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
