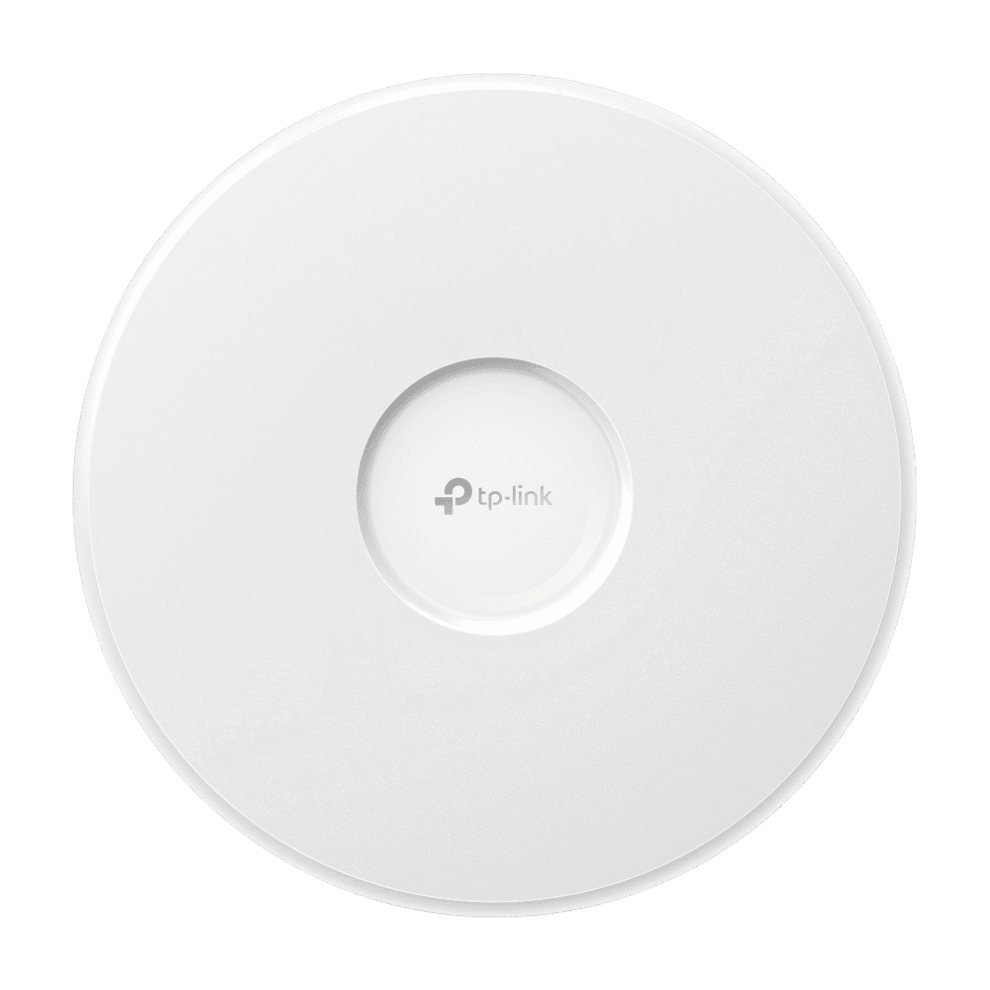

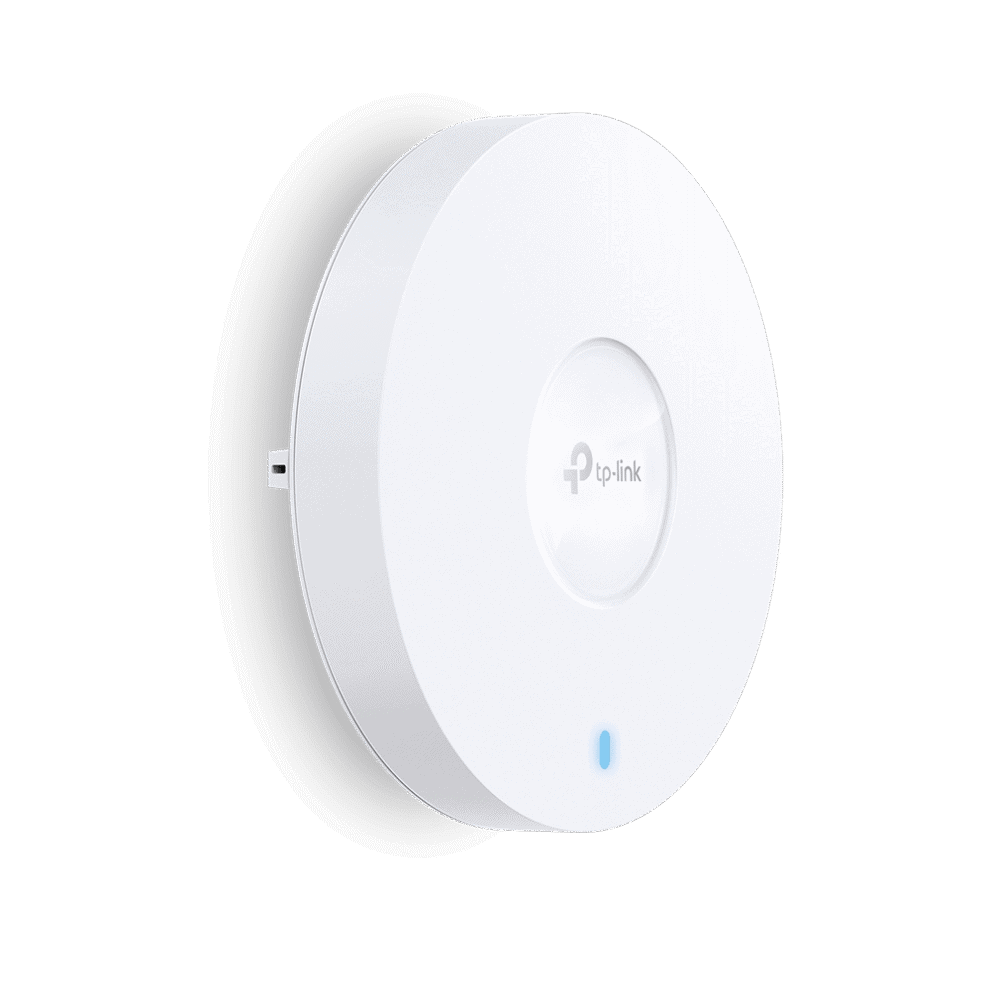

title: TP-Link EAP690E HD AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point
date: 2024-07-02T13:27:26Z
modified: 2026-05-05T16:46:07Z
permalink: "https://tech.co.za/product/tp-link-eap690e-hd-axe11000-ceiling-mount-quad-band-wifi-6e-access-point/"
type: product
status: publish
excerpt: AXE11000, 1x 10Gbps Ethernet Port, 802.3bt PoE or 12V/4.5A DC, Ceiling / Wall mouting
wpid: 493657
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Access Points
  - Networking
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/EAP783_UN_1.0_large_20231207060345s.png"
---

- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds.†
- High-Density Connectivity up to 2000 Clients\*: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, and BSS Coloring.‡
- 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.
- Smart Antennas: Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.
- PoE++ Support: Supports Power over Ethernet (802.3bt) for convenient deployment and installation.
- Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.

**HARDWARE FEATURES**
Interface: 1x 10Gbps Ethernet Port

Button: Reset

Power Supply: 802.3bt PoE or 12V/4.5A DC

Power Consumption:
Support Smart Power Consumption Management
– EU:
44.9 W (802.3bt, full functionality);
40.6 W (12/4.5A, full functionality);
25.5 W (802.3at, 5GHz-2 and 6 GHz off);
12.95 W (802.3af, radio off, only main chip and LAN working)
– US:
50.5 W (802.3bt, full functionality);
44.2 W (12/4.5A, full functionality);
25.5 W (802.3at, 5GHz-2 and 6 GHz off);
12.95 W (802.3af, radio off, only main chip and LAN working)

Dimensions ( W x D x H ): 11 x 11 x 2.3 in (280 x 280 x 59.1 mm)

Antenna Type:
– 2.4 GHz: 4× 4.0 dBi
– 5 GHz-1: 4× 5.0 dBi (Smart Antennas)
– 5 GHz\_2: 4× 5.5 dBi(Smart Antennas)
– 6 GHz: 4× 5.0 dBi

Bluetooth: Yes

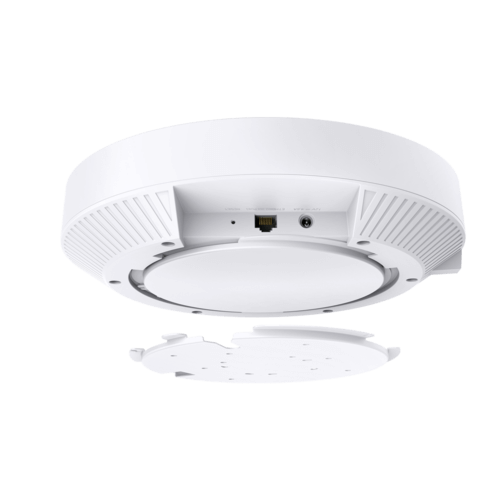

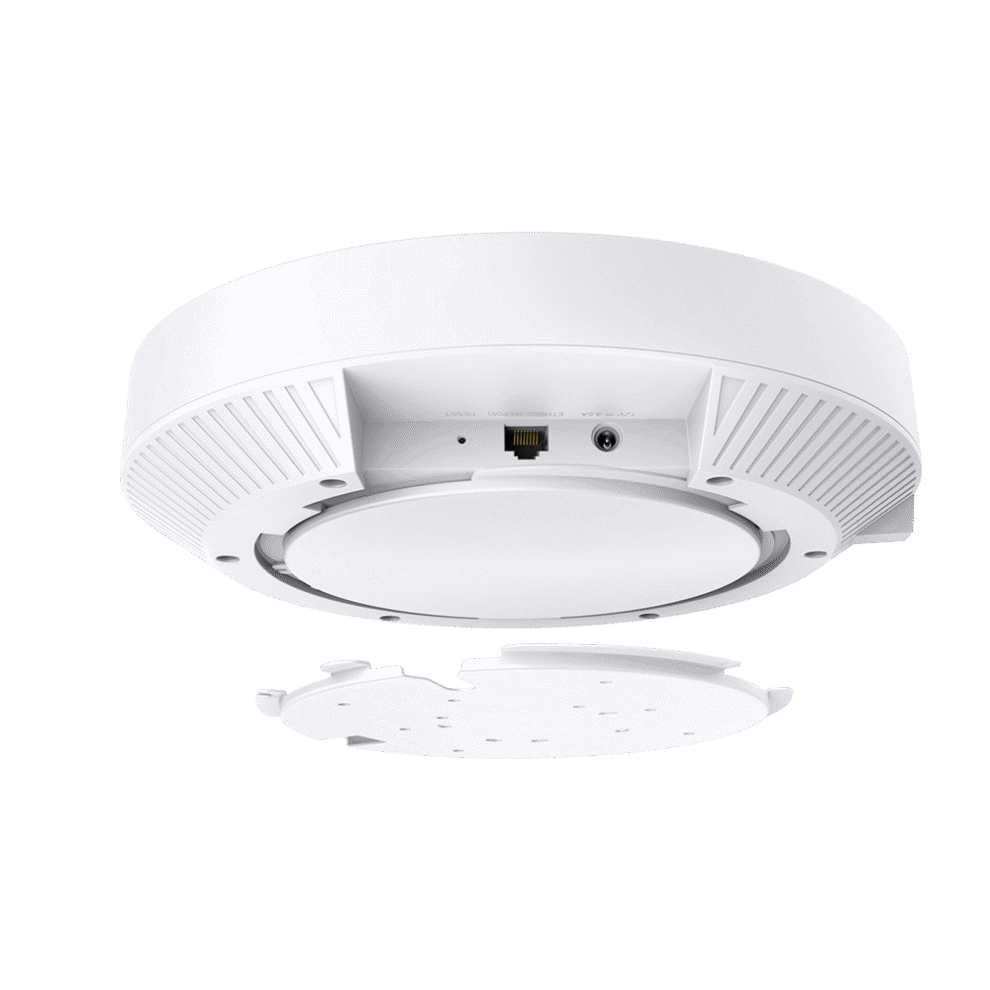

Mounting: Ceiling / Wall mouting (Kits included)
