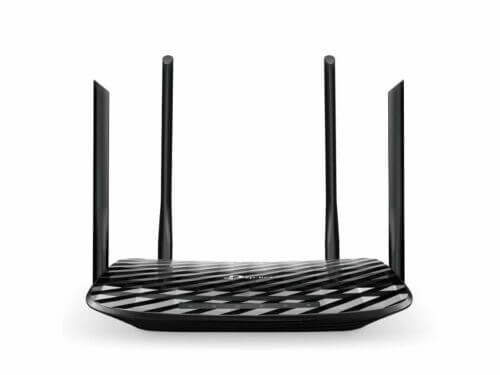

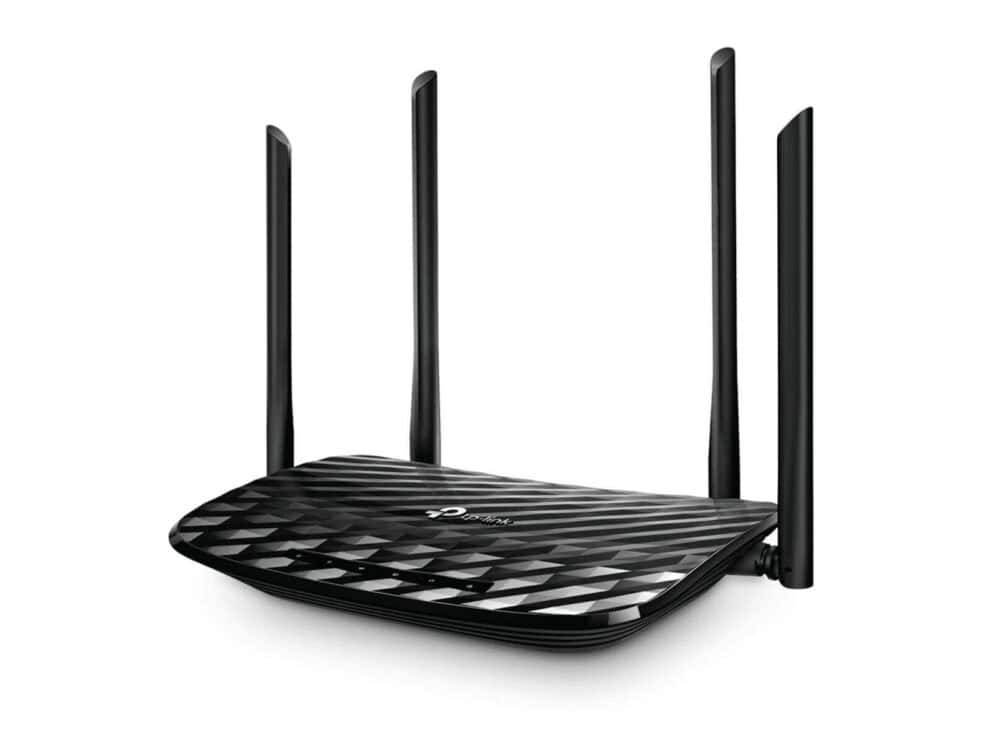

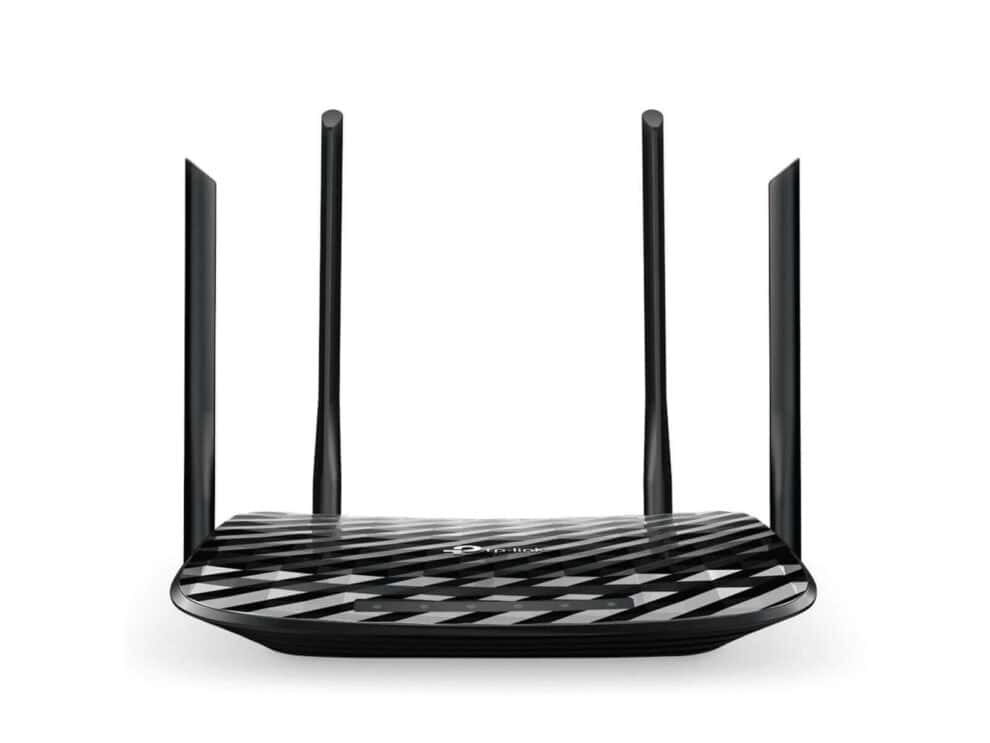

Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.With a powerful chipset, the Archer C6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.
Supports 802.11ac standard
Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
Easy network management at your fingertips with TP-Link Tether
MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
Beamforming technology delivers wider wireless coverage
Supports Access Point mode to create a new Wi-Fi access point
WIRELESS
Standards: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity: MediumDual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes: Router Mode
Access Point Mode
HARDWARE
Processor: Qualcomm CPU

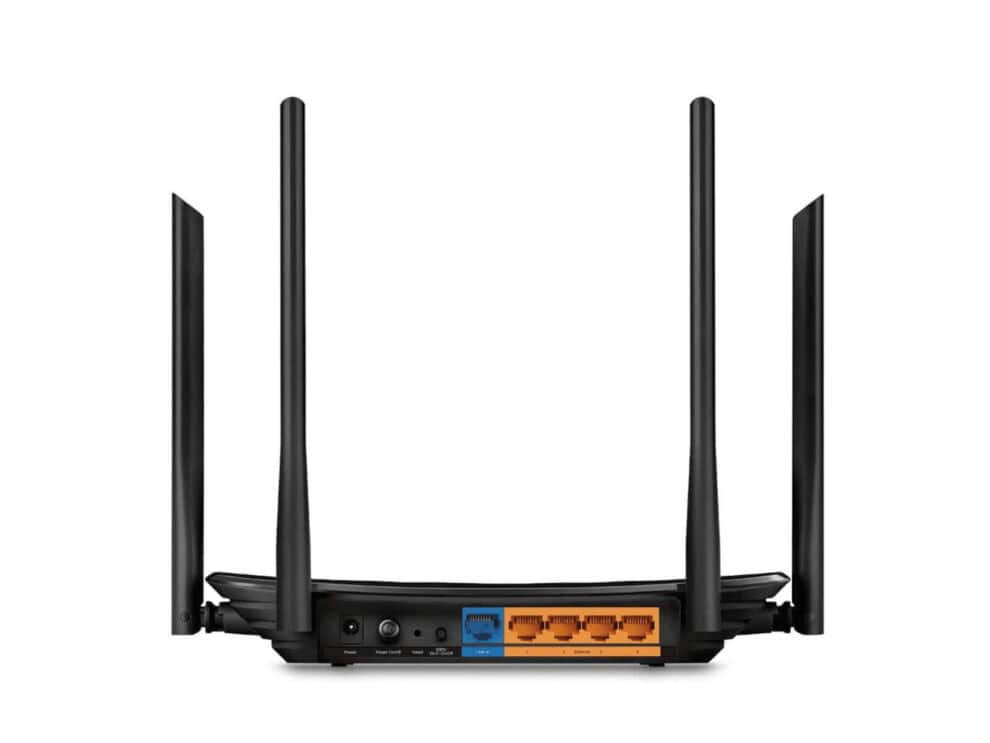

Ethernet Ports: 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons: WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power: 12 V ⎓ 1 A
SECURITY
WiFi Encryption: EU Version:
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
US, TW Version:
WPA
WPA2
WPA3
Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network: 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server: OpenVPN
PPTP
SOFTWARE
Protocols: IPv4
IPv6
OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls: URL Filtering
Time Controls
WAN Types: Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service: QoS by Device
NAT Forwarding: Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV: IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP: Address Reservation
DHCP Client List
Server
DDNS: NO-IP
DynDNS
Management: Tether App
Webpage
