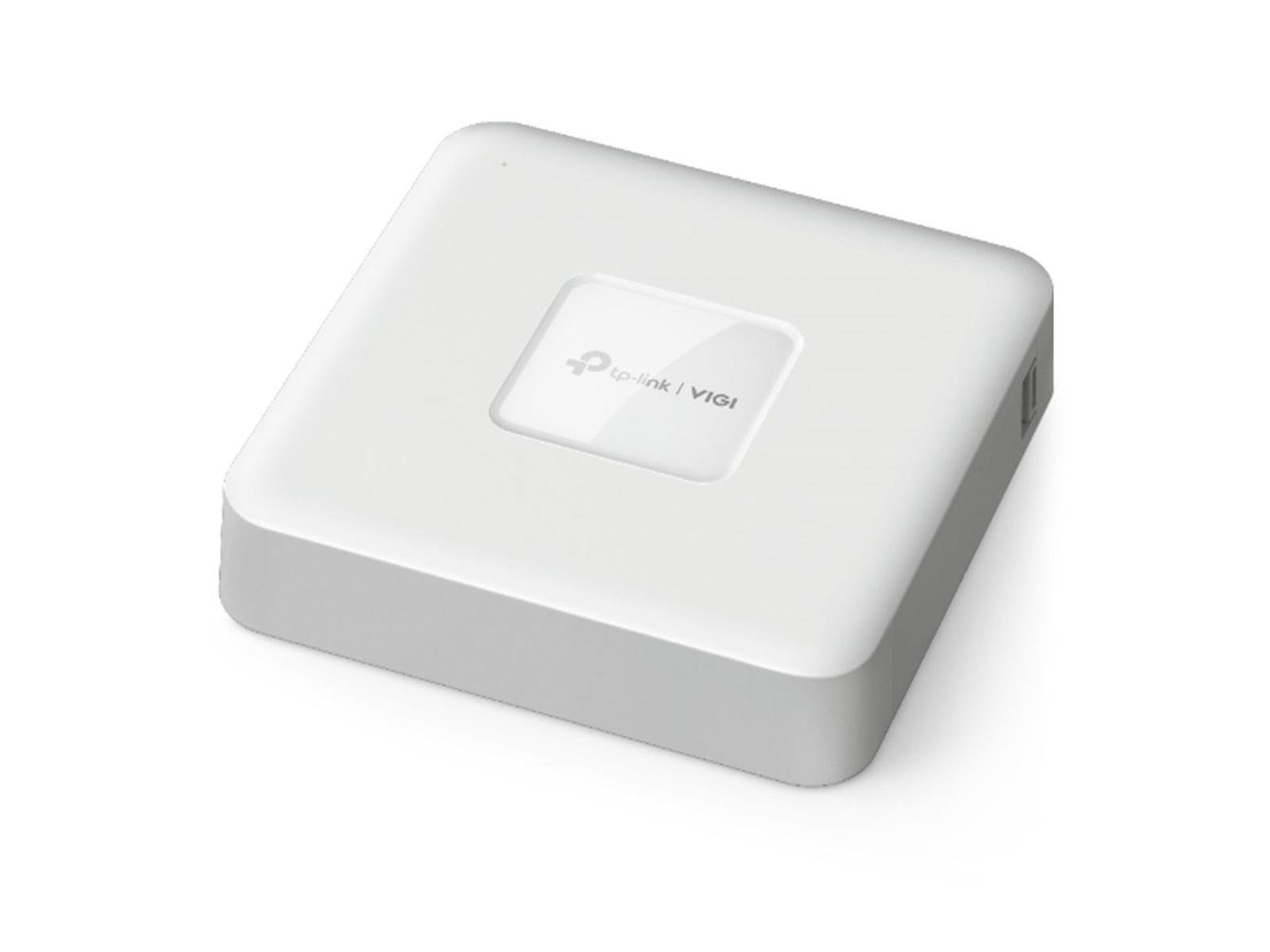

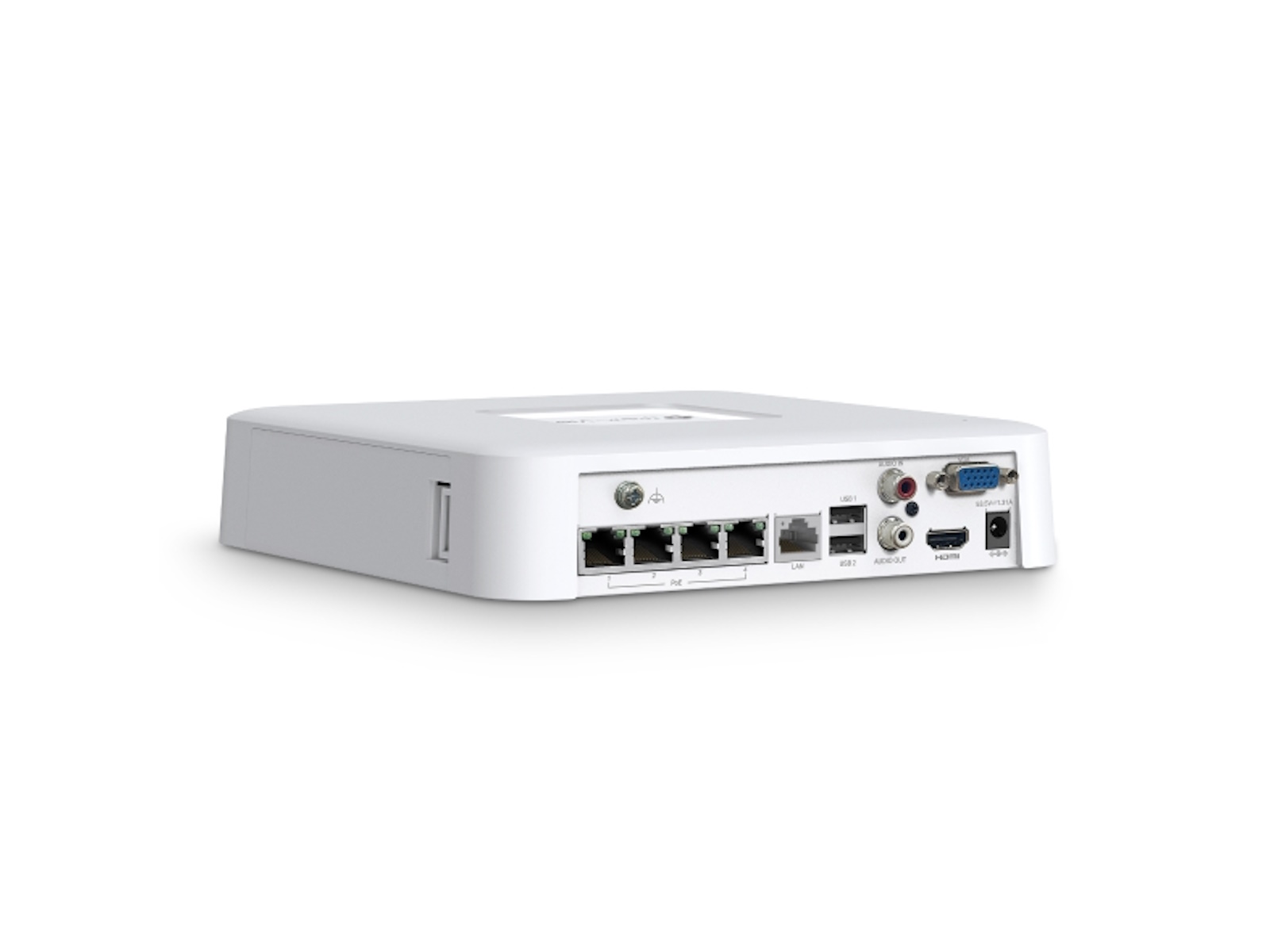

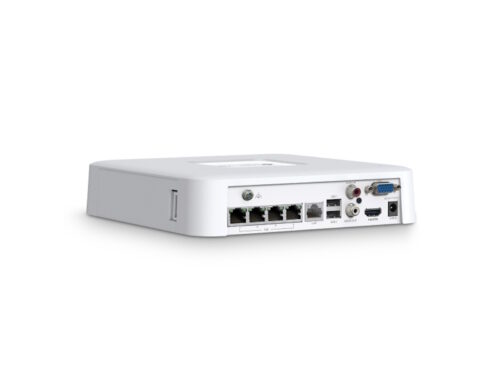

title: TP-Link 4 Channel PoE Network Video Recorder
date: 2024-09-05T16:02:25Z
modified: 2026-05-22T03:01:51Z
permalink: "https://tech.co.za/product/tp-link-4-channel-poe-network-video-recorder/"
type: product
status: publish
excerpt: 4CH, PoE, RJ-45 10/100 Mbps, 2x USB 2.0, 200.3 x 200.3 x 43 mm
wpid: 502475
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - CCTV
  - Networking
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/Video-Recorder-1.jpg"
---

**Features**

- **4K HDMI Video Output & 16MP Decoding Capacity:**  Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
- **Simplified Deployment with PoE+:** Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- **Simple HDD Installation:** Install and remove the HDD manually with easy side access.
- **4-Channel Simultaneous Playback** **:** Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- **H.265+:** Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- **ONVIF Ensures Compatibility:** Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- **Plug & Play:** Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- **24/7 Continuous Recording:** Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- **Remote Monitoring:** The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- **Built-In Speaker:** Enjoy real-time audio output without needing peripherals for greater convenience.
- **Flexible Installation:** Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.

**Technical Specification**

**Video Input:** 4-Channel IP Video Input, up to 8MP Resolution

**Incoming Bandwith:** 80 Mbps

**Outgoing Bandwidth:** 60 Mbps

**Network Interface:** 1x RJ-45 10/100Mbps Self-Adaptive Ethernet Interface

**USB Interface:** 2x USB 2.0

**SATA Interface:** 1x

**Capacity:** Up to 10 TB

**PoE+ Standard:** 802.3af/at
**PoE+ Ports:** Ports 1-4 (4x 10/100Mbps PoE+ ports)
**PoE+ Budget:** 53 W

**External Power Supply:** 53.5V DC/1.31A

**Package Contents**

- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Quick Installation Guide
