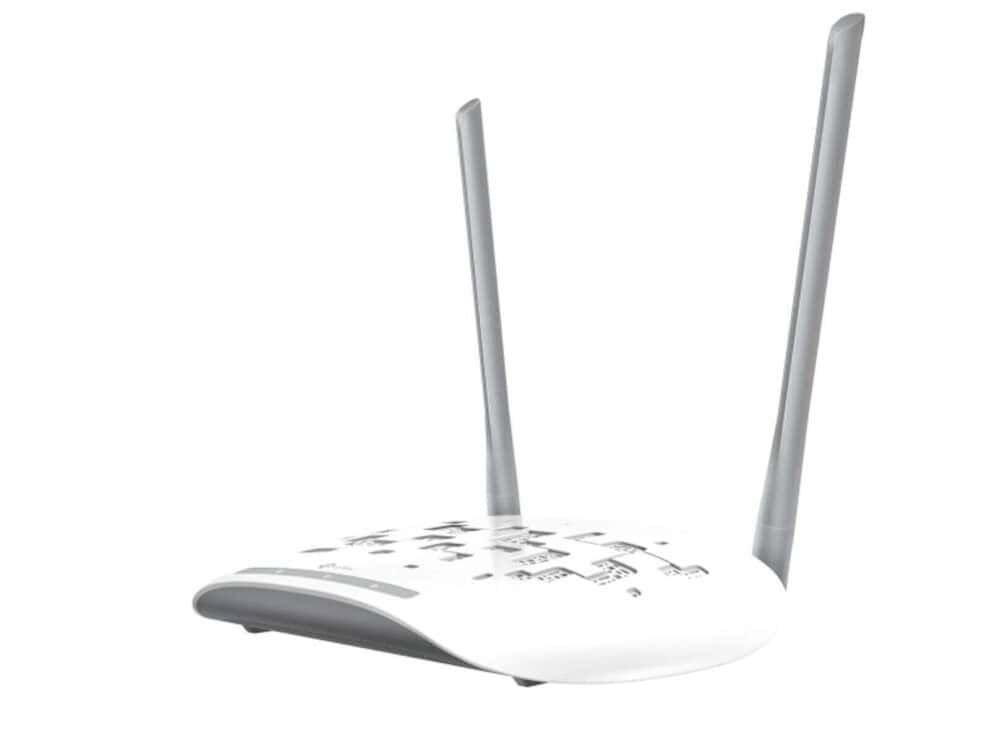

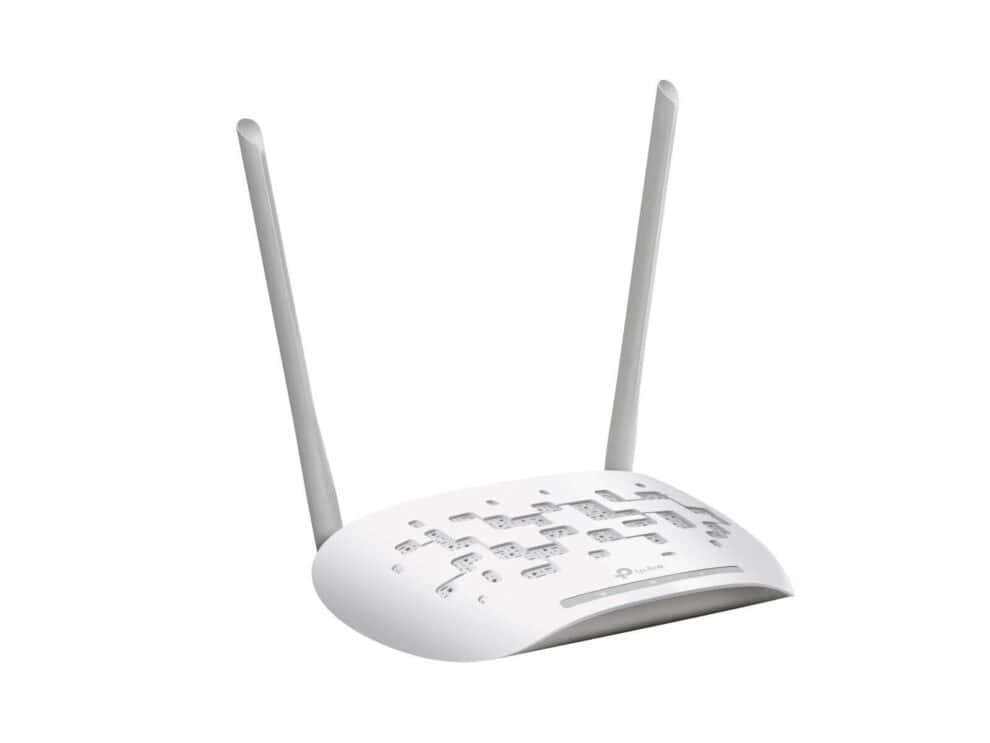

title: TP-Link TL-WA801N 300Mbps Wireless Access Point
date: 2023-11-07T18:17:37Z
modified: 2026-05-22T12:04:44Z
permalink: "https://tech.co.za/product/tp-link-300mbps-wireless-n-access-point-desktop/"
type: product
status: publish
excerpt: 2.4 GHz, IEEE 802.11 b/g/n, 300 Mbps, 1 x 10/100 Ethernet RJ-45
wpid: 480925
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Access Points
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/WA801Na.jpg"
---

- – 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
- – Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
- – Protects your home network with WPA2 encryption and makes quick connection with the push of a button
- – Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

**HARDWARE FEATURES**

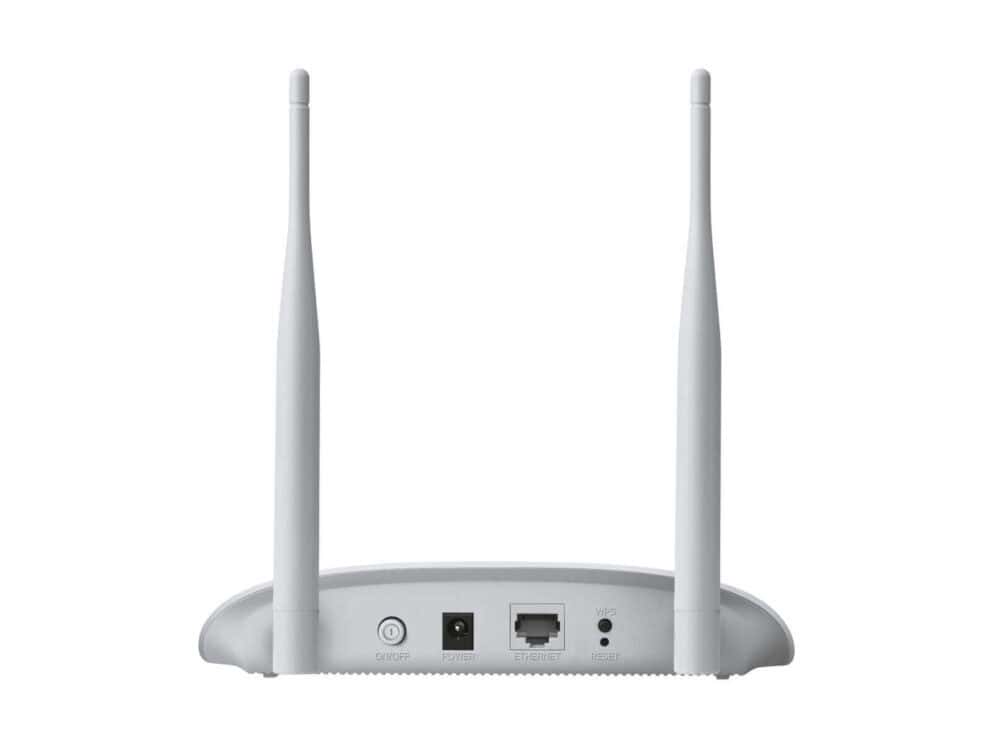

Interface: 1× 10/100 M Ethernet Port(RJ45), Support Passive PoE

Button: Power On/Off Button, WPS Button, Reset Button

External Power Supply: 9VDC / 0.6A

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)

Antenna Type: 2 Fixed Omni-Directional Antennas

**WIRELESS FEATURES**
Frequency: 2.4 GHz

Signal Rate: 300 Mbps at 2.4 GHz

Reception Sensitivity:
– 11g 6Mbps: -90dBm
– 11g 54Mbps: -77dBm
– 11n HT20 MC7: -73dBm
– 11n HT40 MC7: -70dBm

Transmit Power: CE: <15dBm; FCC: <20dBm

Wireless Modes:
– AP Mode
– Multi-SSID Mode
– Client Mode
– Range Extender Mode

Wireless Functions: Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor

Wireless Security: WEP, WPA/WPA2, WPA/WPA2-PSK encryptions

Quality of Service: WMM

Management: SNMP

Advanced Functions: Up to 30 meters Passive PoE is supported
