Built for reliability
Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.
High-availability
Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails.
| Hardware Specifications | ||
| CPU | CPU Model | AMD Ryzen V1780B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware Encryption Engine | Yes | |
| Memory | System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Storage | Drive Bays | 16 |
| Maximum Drive Bays with Expansion Unit | 28 (RX1225RP x 1) | |
| Drive Type (See all supported drives) | 3.5″ SATA HDD 2.5″ SATA SSD | |
| Hot Swappable Drive* | ||
| Notes | Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article. | |

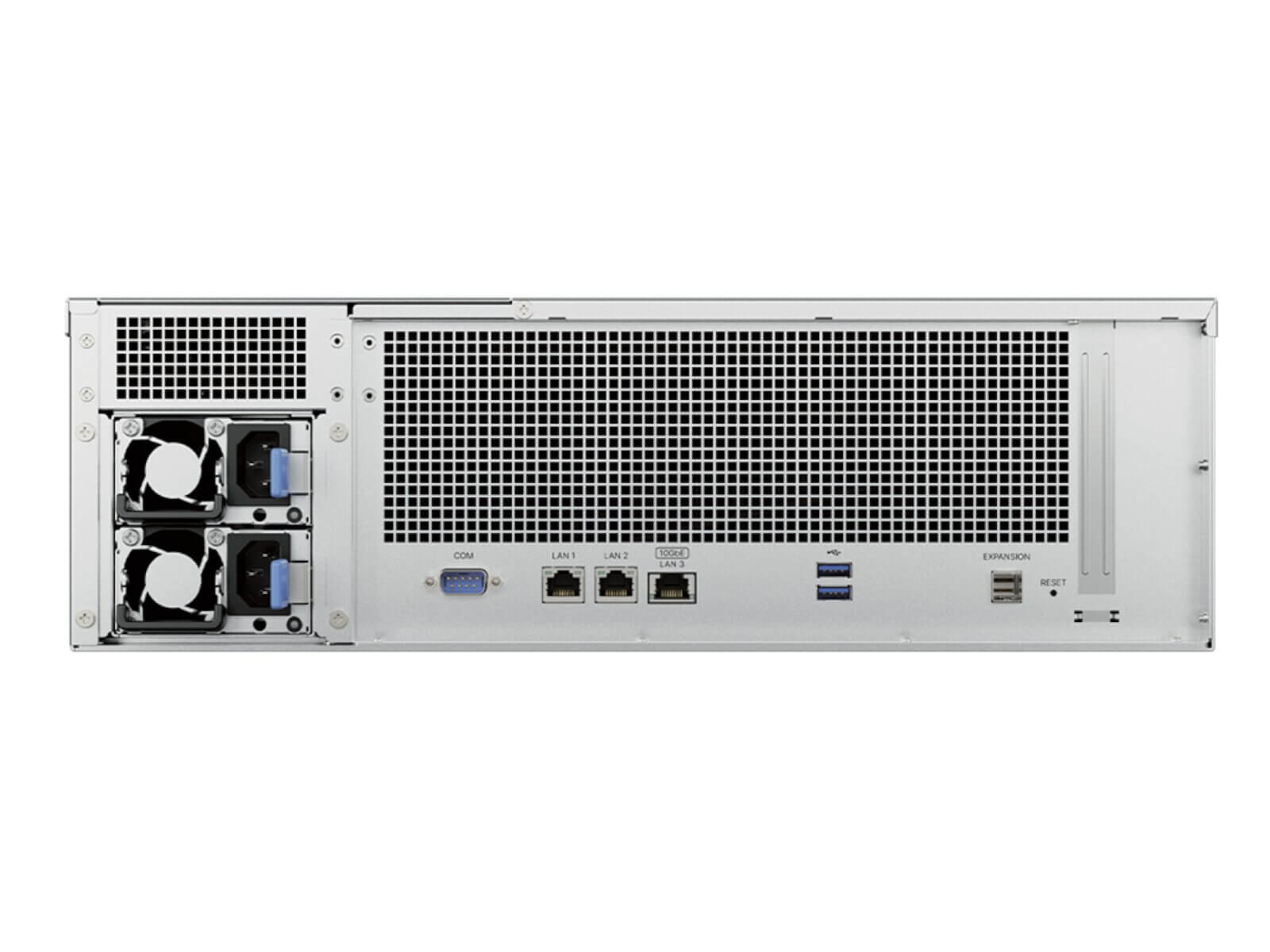

| External Ports | RJ-45 1GbE LAN Port | 2 |
| RJ-45 10GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Mini-SAS HD | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 3U |
| Size (Height x Width x Depth) | 132.3 mm x 482 mm x 656.5 mm | |
| Weight | 17.3 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | |
| Notes | The rail kit is sold separately | |
| More info: | https://www.synology.com/en-global/products/RS2825RP+#features | |
