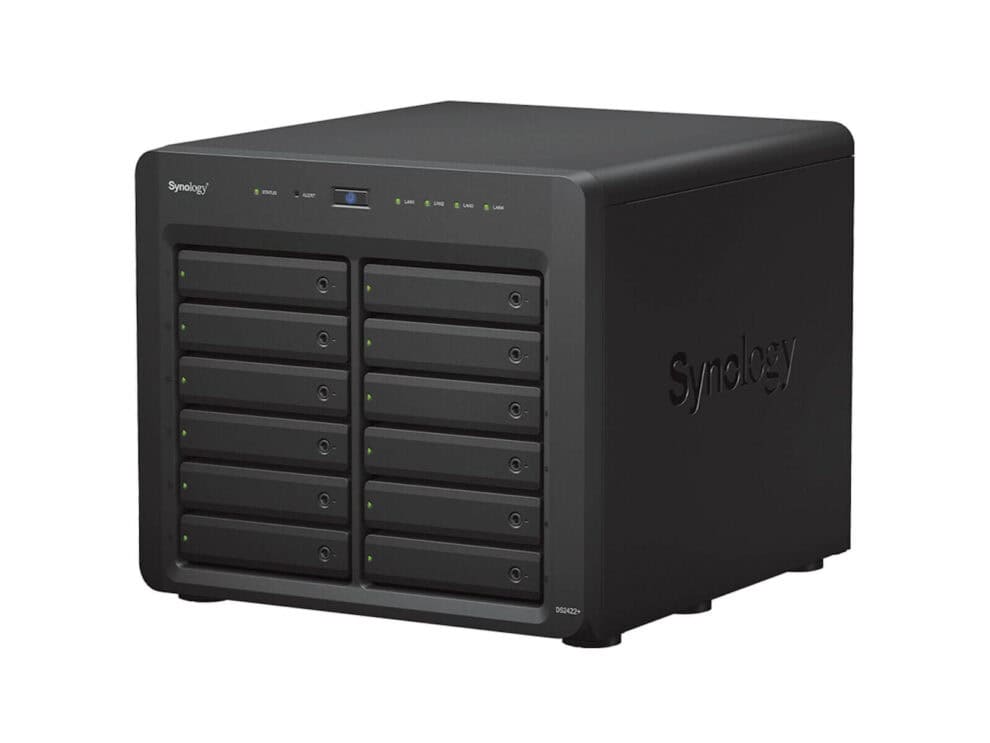

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.
| CPU | CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine | Yes | |
| Memory | System Memory | 4 GB DDR4 ECC SODIMM |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes | Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations. | |
| Storage | Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 24 (DX1222 x 1) | |
| Drive Type (See all supported drives) | 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD | |
| Hot Swappable Drive* | Yes | |
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
| External Ports | RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Mini-SAS HD | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Size (Height x Width x Depth) | 270 mm x 300 mm x 340 mm |
| Weight | 9.5 kg | |
| Others | System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode | |
| Easy Replacement System Fan | Yes | |
| Power Supply Unit / Adapter | 100 watts | |
| Power Recovery | Yes | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Noise Level* | 25 dB(A) | |
| Scheduled Power On / Off | Yes | |
| Wake on LAN / WAN | Yes | |
| Power Supply Unit / Adapter | 550 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 73.11 watts (Access) 32.12 watts (HDD Hibernation) | |
| British Thermal Unit | 249.63 BTU/hr (Access) 109.67 BTU/hr (HDD Hibernation) |
