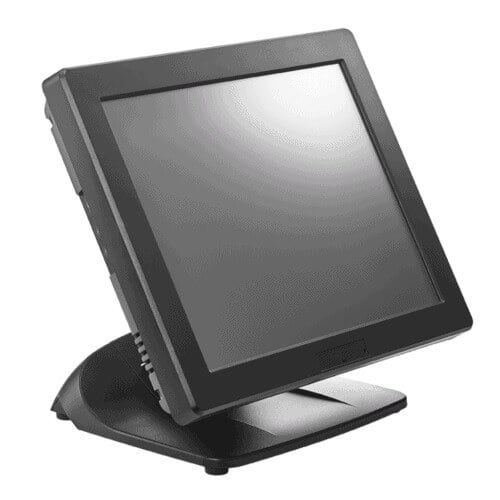

The PS-3315E is a 15″ fanless touch POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes, and represents one of the best value choices in the entry-level POS Terminal segment.
System Configuration
Processor: Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory: DDR3L SO-DIMM x 1, max. 8GB
Storage Device: SATA x 1, SATA SSD default
RAID Function: N/A
Intel vPro Support: N/A
TPM Support: N/A
Power Supply: 12V/40W
OS Support: Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Spill & resistance: N/A
Display & Touch
LCD: 15″ TFT LCD
Resolution: 1024 x 768
Touch: 5-wire Resistive touch
I/O Expansion
Serial Port: 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Standard USB Port: USB 2.0 x 5
Parallel Port: 1, via optional conversion cable through service window
Powered USB Port: N/A
LAN Port: 10/100/1000 Mb x 1
Display Port: VGA x 1, 12V support for Posiflex monitors
CR Port: 1, control 2 CR via optional Y-cable
PS/2 Port: 1, via optional conversion cable through service window
UPS Port: N/A
Audio: Buzzer only
Expansion Slot: N/A
