Print Characteristics
Print Method: 9 Pin
Serial Dot Matrix: Print Speed
Up to 5.1 lps (at 40 colums): Print Resolution
80 dpi (Horizontal): 144 dpi (Vertical)
Print Width: Up to 63.5 mm
Media Characteristics
Media Type: Receipt
Media Width: 76.5 mm
Media Roll Diameter: Up to 83 mm
Media Thickness: 0.06 ~ 0.085 mm

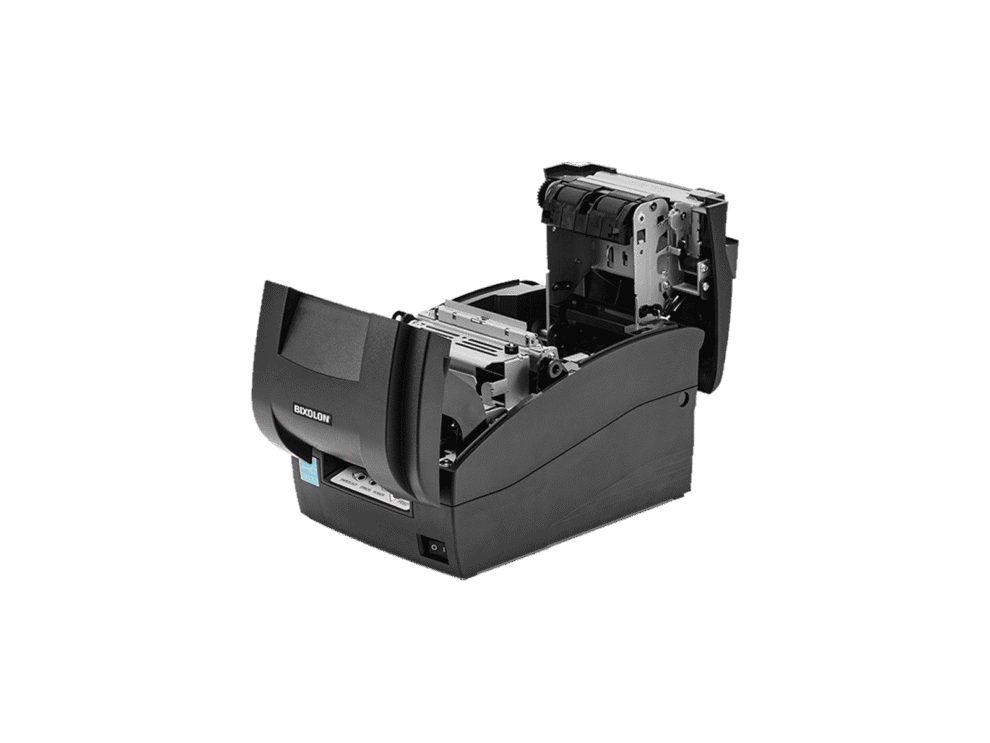

Supply Method: Easy Paper Loading
Performance Characteristics
NV Image Memory: 256 Kbytes (mono)
Receive Buffer: 64 Kbytes
User Define Buffer: 64 Kbytes
Interface:
① USB V2.0 FS + Serial + Ethernet
② USB V2.0 FS + Parallel
③ USB V2.0 FS + Serial
Fonts / Graphics / Symbologies
Character Size: Font A: 9 x 9 Font B: 7 x 9 KOR: 17 x 9 CHN: 16 x 16
Characters Per Line: Font A: 35 Font B: 40 KOR: 20 CHN: 22
Character Sets: Alphanumeric: 95
Extended Graphics:128 x 27 page: International: 48
Graphics: Supporting user-defined fonts, graphics,
formats, and logos
