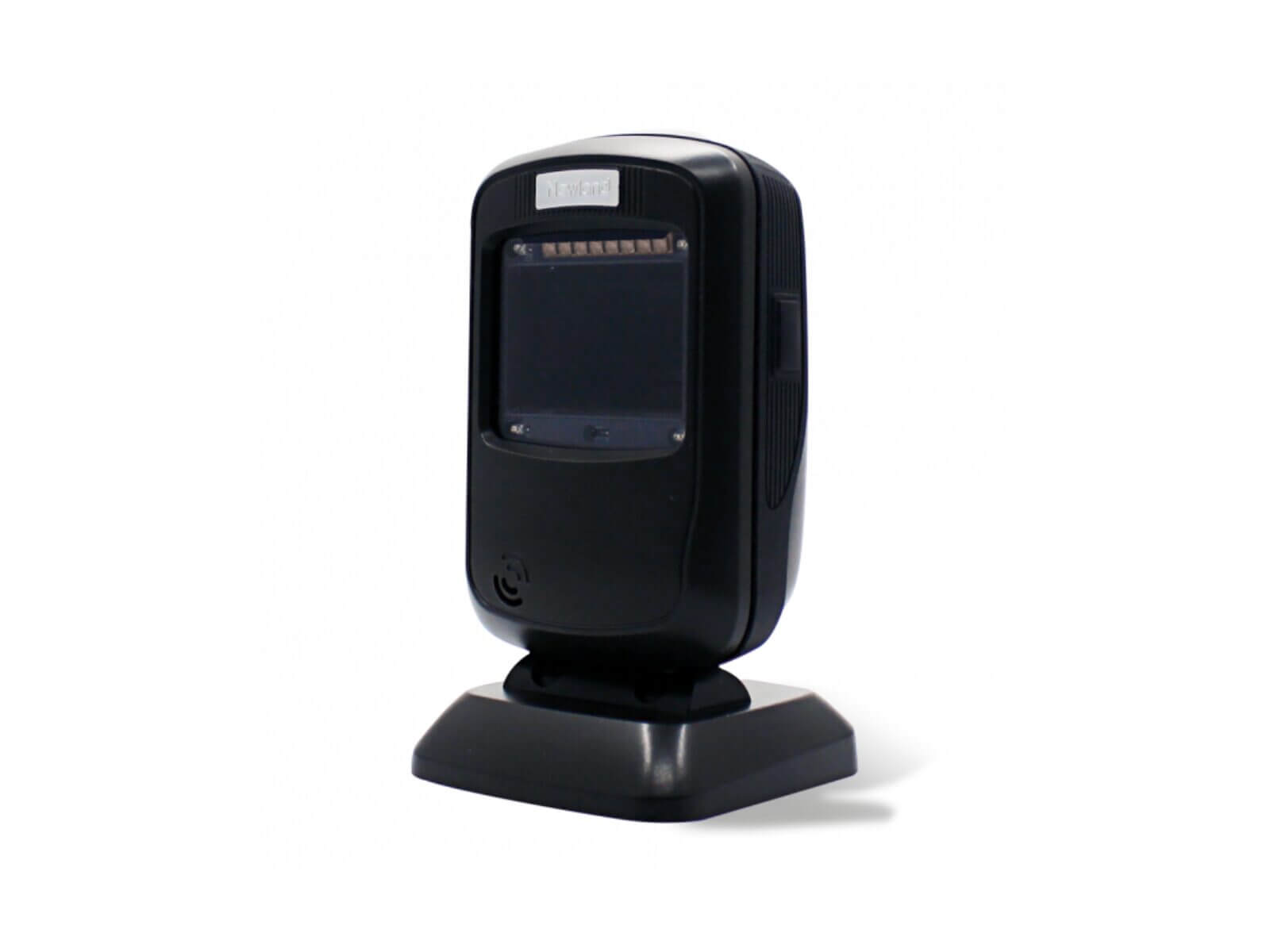

title: Newland FR40 Koi II 2D CMOS Mega Pixel Omnidirectional Desktop Scanner - USB
date: 2025-06-18T09:46:39Z
modified: 2026-05-22T15:01:26Z
permalink: "https://tech.co.za/product/newland-fr40-koi-ii-2d-cmos-mega-pixel-omnidirectional-desktop-scanner-usb/"
type: product
status: publish
excerpt: "As the first megapixel scanner on the market, the Koi reads 1D and 2D barcodes, including Aztec, with speed and ease. \\nEquipped with a switch to toggle between paper and screen modes you are assured to have the best optimized reading every time."
wpid: 542524
product_brand:
  - Newland
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Barcode Scanners
featured_image: "https://tech.co.za/wp-content/uploads/2025/06/NLS-FR4080-20a.jpg"
---

| 1D | All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. |
| --- | --- |
| 2D | All major 2D symbologies, including PDF417, Data Matrix, QR Code, Micro QR Code, Aztec. |
| Image Sensor | 1280×800 CMOS |
| Illumination | White LED |
| Depth of Field EAN 13 (13mil) | 10-210mm |
| Depth of Field QR (15mil) | 10-180mm |
| Field of View Horizontal | 51° |
| Field of View Vertical | 32° |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±50° |
| Scan Angle Skew | ±45° |
| Minimal Print Contrast | 25% |
| Motion Tolerance | 2.5m/s |
| Current @ 5VDC Operating | 219mA (typical) |
| Dimensions (mm) | 83(W)x81(D)x148(H)mm |
| Input Voltage | 5VDC±5% |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator |
| Power Consumption | 1041mW (typical) |
| Weight | 293g |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% (non-condensing) |
| Electro Static Discharge (ESD) | ±14 kV (air discharge), ±8 kV (direct discharge) |
| Drop | 1.2m |
| IP Rating | IP52 |
| Standard | USB or RS232 cable |
