Specifications
Product code: RB1100x4
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz
Switch chip model: RTL8367
Dimensions: 443 x 148 x 44 mm
RouterOS license: 6
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200’000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes

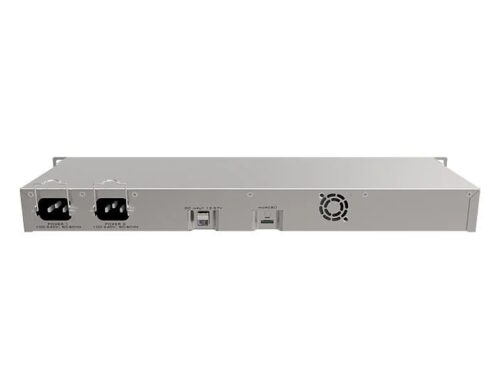

Powering
Number of AC inputs: 2
AC input range: 100-240
Number of DC inputs: 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage: -48, 12-57 V
Max power consumption: 20 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage; 20-57 V
Ethernet

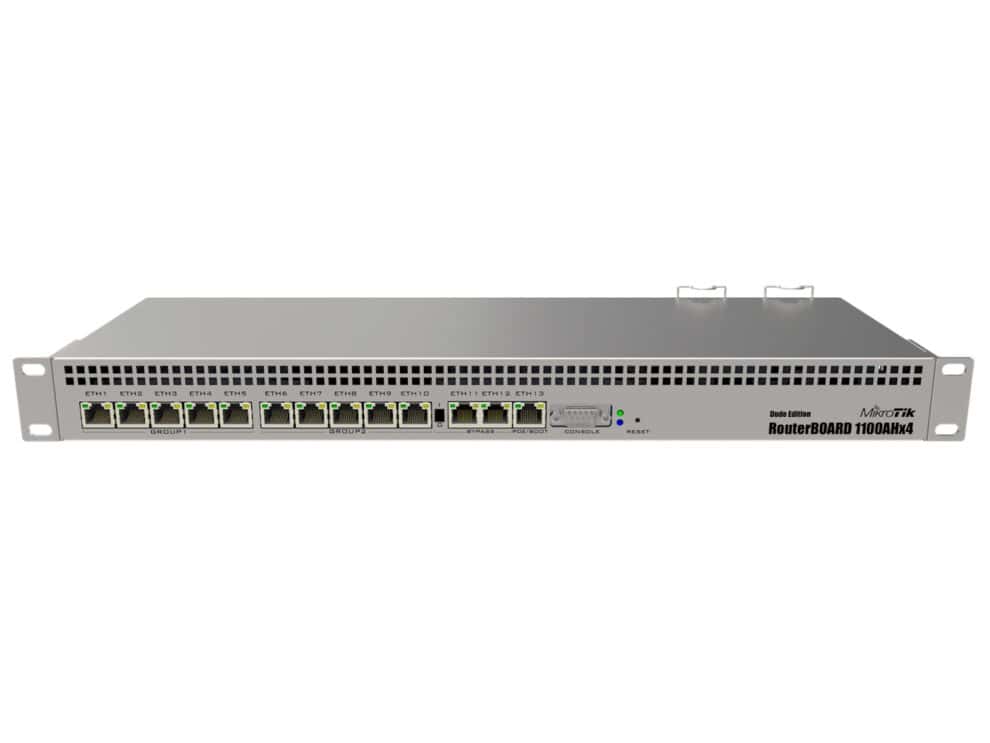

10/100/1000 Ethernet ports: 13
Peripherals
Memory card type: microSD
Memory Cards: 1
Serial console port: RS232
Other
Current Monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Beeper: Yes
