Technical details

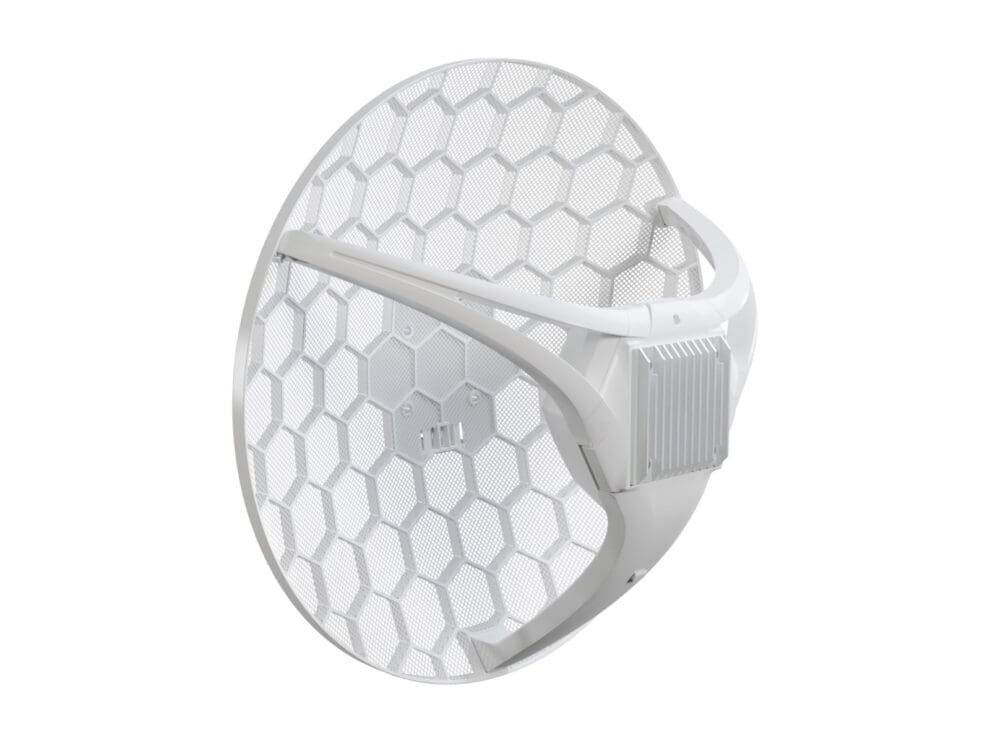

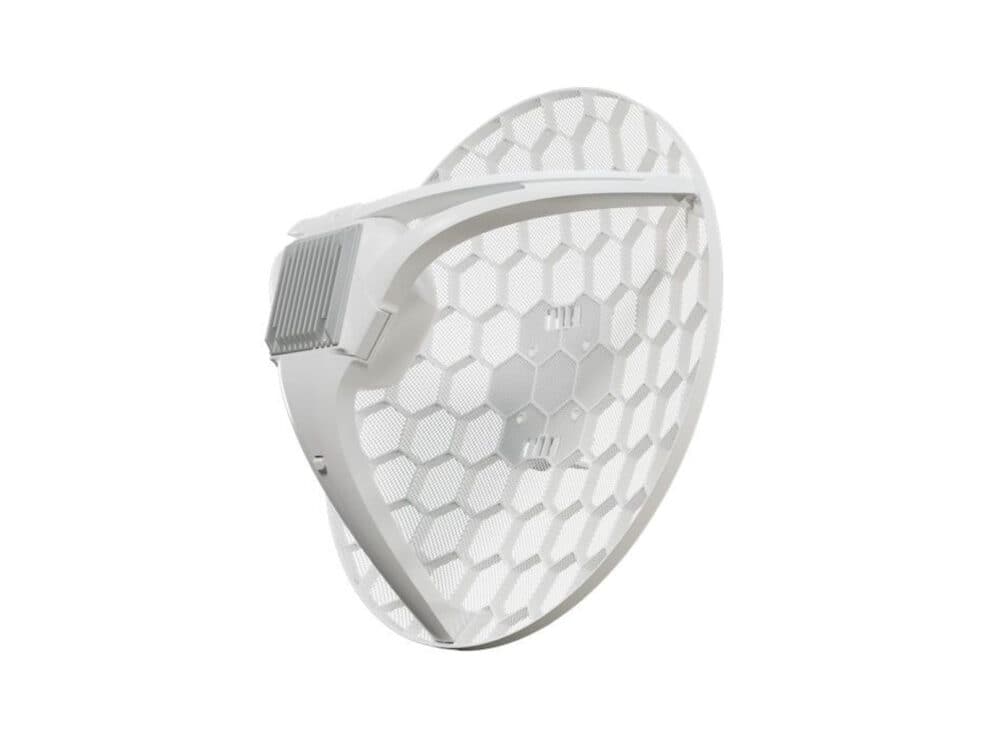

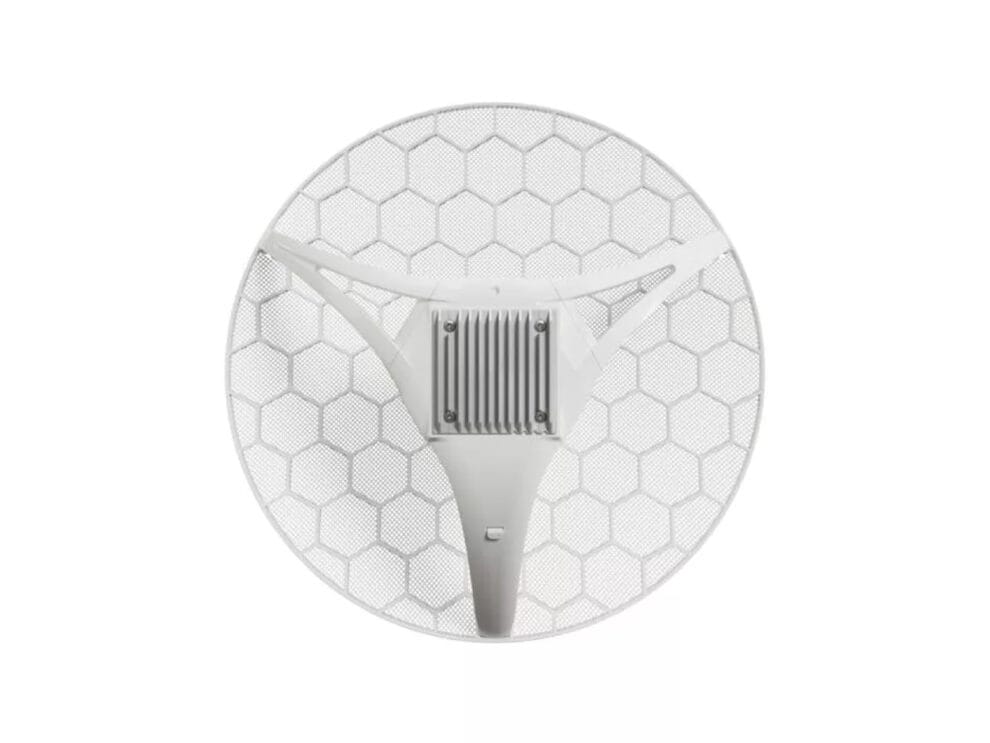

Type: Outdoor cellular signal booster
Data network Data network: 3G, LTE
Processor model Processor model; 88F3720
Processor cores Processor cores: 2
Processor frequency Processor frequency: 800 MHz
Internal memory Internal memory: 256 MB
Storage capacity Storage capacity: 16 MB
Storage media Storage media: Flash
3G bands supported: 1800,850,900,2100 MHz
4G FDD-LTE bands supported: 700,800,850,900,1800,2100,2600 MHz
4G TDD-LTE bands supported: 2300,2600 MHz
SIM card support: Yes
SIM card type: MicroSIM
Ethernet LAN (RJ-45) ports: 1
Compliance certificates: CE, RoHS
Power
Power source type: PoE
Power consumption (typical): 8 W
Input voltage: 12 – 57 V
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Weight & dimensions
Width: 391 mm
Depth: 227 mm
Height: 391 mm
