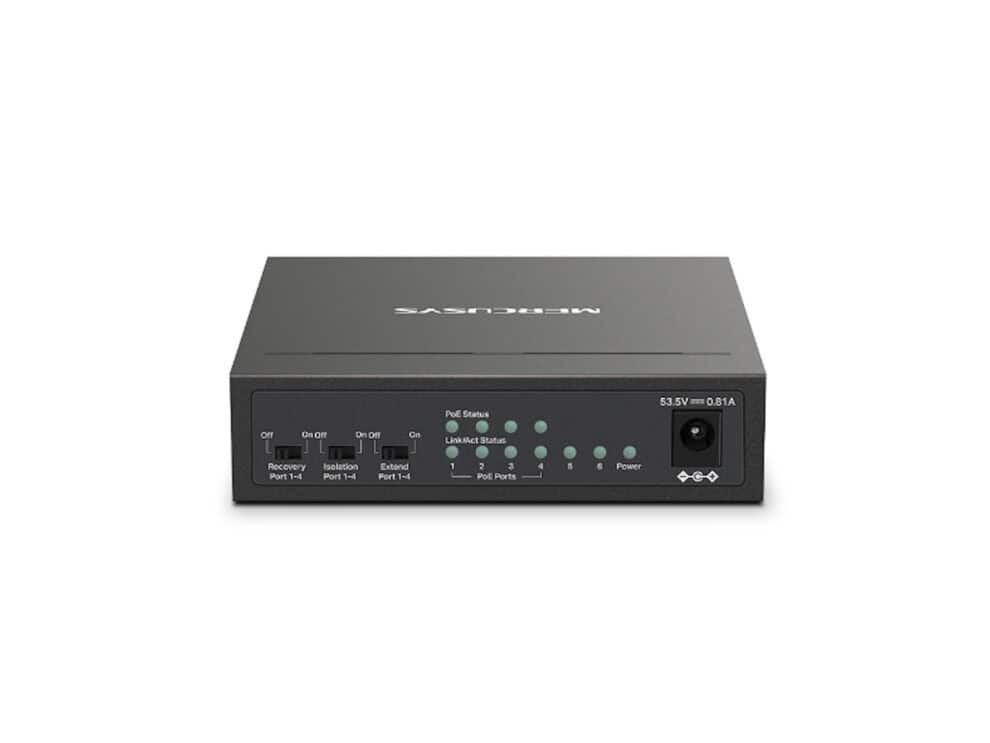

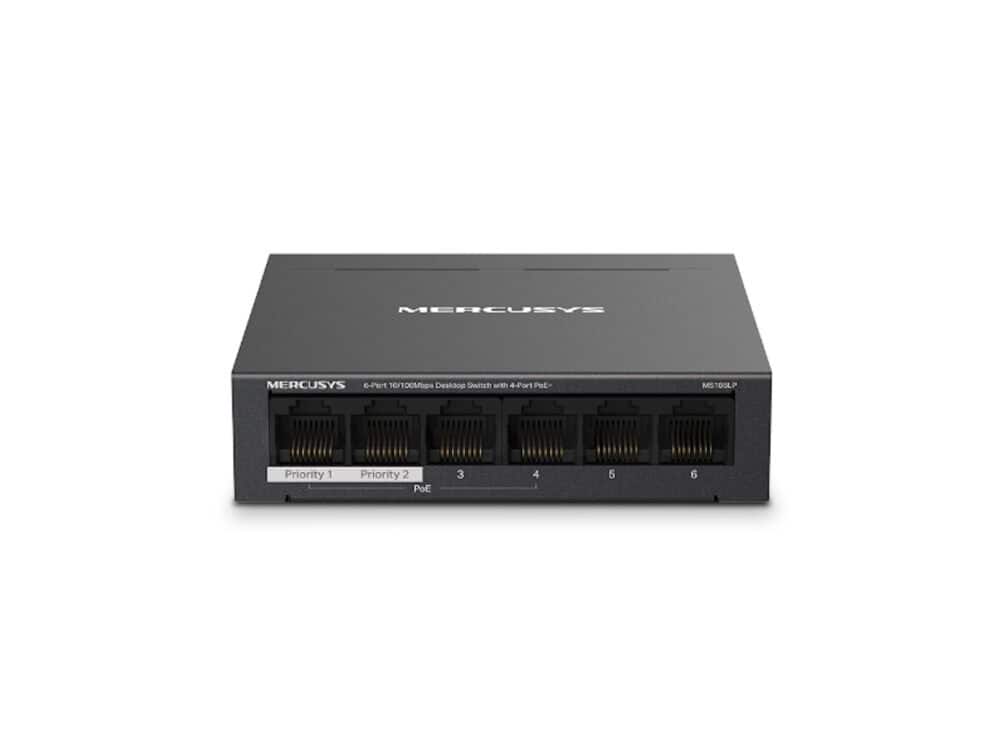

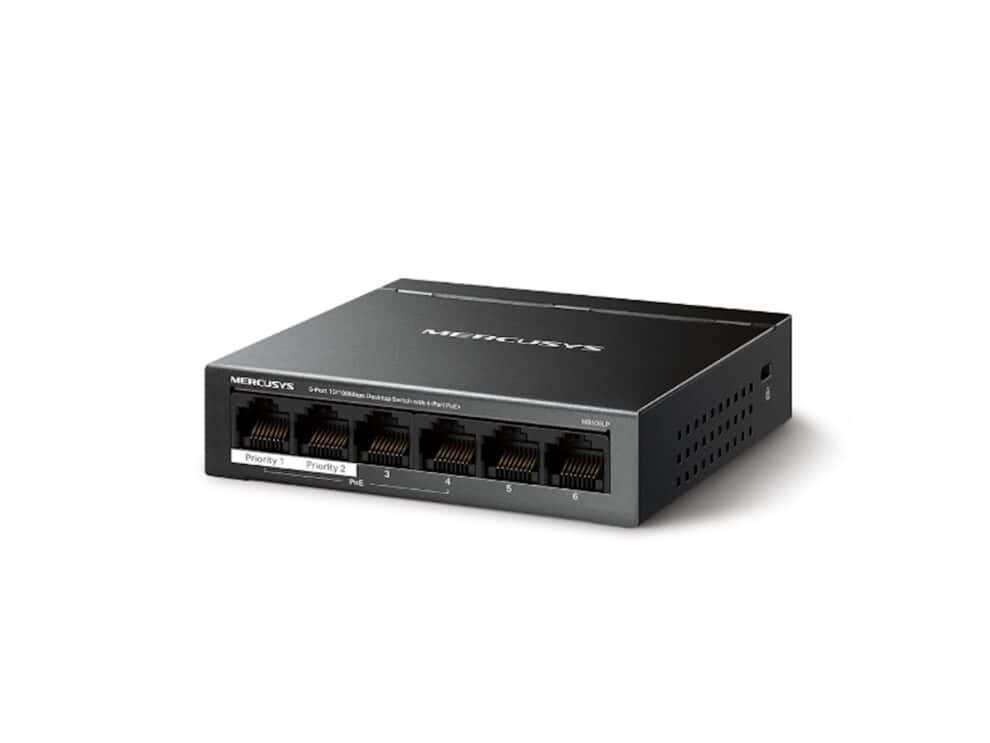

title: Mercusys 6 Port Unmanaged Desktop POE Switch
date: 2024-10-22T07:39:52Z
modified: 2026-05-22T09:01:55Z
permalink: "https://tech.co.za/product/mercusys-6-port-unmanaged-desktop-poe-switch/"
type: product
status: publish
excerpt: Mercusys 6 Port Unmanaged Desktop POE Switch
wpid: 516600
product_brand:
  - Mercusys
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/6-Port-Desktop-Switch-2.jpg"
---

**Hardware**
**Dimensions**: 99.8_98_25mm
**PoE Ports:**
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 40 W
**Interfaces**: 6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply
External Power Adapter (Output: 53.5V/0.81A)
Installation
**Desktop**
Wall Mount
**Standards and Protocols**: IEEE 802.3x Flow Control
**Data Rates**
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
Jumbo Frame: 2 KB
**Mac Address Table**: 2K
Max Power Consumption
1.87W（220 V / 50 Hz, no PD connected）
44.8W（220 V / 50 Hz, with 40W PD connected）
**Max Heat Dissipation**
6.34 BTH/h （no PD connected)
152.32 BTH/h（with 40W PD connected）
