Mains:
Voltage range 120Vac-275Vac(phase to phase)
Current 32.1A max 52.6 A max
Frequency range 40Hz-70Hz
Power factor 0.99
Specifications:

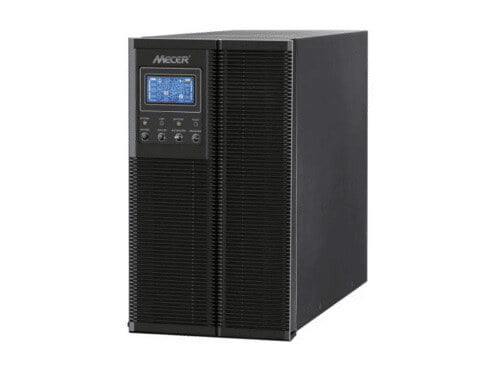

Product Code ME-10000-WPTVa
item ME-6000-WPTV / ME-10000-WPTV
Dimensions WDH(mm) 248 x 500 x616 248 x500 x616
Weight(kg) 58.9 62.1
Output:
Rating Voltage 230Vac(±1%)
Rating Current 27A 45A
Frequency range 50Hz x (1±1%), Follow main power in phase lock range
Power factor 0.9
105%-125%, load transfer to bypass mode after 10 min (0-30°C) or
1min(30-40°C)
Output Overload 125%-150%, load transfer to bypass mode after the 30s
Over 150%, load transfer to bypass after 0.5s
Load crest ratio 3:1( max)
THD <2%( 100% Line load)
Power:
Apparent Power(KVA) 6KVA / 10KVA
Active power(KW) 5.4KW / 9KW
