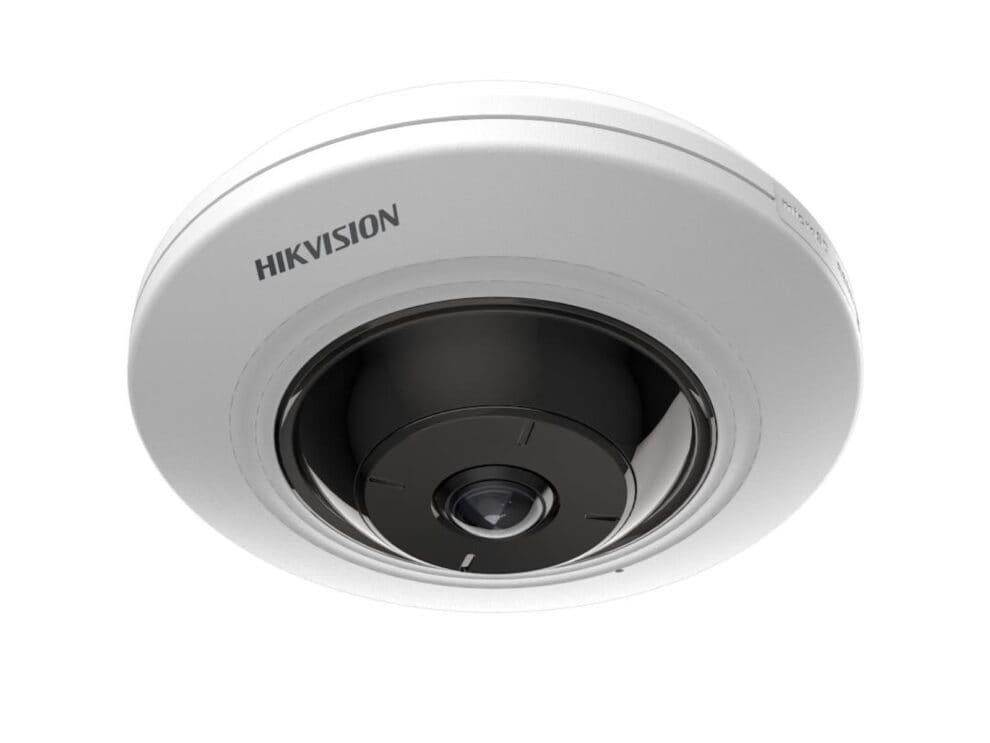

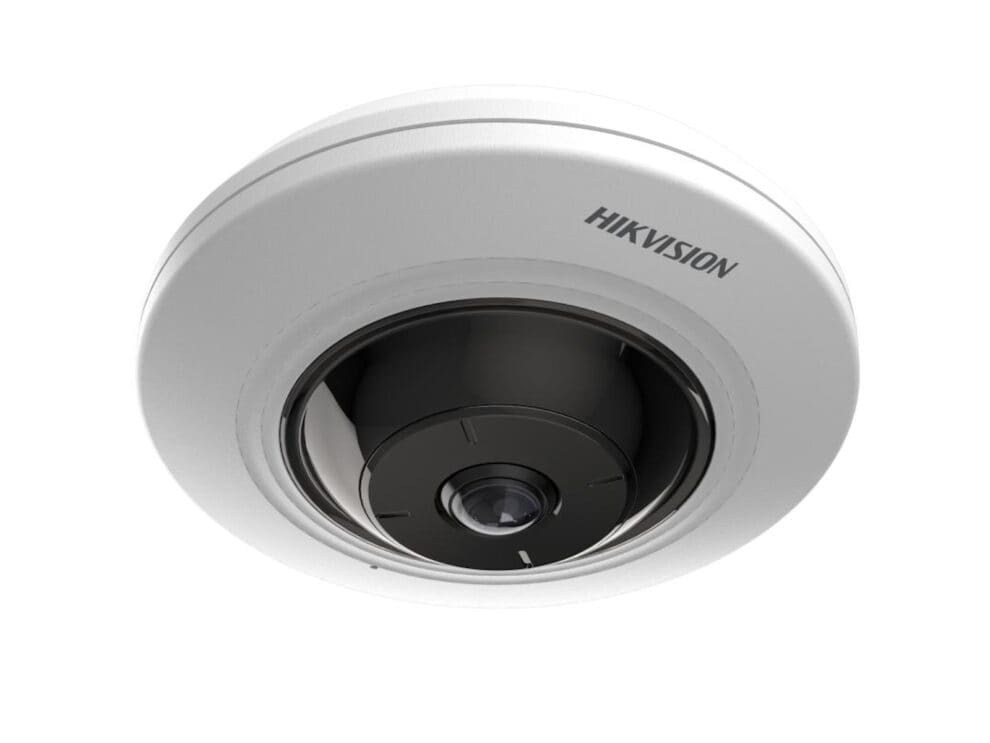

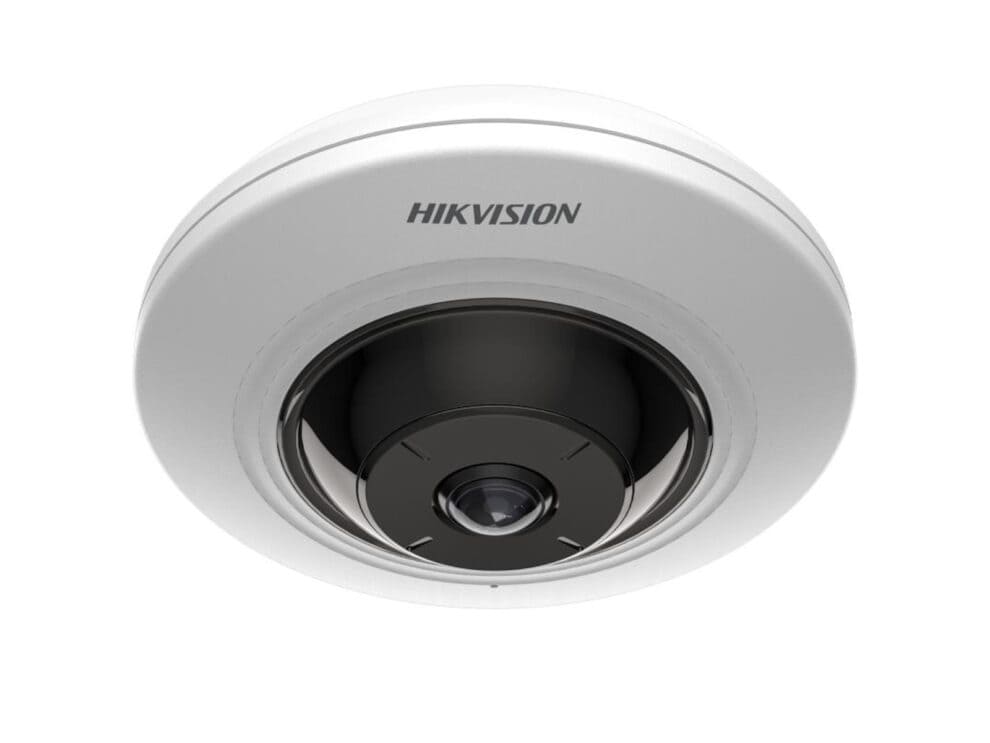

title: Hikvision 5MP Fixed Fish Eye Camera
date: 2024-10-22T08:38:05Z
modified: 2026-05-22T07:02:45Z
permalink: "https://tech.co.za/product/hikvision-5mp-fixed-fish-eye-camera/"
type: product
status: publish
excerpt: "High quality imaging with 5 MP resolution\\nEfficient H.265+ compression technology\\n180° fisheye view\\nClear imaging against strong back light due to 120 dB true WDR technology\\nAudio and alarm interface available"
wpid: 516652
product_brand:
  - Hikvision
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Smart Security
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/Fisheye-Network-Camera.jpg"
---

**Camera**
Image Sensor: 1/2.7″ Progressive Scan CMOS
Max. Resolution: 2560 × 1920
Min. Illumination: Colour: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter

**Lens**
Lens Type: Fixed focal lens, 1.05 mm
Focal Length & FOV: 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Focus: Fixed
Lens Mount: M12
Iris Type: Fixed
Aperture: F2.25
Depth of Field: 0.1 m to ∞

**DORI**
DORI: D: 21 m, O: 8 m, R: 4 m, I: 2 m

**Illuminator**
Supplement Light Type: IR
Supplement Light Range: Up to 8 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

**Video**
Main Stream
50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

Sub-Stream
50 Hz: 25 fps (640 × 480)
60 Hz: 30 fps (640 × 480)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Region of Interest (ROI): 1 fixed region for main stream

**Fisheye Display**
Mount Type: Support wall/table/ceiling mounting

**Audio**
Audio Type: Mono sound
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
