AMD Ryzen™ 7 8845HS | Radeon™ 780M Graphics | AMD Ryzen™ AI (38 TOPS) | Quad 4K HDMI Output | Up to 96GB DDR5 | Book-Size Design
Quick Specs
- Drive demanding signage and edge AI workloads with an 8-core AMD Ryzen™ 7 8845HS
- Accelerate on-device AI with AMD Ryzen™ AI delivering up to 38 TOPS
- Power up to four 4K displays at once through quad HDMI outputs
- Expand to 96GB DDR5 memory and fast PCIe 4.0 M.2 SSD storage
- Connect with dual Ethernet (1GbE + 2.5GbE) and plentiful USB 3.2 Gen2

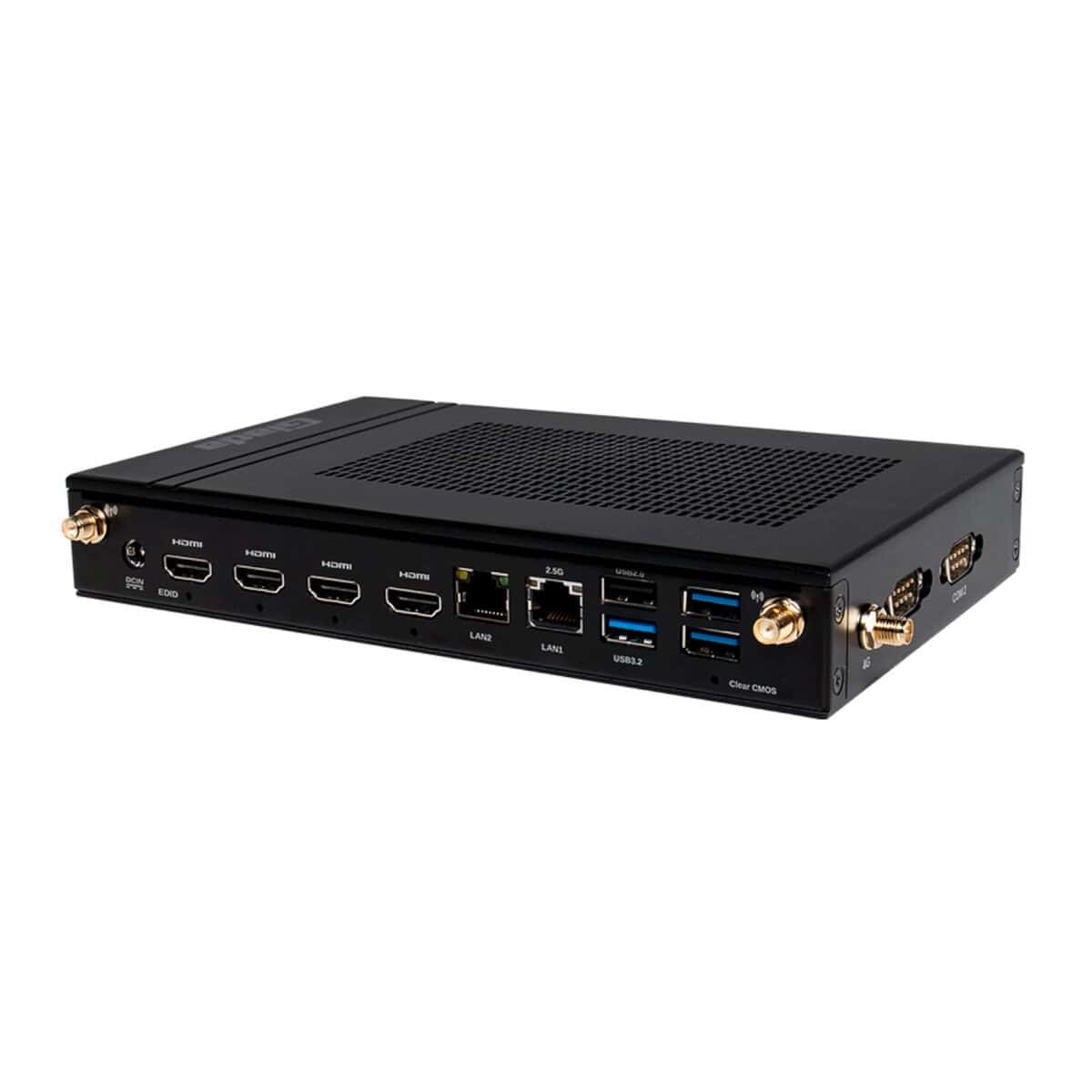

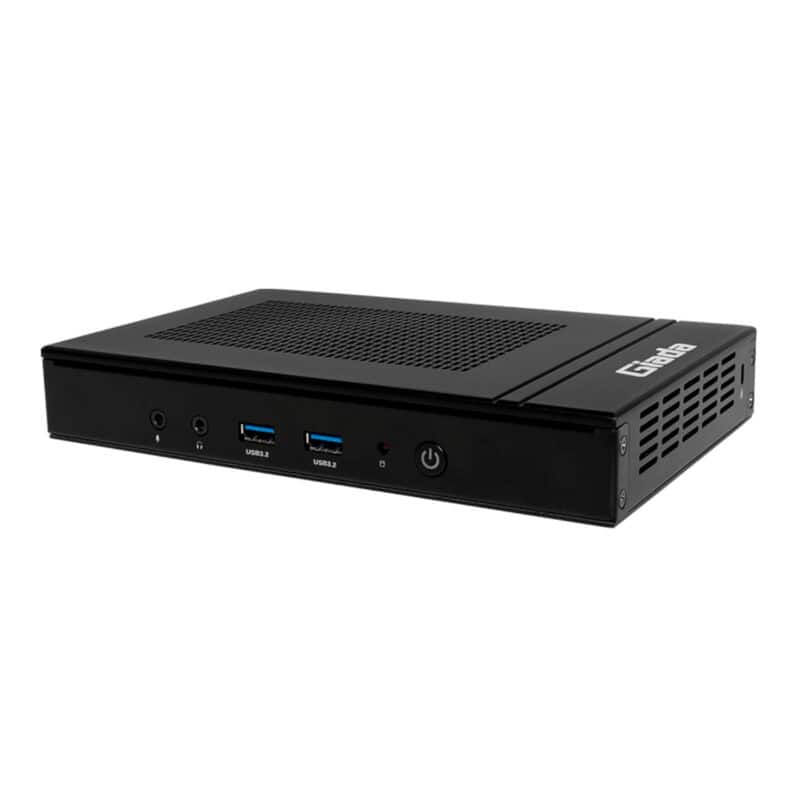

Ryzen 8000-Series Power in a Book-Size Build
The Giada D108 is a high-performance embedded computer built around the 8-core AMD Ryzen™ 7 8845HS processor with integrated AMD Ryzen™ AI. Delivering up to 38 TOPS of total AI performance (16 TOPS from the dedicated NPU), it’s ready for modern AI-assisted signage, kiosk and edge workloads across South Africa — all in a compact, book-size chassis that fits almost anywhere.
Stunning Quad-Display Visuals
Built for digital signage, the D108 drives up to four independent displays simultaneously through four HDMI ports, each supporting resolutions up to 3840 × 2160 (4K) at 60Hz with hardware EDID. AMD Radeon™ 780M graphics handle rich multimedia with advanced hardware decode and encode (including H.265, VP9 and AV1), making it ideal for crisp 4K video walls and multi-screen deployments.
Extensive Connectivity and Expansion
Connectivity is comprehensive. A rich I/O array includes five USB 3.2 Gen2 ports, a USB 2.0 port, an RS232 serial port (optionally two) and MIC-IN/AUDIO-OUT, while dual Ethernet — 1GbE plus 2.5GbE — keeps wired networking fast and resilient. Inside, support for up to 96GB of dual-channel DDR5 memory and a PCIe® 4.0 M.2 (2280) SSD gives you room to scale, with optional M.2 modules adding Wi-Fi 5/6E and 4G mobile connectivity plus a SIM slot.
Reliable, Always-On Operation
Engineered for unattended deployments, the D108 features smart active cooling, a watchdog timer, auto power-on, scheduled RTC and optional TPM 2.0 for hardware security. A rugged metal chassis and a wide 0–45°C operating range keep it dependable around the clock, and it runs Windows 11 (64-bit) or Linux Ubuntu (64-bit), fully certified to CE, FCC Class B and UKCA standards.
FEATURES:
- 8-core AMD Ryzen™ 7 8845HS processor (AMD Ryzen 8000 series)
- AMD Ryzen™ AI with up to 38 TOPS total, including a 16 TOPS NPU
- AMD Radeon™ 780M integrated graphics
- Quad HDMI output driving up to four 4K displays at 3840 × 2160 @60Hz with hardware EDID
- Advanced multimedia decode/encode (H.264, H.265, VP9, AV1)
- Up to 96GB dual-channel DDR5-5200 memory across two SO-DIMM slots
- PCIe® 4.0 x4 M.2 (2280) SSD storage
- Five USB 3.2 Gen2 ports plus one USB 2.0 port
- RS232 serial port (optional second RS232)
- Dual Ethernet: 1GbE (Realtek) and 2.5GbE (Intel I226-V)
- Optional M.2 Wi-Fi 5/6E and 4G mobile connectivity with SIM slot
- Smart active cooling, watchdog timer, auto power-on and scheduled RTC
- Optional TPM 2.0 for hardware security
- Rugged metal construction with a wide 0–45°C operating temperature range
- Runs Windows 11 (64-bit) or Linux Ubuntu (64-bit)
- Certified to CE, FCC Class B and UKCA standards
SPECIFICATIONS:
- Processor: AMD Ryzen™ 7 8845HS (8 cores)
- Chipset: SoC
- Base Power: 45 W
- NPU: AMD Ryzen™ AI, 38 TOPS total (16 TOPS NPU)
- GPU: AMD Radeon™ 780M
- Multimedia: 1080p60 8bpc MPEG2/VC1, 4320p75 8bpc H.264, 4320p49 8/10bpc H.265/VP9 decode; 2160p175 8bpc H.264, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1 encode
- System Memory: Up to 96 GB, 2 × SO-DIMM DDR5-5200 MHz
- Storage: 1 × M-Key M.2 (2280) PCIe 4.0 x4 for SSD
- Display Interface: 4 × HDMI (max. 3840 × 2160 @60 Hz) with hardware EDID
- Displays Supported: 4
- USB: 5 × USB 3.2 Gen2, 1 × USB 2.0
- Serial Port: 1 × RS232 DB9 (optional: 2 × RS232)
- Audio: 1 × MIC-IN, 1 × AUDIO-OUT
- Ethernet: 1 × 1 GbE RJ45 (Realtek RTL8111H), 1 × 2.5 GbE RJ45 (Intel I226-V)
- Wi-Fi / Bluetooth: 1 × E-Key M.2 (2230) for Wi-Fi/BT
- Mobile Network: 1 × B-Key M.2 (3042/3052) for 3G/4G, 1 × SIM slot
- Antenna: 2 × Wi-Fi/BT connectors, 2 × 3G/4G connectors (reserved)
- Buttons: 1 × Power on, 1 × CLR-CMOS
- TPM: Optional TPM 2.0
- Watchdog Timer: Yes
- Auto Power On: Yes
- RTC: Independent daily/weekly scheduling
- Cooling: Smart fan, active cooling
- Power Requirement: DC-IN, 19 V / 4.74 A
- Operating System: Windows 11 (64-bit) / Linux Ubuntu (64-bit)
- Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) @ 0.7m/s air flow
- Humidity: 10 ~ 90% @ 45°C (non-condensing)
- Certifications: CE, FCC Class B, UKCA
- Construction: Metal, Black
- Product Dimensions: 20.5 × 13 × 3.2 cm
WHAT’S IN THE BOX:
- Giada D108 Book-Size Signage Player x1
- Wi-Fi Antenna x2
- AC Power Cable x1
- AC Power Adapter x1
Why Giada?
Giada is a specialist in reliable embedded and signage computing trusted by integrators worldwide, and the D108 reflects that focus — powerful, compact and built to run around the clock. For South African businesses deploying digital signage, kiosks or edge AI, it’s a dependable, expandable platform backed by Giada’s reputation for industrial-grade quality.
