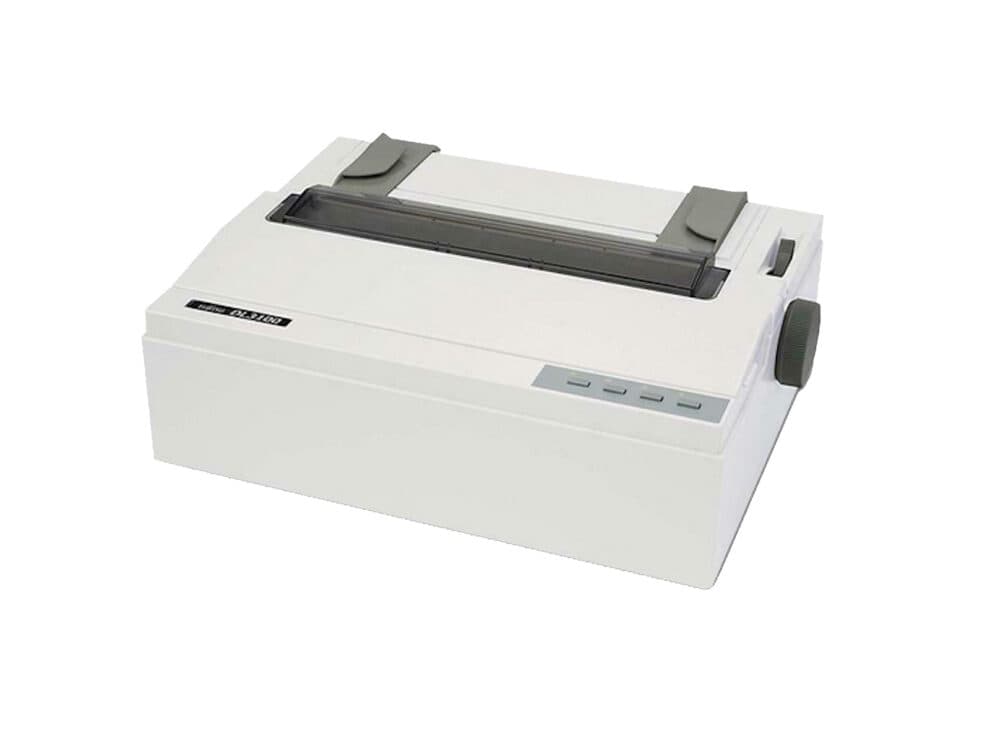

title: Fujitsu DL3100 Dot Matrix Printer
date: 2025-05-21T07:14:33Z
modified: 2026-05-20T12:06:05Z
permalink: "https://tech.co.za/product/fijitsu-dl3100-printer/"
type: product
status: publish
excerpt: "- 24 wire dot matrix printer\\n- Achieves incredible reliabity\\n- Wide connectivity through different printer models\\n- Stylish compact design\\n- Amazing multi-copy capability"
wpid: 539201
product_brand:
  - Fujitsu
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Printers
  - Printers & Consumables
featured_image: "https://tech.co.za/wp-content/uploads/2025/05/KA02100-B711.jpg"
---

| Print Technology | Bi-directional with logical seeking |
| --- | --- |
| Speed | **High Draft Quality:** 450cps(10cpi) **Draft Quality:** 300cps (10cpi) **Letter Quality:** 120cps (10cpi) |
| Resolution | 360 x 360 dpi \*1 |
| Copy Ability | Original + 6 carbonless copies |
| Max. paper thickness | 0.52mm (0.0204”) |
| Line Feed Speed | 60ms per 1/6” line |
| Form Feed Speed | 4” per second continuous feed |
| Continuous Form / Cut Sheet switch function | Manual |
| Paper thickness adjust function | Manual |
| Interface | **USB:** USB Ver.2.0 (TYPE B) **Parallel:** IEEE1284 Nibble Mode **Serial:** RS232C 25pin **LAN:** 10BASE-T, 100 Base-TX, TCP/IP Protocol |
| Emulation | Epson ESC/P2, IBM ProPrinter |
| Barcode | Code 3 of 9, UPC Type A, UPC Type A with check character, EAN13, EAN8, Interleaved 2 of 5, Code 128,Codabar(NW-7), Matrix 2 of 5, Industrial 2 of 5, POSTNET, UPC-E |
| Input Buffer | Max. 256KB |
| Input Voltage | 100V AC to 120V AC ±10%, single phase, 50Hz to 60Hz |
| Consumption Power | **Stan by:** 1.4W or Less **Average:** 34W |
| Environmental Condition | 5°C to 35°C,10~80%RH (Non-condensing) |
| Dimension (W×D×H) | 369 x 283 x 146mm |
| Weight | Approx. 5.5Kg |
| Noise | Approx. 54dBA / 52dBA(Low noise mode) |
