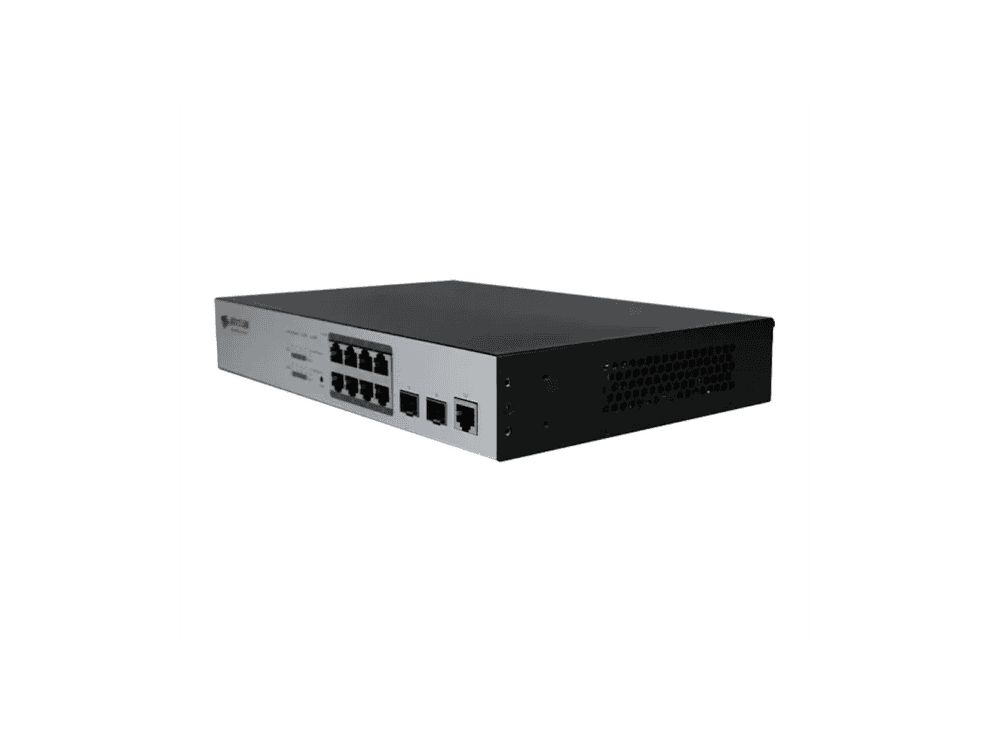

The BDCOM S2510-P is an 8-port managed Gigabit PoE switch with a total power budget of 150W, designed for powering and connecting devices such as IP cameras, access points, and VoIP phones. It provides full Gigabit Ethernet on all ports with support for IEEE 802.3af/at PoE standards, ensuring reliable data transfer and power delivery over a single cable. The switch includes management features for VLANs, QoS, and security, allowing network administrators to configure and monitor performance effectively. Suitable for small to medium-sized networks, it offers stable operation for both data and power applications.
| Interface | 8 GE PoE ports, 2 100/1000M SFP ports |
| Console | 1 RJ45 port, 1 RST button |
| Backplane | 20 Gbps |
| Forwarding rate | 15 Mpps |
| Chassis | 280x180x44 (mm) |
| Power consumption No load | <7W |
| Power consumption full load | 142.5W |
| Power supply | 150W |
| POE power budget | 130 W |
| Total output BTU (1000BTU/H=293W) | 511.95 |
