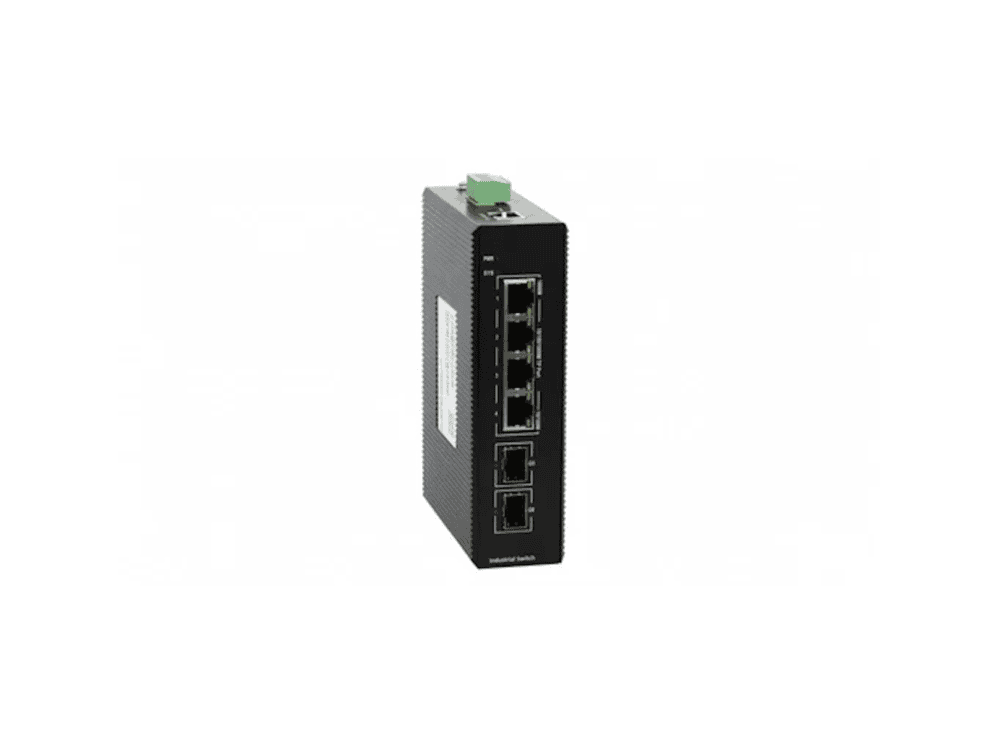

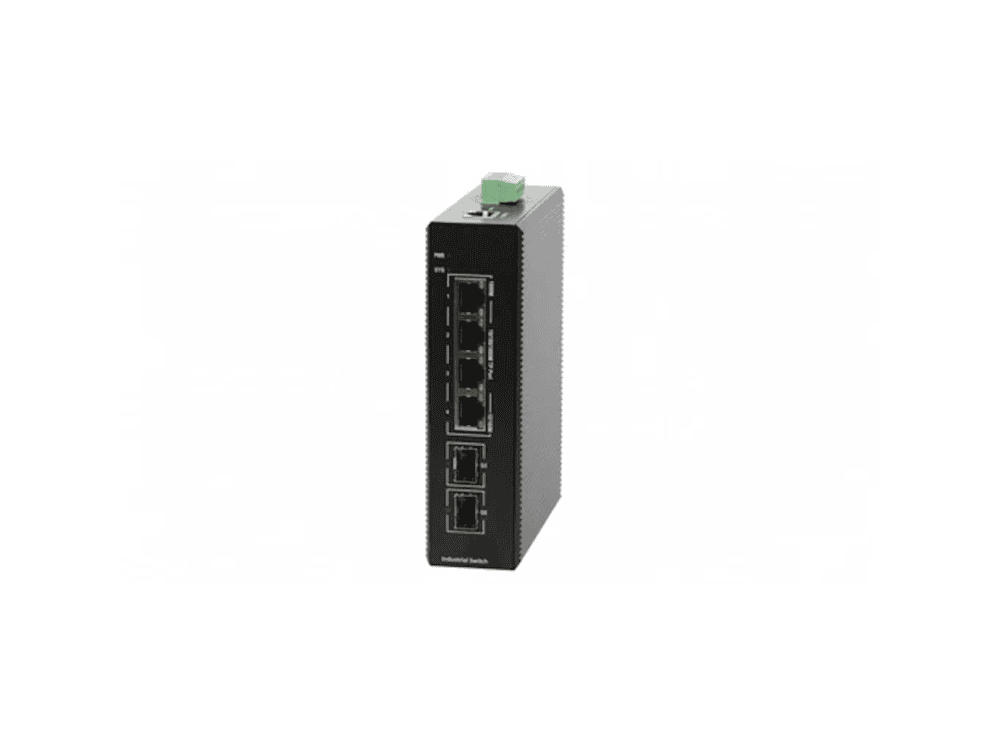

IES200-V25 series, based on a new generation of high-performance hardware and BDROS platform of BDCOM’s independent intellectual property rights, supports ACL, QinQ, QoS and static routing. IES200-V25 series with standard DNI-rail shell provides wide-voltage dual power input. IES200-V25 series uses highly reliable industrial Ethernet ring network technology. The hardware-based algorithm can ensure that the self-healing time of each node is less than 5 milliseconds, and the self-healing time of the ring network is less than 50 milliseconds (typical value)
| Gigabit Interface (RJ45) | 4 |
| Gigabit Interface (SFP) | 2 |
| Console (RJ45) | 1 |
| Backplane (Gbps) | 56 |
| Forwarding rate (Mpps) | 9 |
| Chassis Dimensions(mm) | 145x108x40. |
| Power consumption no load | <12W |
| Power consumtion full load | 18W |
| Power supply | Dual DC 12~ 55V |
| Total output BTU (1000BTU/H=293W) | 61.43 |
