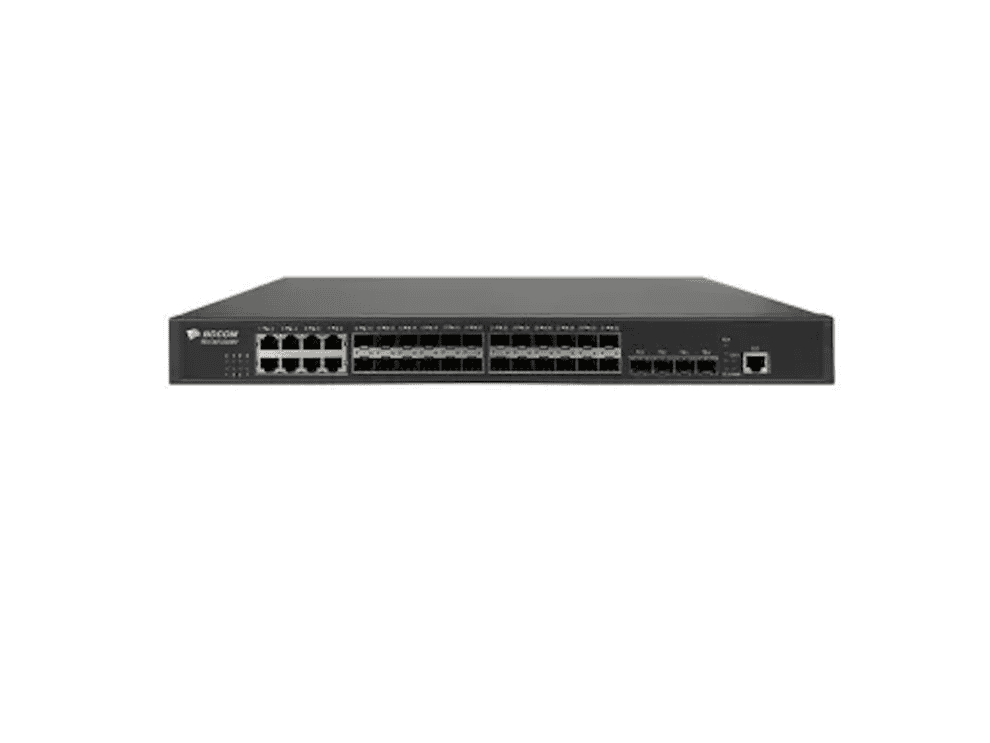

S2900 L3-lite Series is a next-generation aggregation 10GE switch introduced by BDCOM. It is targeted at the IP MAN(metropolitan area network), government and enterprise networks, Internet café and diskless working environment. It is developed on the basis of high performance hardware and BDROS software platform with BDCOM own independent intellectual property rights.It supports functions such as powerful ACL,flexible QinQ, 1:1 or N:1 VLAN switching, Ethernet OAM, carrier-level QoS and industry-level 10GE Etherring, ensuring this switch series meets application requirements in all kinds of complicated sites. It also supports layer-3 routing protocol.
| Gigabit Interface | |
| RJ45 | 8(Combo) |
| SFP | 24 |
| 10GE/GE Interface | 4 |
| Console(RJ45) | 1 |
| Backplane(Gbps) | 128 |
| Forwarding rate | |
| (Mpps with 64 bytes) | 96 |
| Chassis | 440x280x44 (mm) |
| Power consumption Full load | < 38W |
| Power consumtion no load | < 18W |
| Power supply | 45W |
| Total Output BTU (1000BTU/H=293W) | 153.58 |
| Fan number | 2 |
| Noise@25°C（dBA) | 45 |
| MTBF(H) | >200,000 |
