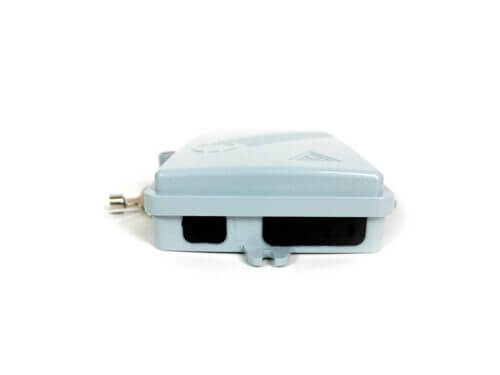

Acconet Distribution Box 4 Core

Features

• Total enclosed structure, be in nice shape
• Protects and manages cable eectively
• Secured with anti-theft locking mechanism
• Standard size, light weight
• High quality PC +ABS material
• Good properties of dust, and moisture proong, IP65
• Suitable for SC and LC duplex adaptor and pigtail
• Easy to operate
• Suitable for both outdoor and indoor use

Mounting way: Wall-mounting,
Work Temperature: -40 °C ~ +85 °C
Relative Humidity: ≤ 85% (+30 °C)
Atmospheric Pressure: 70Kpa~106Kpa
Insert Loss: ≤ 0.2dB
UPC Return Loss: ≥ 50dB
APC Return Loss: ≥ 60dB
Insert and Pull-out Life: ≥ 1000 times
Insulation: The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (Direct current）
Withstand Voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)
