Hardware Features

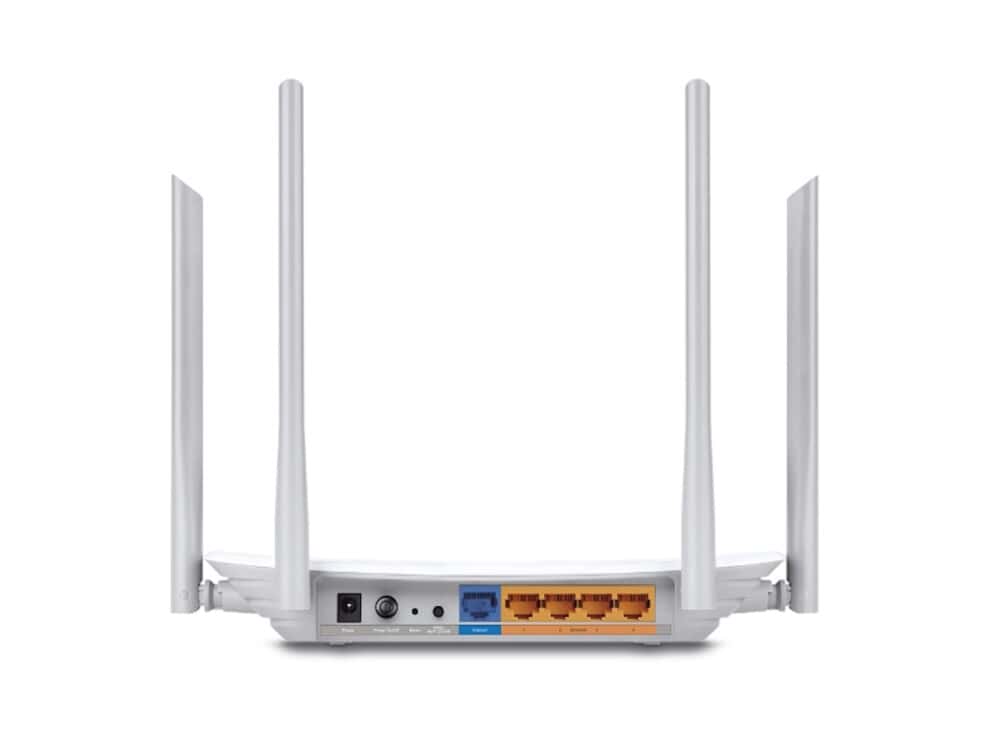

Interface:
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
External Power Supply: 9 V ⎓ 0.85 A
Dimensions ( W x D x H ):
9.1 × 5.7 × 1.5 in
(229.9 × 144.2 × 36.9 mm)
Antenna: 4 External Antennas
Wireless Features
Wireless Standards: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz,
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps*
Transmit Power: CE: <20 dBm(2.4 GHz), <23 dBm (5 GHz)
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Schedule, Wireless Statistics, Access Point mode
Wireless Security: WPA/WPA2 encryptions
Software Features
Quality of Service: QoS by Device
WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Management: Local management: WebGUI, Tether app
Remote management: TR-069, TR-181, TR-111, TR-143, Aginet ACS
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, DMZ, UPnP
VPN Pass-Through: PPTP, L2TP, IPSec
Access Control: Parental Controls, Local Management Control, Host List, White List, Black List
Firewall Security: DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
