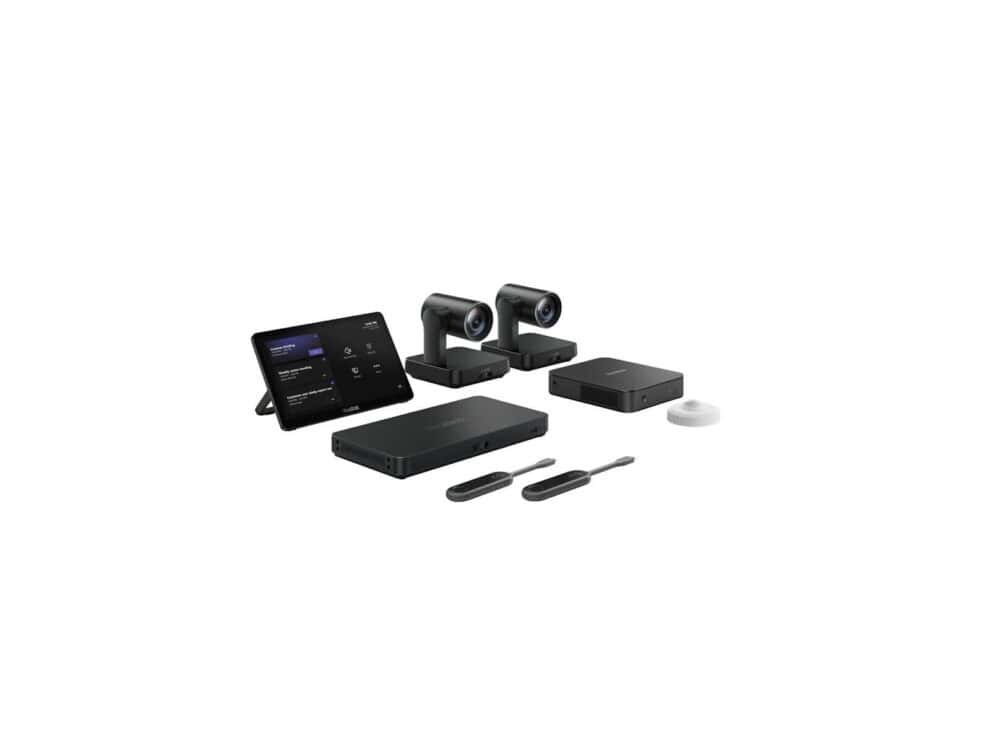

Yealink MVC940 is specially designed for extra-large conference rooms and training rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC84, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink’s exclusive multi-camera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism Functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms.
Features
- Multi-cam solution, Flexible layout
- Big and flexible conference control experience
- Wireless content sharing
- Flexible audio, Flexible connectivity
Technical Specification
Product: Yealink MVC640 Microsoft Teams Rooms System
Product type: Group video conferencing system
Camera type: Single camera
Optical zoom: 12x
Camera Sensor type: CMOS
Camera Horizontal field of view: 73°
Camera Vertical field of view: 45°
Camera Diagonal field of view: 80°
Video HD type: 4K Ultra HD
Video Maximum frame rate: 30 fps
Display: IPS, Touchscreen
Display diagonal: 29.5 cm (11.6″)
Display resolution: 1920 x 1080 pixels
Computer system type: Mini PC
Computer system Processor family: Intel Core i5
Internal memory: 8 GB
Internal memory type: DDR4
Total storage capacity: 128 GB
Storage media type: SSD
Computer system Operating system installed: Windows 10 IoT Enterprise
Product colour: Black
Ports & interfaces
- 3x HDMI output ports
- 1x USB 2.0 ports quantity
- 4x USB Type-A ports
- 1x Ethernet LAN (RJ-45) port
- 1x DC-in Jack
- 1x Line-out
- 1x Reset slot
- Bluetooth version 5.2
- Wi-Fi 5 (802.11ac)
AVHub Ports & interfaces
- 2x USB 2.0 ports quantity
- 1x Audio RCA input ports
- 7x RJ-45 ports
- 1x Line-in port
- 1x Line-out port
- 1x DC input port
