The Yealink CS10, a low-profile (120mm) 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.Versatile and engineered for ease of use, the CS10 is a PoE-enabled speaker that can optionally deployed with variety supplementary components, simplifying installation across diverse ceiling types. Its covert design, establishes the CS10 as more than just a speaker – it is an essential addition to your meeting space, enhancing both visual and auditory experiences.
The CS10 is not just a functional device for your conference room; it’s a statement of elegance and technological prowess, representing the ideal audio solution for your professional needs.
Key Features
Innovative Coaxial Structure
Features a 2-way coaxial setup with a robust 5.7-inch LF Woofer and a crisp 1.1-inch HF Tweeter for high-fidelity audio delivery.
Acoustically tuned design for speech
Boasts impressive acoustic parameters, with a sensitivity of 88dB@1W 1m and a maximum SPL of 99dB@20W 1m, ensuring clear, powerful sound. With acoustically tuned design for speech clarity, Ideal for conferences and presentations.
PoE-Enabled Active Speaker
CS10 masterfully blends active speaker functionality with integrated DAC and PoE technology, enabling swift digital signal processing from the network for a hassle-free setup and minimal latency, tailored for dynamic professional scenarios.
Versatile Deployment
Offers diverse indoor installation solutions, compatible with various ceiling types and grid systems, ensuring easy adaptation to any interior design
Sophisticated Design

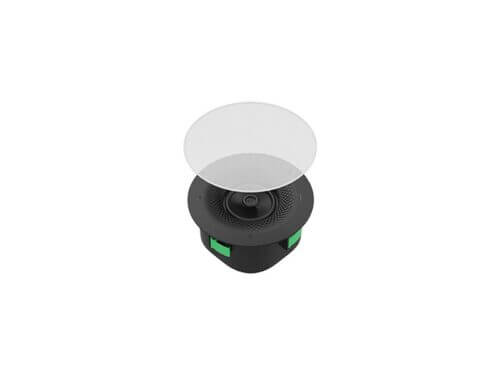

Features a detachable, paintable magnetic grille in black and white, adding to its sleek, low-profile (120mm) look that complements any modern interior.
Technical Specification
Audio
Frequency Response (-6dB): 100-20kHz
Maximum SPL Continuous: 99dB @20W 1m
Maximum SPL Sensitivity: 88dB @1m 1W
Speaker
LF: 5.7-inch (145 mm) woofer
HF: 1.1-inch (28 mm) tweeter
Nominal Impedance: 8Ω
Nominal Coverage Angle: 120
Product
Cover Mesh: PC/ABS Welded SPCC
Main Body Shell: PA (Polyamide) with 15% GF
Bottom Shell: Aluminum Alloy
Cover Plate: PC/ABS and SGCC
Plenum Rated: UL 2043 (suitable for air handling spaces)
Physical
Rated Power: 20W
Power Supply required: PoE+ (IEEE 802.3at class 4)
Interface: 1x RJ-45
