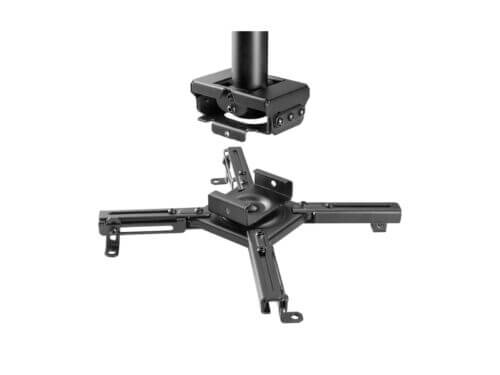

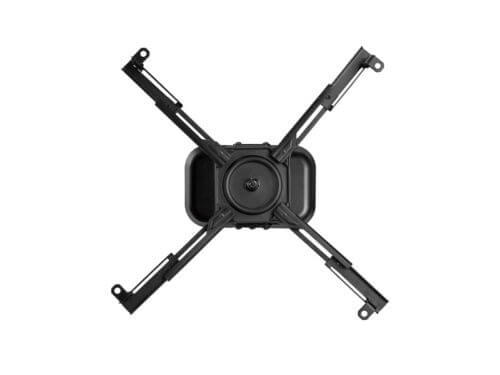

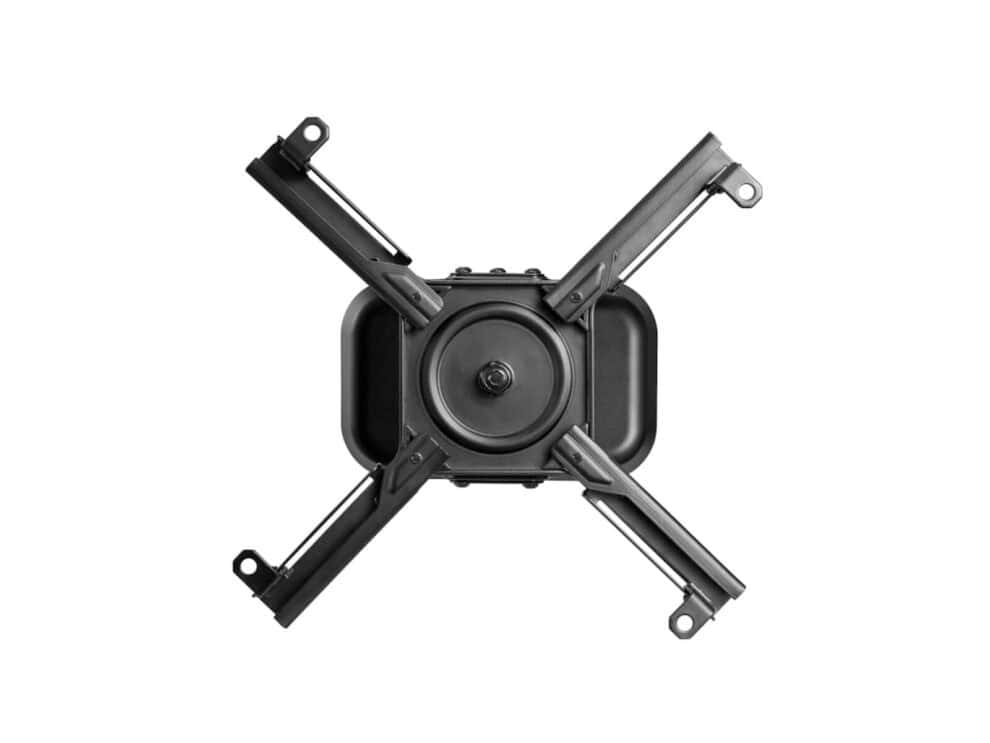

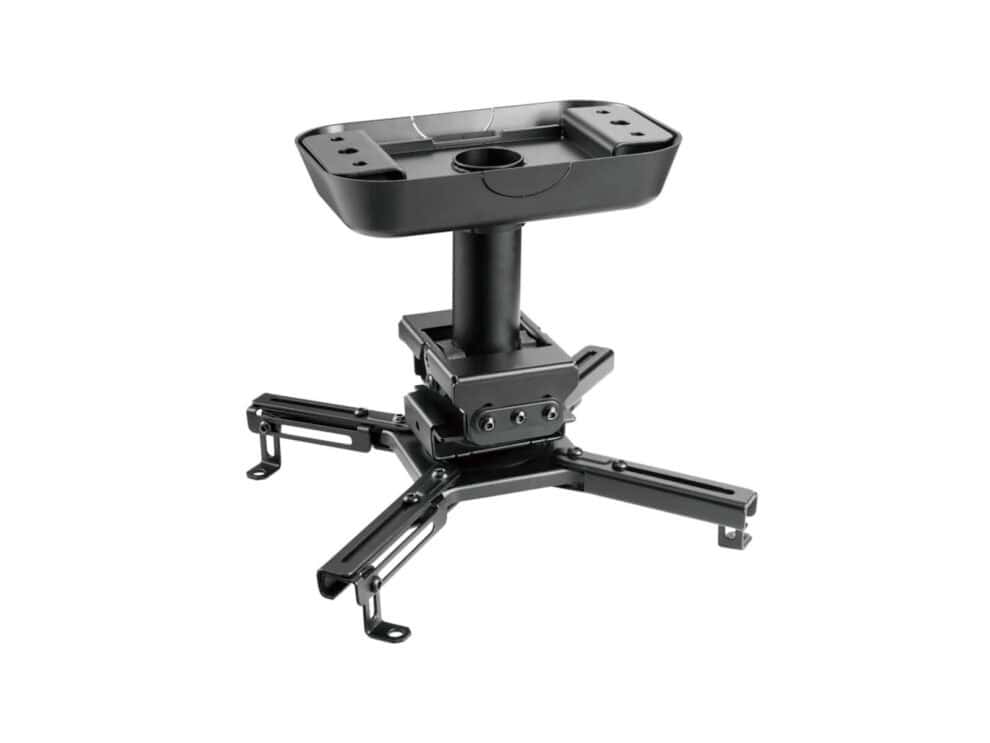

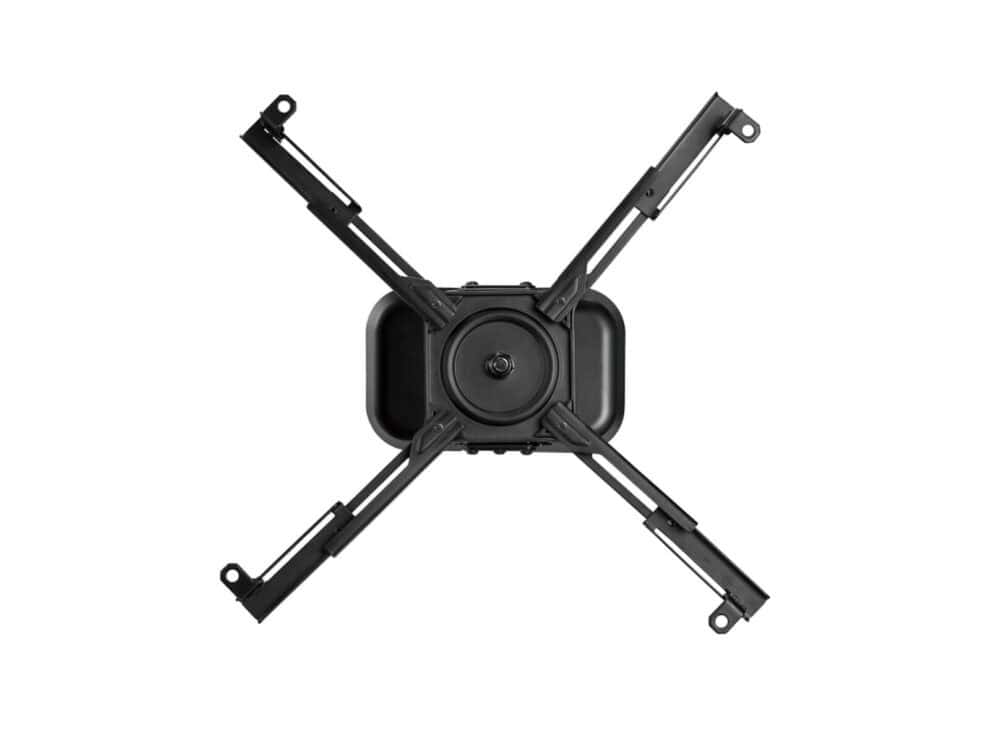

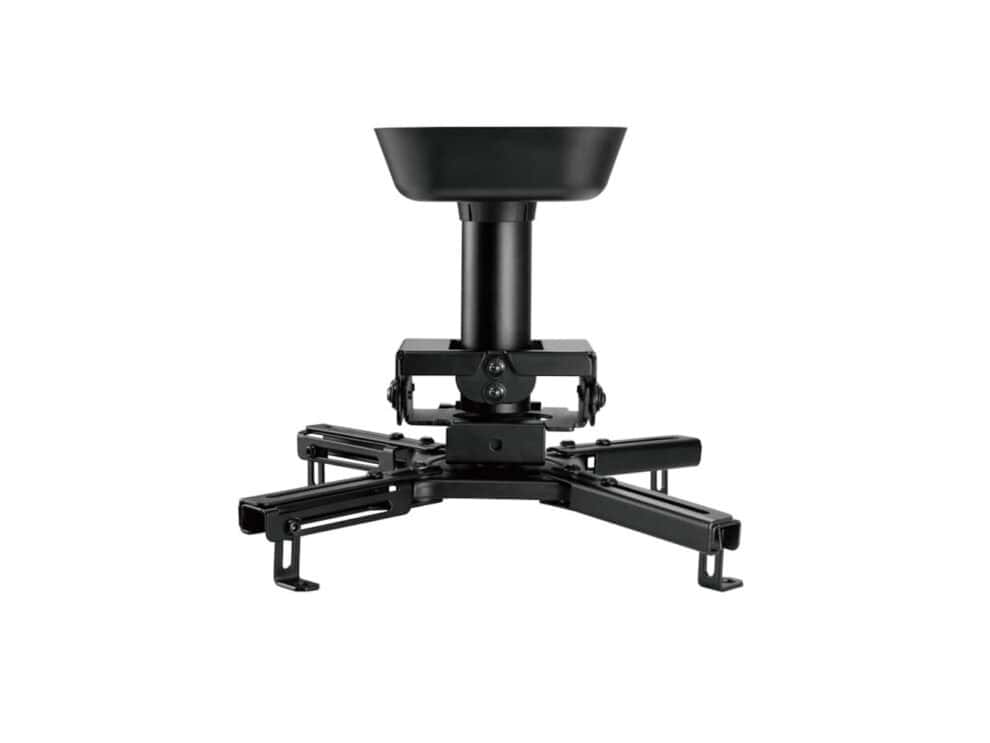

The WINX Mount Max Ceiling Projector Bracket is designed to securely support most projectors, with a maximum weight of 45 kilograms. The sturdy bracket is ideal for classrooms, boardrooms, and conference rooms. It includes a flexible mechanism that allows you to adjust the angle of the projector to find the perfect viewing position by rotating it up to 180°, tilting it forward and back up to 20°, and swiveling it up to 8° left and right. The installation process is made quick and easy with a wide range of mounting hole configurations.

### FEATURES:

- Supports projectors up to 45kg.
- Includes swivel, tilt, and 180° rotation mechanism.
- Adjustable mounting options.
- Detachable mounting cover.

### SPECIFICATIONS:

- Material: Plastic, steel
- Surface finish: Powder coating
- Mounting range: 130 – 470mm
- Max weight: 45kg
- Installation: Ceiling mounted
- Cable management: Built-in
- Tilt range: Up to 20° forward and back
- Swivel range: Up to 8° left and right
- Projector rotation: Up to 180° clockwise and counterclockwise
- Extension: 245mm

### WHAT’S IN THE BOX:

- WINX MOUNT Max Ceiling Projector Bracket – Black x1
- Installation Kit x1
- User manual x1
