This 14-in-1 hub is your ultimate connectivity solution. Supercharge your productivity by expanding your Type-C compatible laptop display to up to 3 screens, with 2 HDMI ports (4K@60Hz), and a single DisplayPort (8K@30Hz). This hub adds Type-C Power Delivery (100W), Gigabit Ethernet, and AUX stereo ports to your device, along with a Type-C connection and 5 USB ports for connecting multiple peripherals and storage devices. If all that wasn’t enough, it also features SD and microSD card readers, allowing you to quickly access and transfer media files. This hub ensures everything stays connected and powered for an easier and more productive workday. With this hub you’re not just prepared – you’re unstoppable.
FEATURES:
- Supports 8K@30Hz via DisplayPort Extend or mirror up to three displays at 1080p
- Expand, charge, and connect your peripherals with a single hub
- Convenient SD & microSD card readers for effortless media transfer
- Gigabit Ethernet port for dependable and high-speed internet connection
- Enjoy crisp wired audio with the AUX stereo port
- Data transfer rates of up to 5Gbps for quick and effortless file transfers
- Ideal for use with Type-C compatible notebooks or laptops
- Slim and compact design so you can easily setup up and work from anywhere
- Universally compatible with Windows, macOS, and Android
- 8K@30Hz resolution is only supported with host DP1.4 devices
- Multi-display expansion not supported on macOS
SPECIFICATIONS:
- Host interface: Type-C
- 14 Ports:
- 2x HDMI (single display): 4K@60Hz (3840×2160) (multi-display): 1080p@60Hz (1920×1080)
- 1x DisplayPort
(single display): 8K@30Hz (7680×4320) (multi-display): 4K@60Hz (3840×2160) - 1x Type-C 100W Power Delivery (20V/5A)
- 1x Type-C 3.0 (Up to 5Gbps)
- 2x USB3.0 (Up to 5Gbps)
- 3x USB2.0 (Up to 480Mbps)
- 1x RJ45 Gigabit Ethernet (10/100/1000Mbps)
- 1x 3.5mm AUX stereo
- 1x SD card reader
- 1x microSD card reader
- Supported display modes: Single, dual, and triple display (extend or mirror)
- Operating temperature: -30°C to 60°C
- Cable length: 15cm
- OS compatibility: Windows, Linux, Mac, & Android
- Colour: Sandblasted anodized gray
- Material: Aluminium alloy
- Product dimensions: 13.8×5.5×1.5cm
- Product weight: 115g
- Packaging dimensions: 18.5×9.7×1.9cm
- Packaging weight: 142g
WHAT’S IN THE BOX:

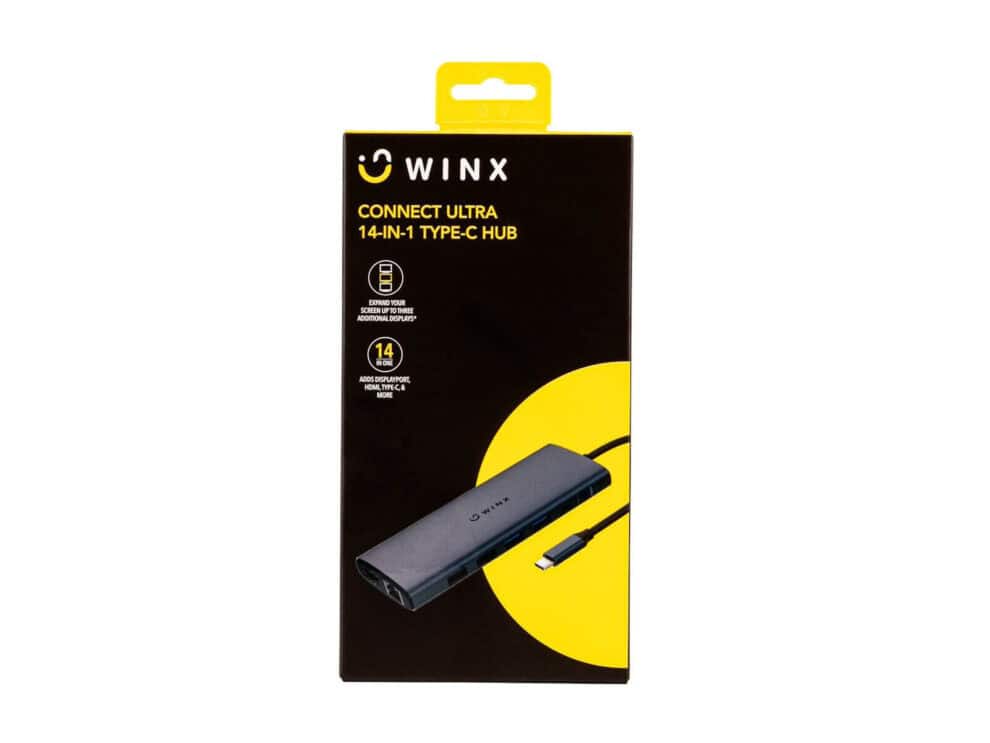

- WINX CONNECT Ultra 14-in-1 Type-C Hub x1
- User Manual x1
