excerpt: NexStar JX, USB 3.2 Gen 2x1, Triple Bay Dock (Dual M.2, Single SATA) with Clone Function
wpid: 519183
product_brand:
  - Vantec
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Data Storage
  - Data Storage Accessories
featured_image: "https://tech.co.za/wp-content/uploads/2024/11/NST-DM12C31a.jpg"
---

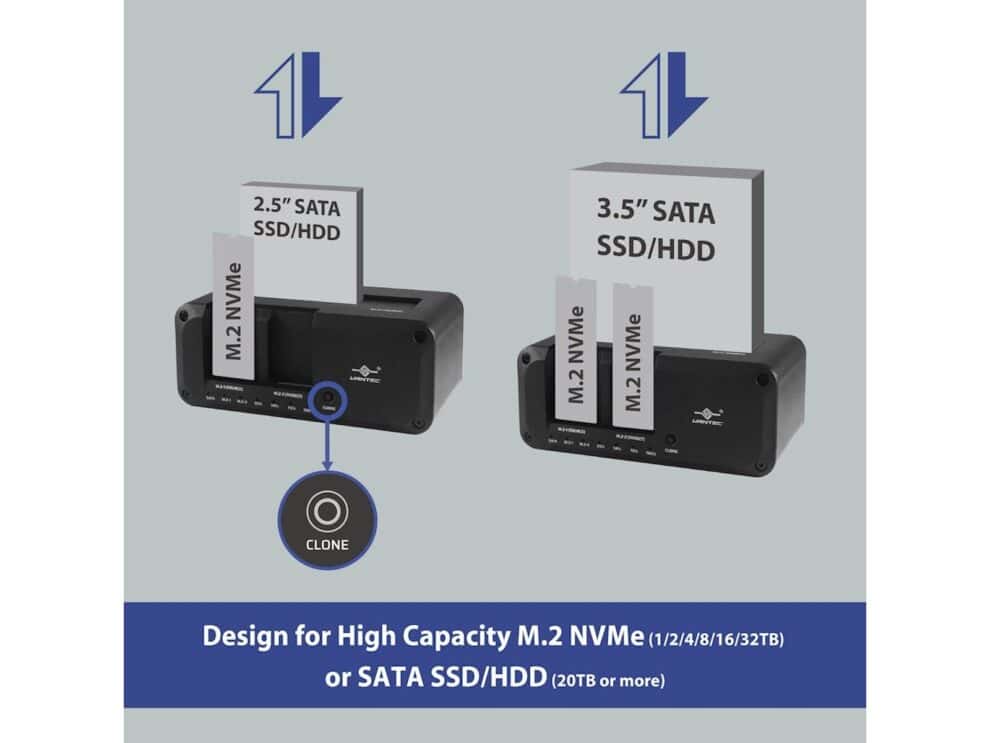

- **Dock Support:** M.2 NVMe; SATA III/II/I, HDD/SSD/Hybrid Drive

    **Dock M.2 Size:** 2230/2242/2260/2280/22110***/new 2580/25110

    **M.2 with HeatSink Measurement:** (W) <=28mm x (L) >110mm x (Db) 3.5mm (Df) >8.5mm [Drawing](https://www.vantecusa.com/CKEdit/files/M2%20with%20heatsink%20Drawing.jpg)

    **Dock SATA Size:** 2.5”/3.5” SATA SSD/HDD/Hybrid Drive

    **Internal Interface:** Two M.2 NVMe, One Standard SATA III/II/I

    **External Interface:** USB 3.2 Gen2x1 Type C

    **Interface Cable:** USB 3.2 Gen2x1 Type C to C/A

    **USB cable Length:** 100 cm / 39 inches

    **Power Supply:** Universal Switching AC adapter, Output: 12VDC, 3A

    **Storage Device Capacity:** High Capacity M.2 NVMe (1/2/4/8/16/32TB), High Capacity SATA III SSD/HDD (20TB or more)*

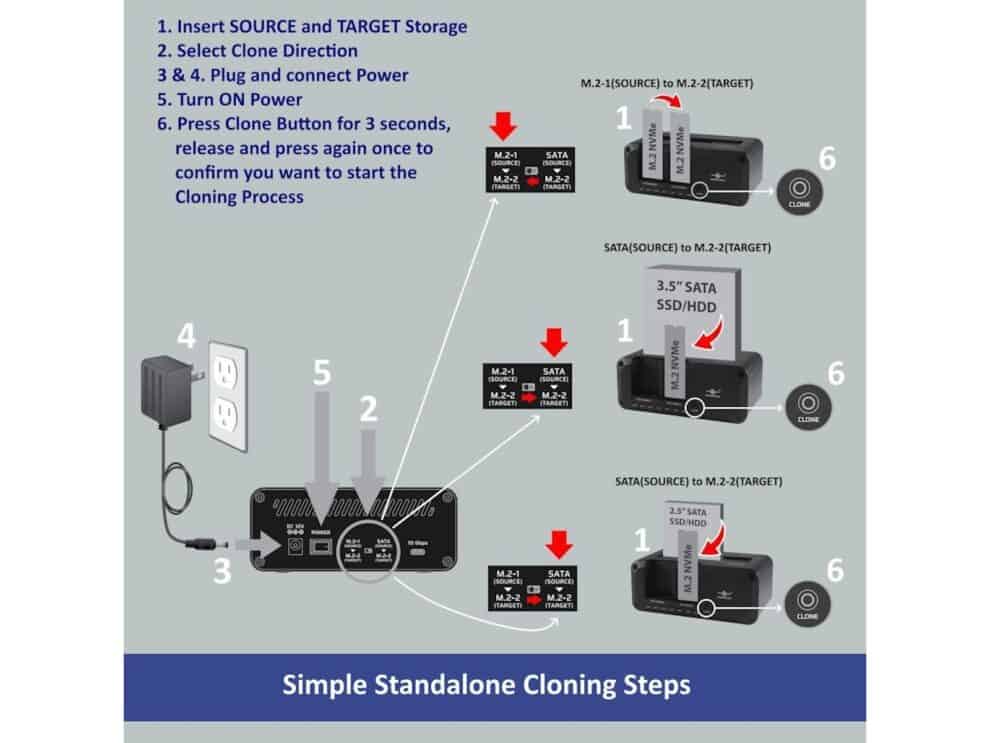

    **Stand Alone Clone Speed:** M.2 NVMe to M.2 NVMe ~ 1TB/20 minutes**

    **Material:** Heavy Duty ABS, Metal

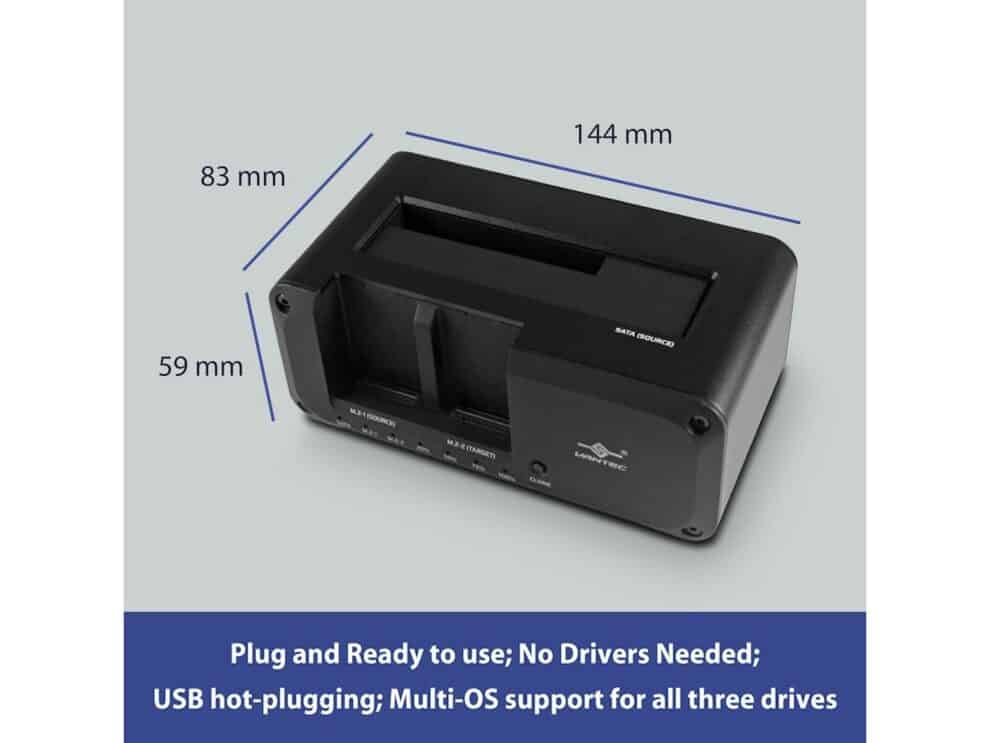

    **Dimension:** 5.67 x 3.27 x 2.32 inches / 144 x 83 x 59 mm

    **Weight:** 10.2 oz. / 290g (dock only)



    * Check VantecUSA.com Website FAQ for more current support capacity.

    ** Stand-Alone Cloning speed tests using Samsung 970 Pro, other media may vary.

    *** Support M.2 NVMe with mounted heatsink with width <28mm.



    **System Requirements:**

    • Windows OS (7/8/10/11) / OS X 10.6 or later / Latest Linux OS

    • Computer with USB 3.2 Gen2 Type C/A
