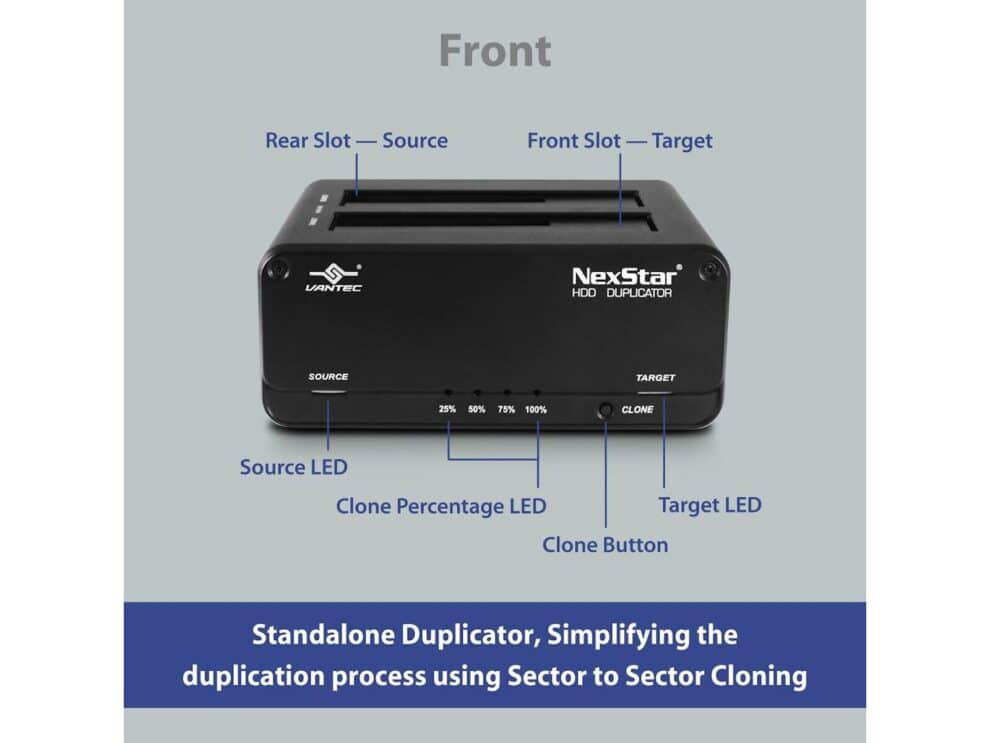

- **Standalone Duplicator, Simplifying the duplication process using Sector to Sector Cloning**
    – Design to use without connecting to a system

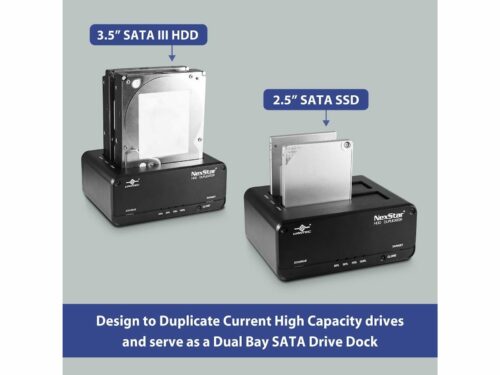

- **Design to Duplicate Current High Capacity drives and serve as a Dual Bay SATA Drive Dock**
    – Flexible design, HDD to HDD, HDD to SSD, SSD to HDD, or SSD to SSD in any capacity\*

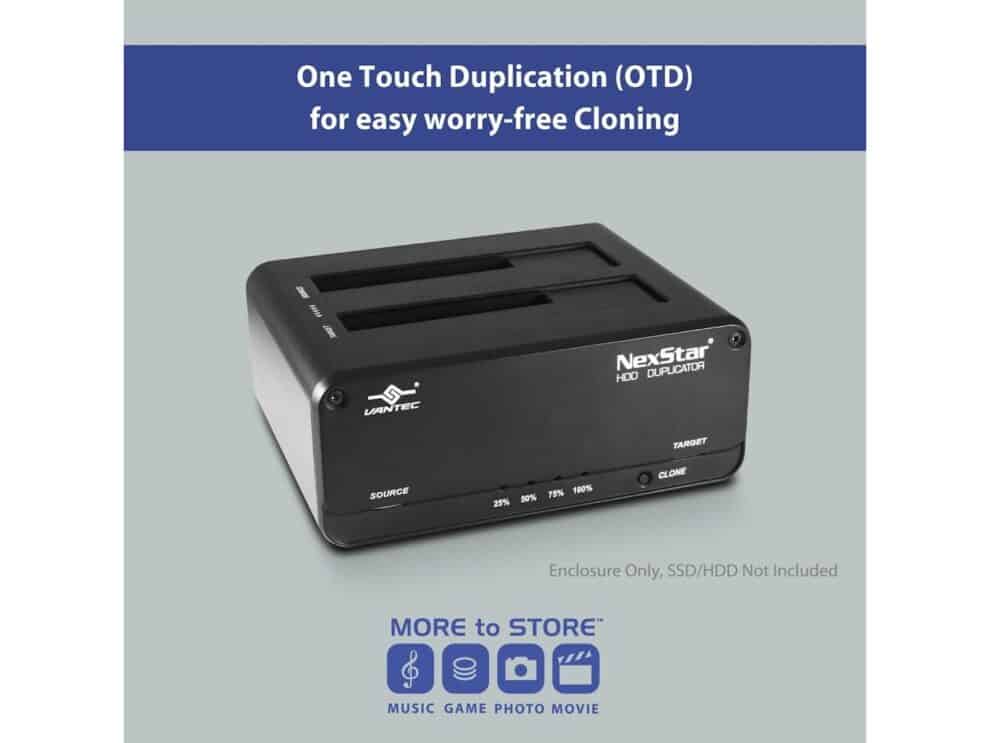

- **One Touch Duplication (OTD) for easy worry-free Cloning**
    – Press on the Clone sequence and walk away while it duplicates the drive
- **Fast USB 3.2 Gen1 Connection when using it as a Dual Bay SATA Drive Dock**
    – Maximum File transfer or Backup speed
- **Plug and Ready to use; No Drivers Needed; USB hot-plugging**
    – Simple and convenience
- **Design for Mac OS X, Windows OS, Linux OS**
    – Multi-OS support for Dual drive

\*Target drive must be bigger than Source drive, current max capacity is 20TB

**Dock Support:** SATA III/II/I; HDD/SSD/Hybrid Drive

**Dock Drive Size:** 2.5”/3.5” HDD/SSD/Hybrid Drive

**Internal Interface:** Standard SATA III (Compatible with SATA I/II)

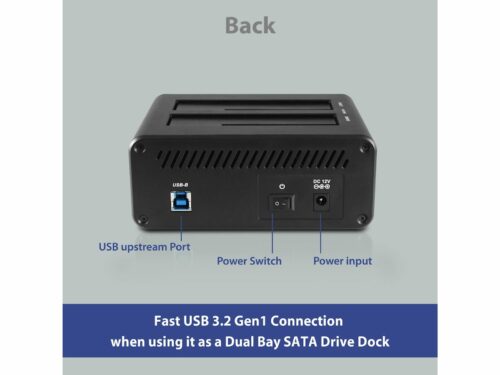

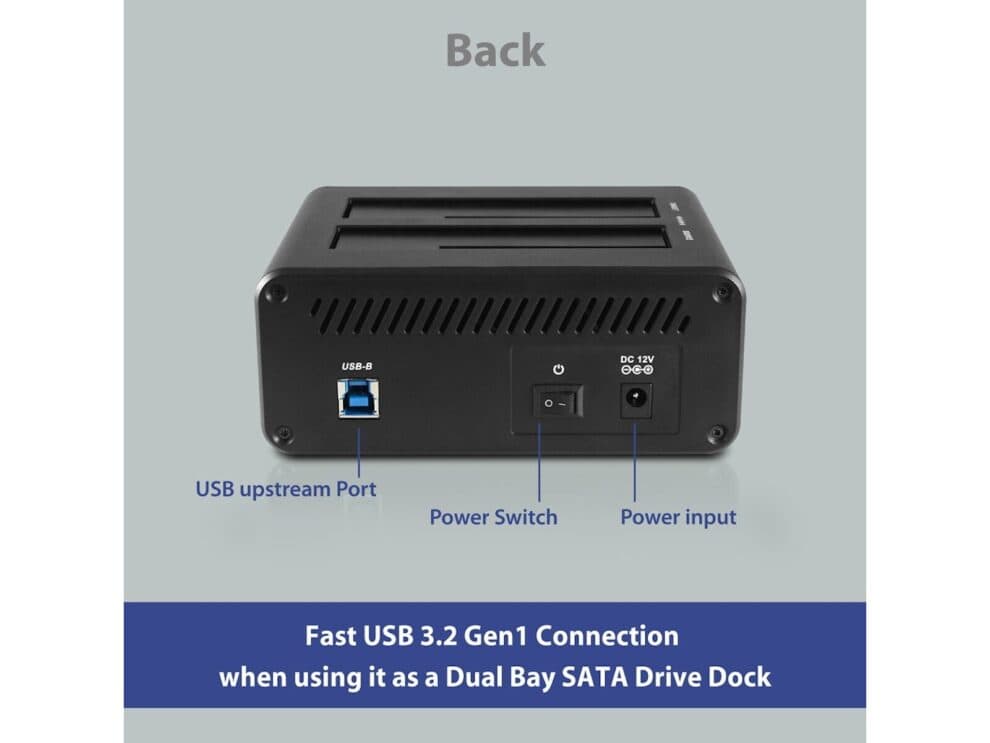

**External Interface:** USB 3.2 Gen1 Type B

**Interface Cable:** USB 3.2 Gen1 Type B (Dock Side) to USB 3.2 Gen1 Type-A (system side)

**USB cable Length:** 800 mm / 31 inches

**Power Supply:** Universal Switching AC adapter, Output: 12VDC, 3A

**HD Capacity:** Up to 20TB per bay*

**Clone Speed:**  SSD to SSD ~1TB/hour**

**Material:** Heavy Duty ABS

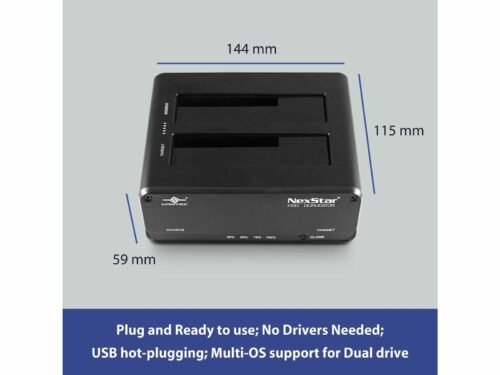

**Dimension:** 144 x 115 x 59 mm / 5.67 x 4.53 x 2.32 inches

**Weight:** 418 g / 14.7 oz. (dock only)
