title: Vantec M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card
date: 2026-01-09T12:12:14Z
modified: 2026-05-05T16:50:59Z
permalink: "https://tech.co.za/product/vantec-m-2-pcie-gen3x2-bm-key-to-5-ports-sata-iii-expansion-card/"
type: product
status: publish

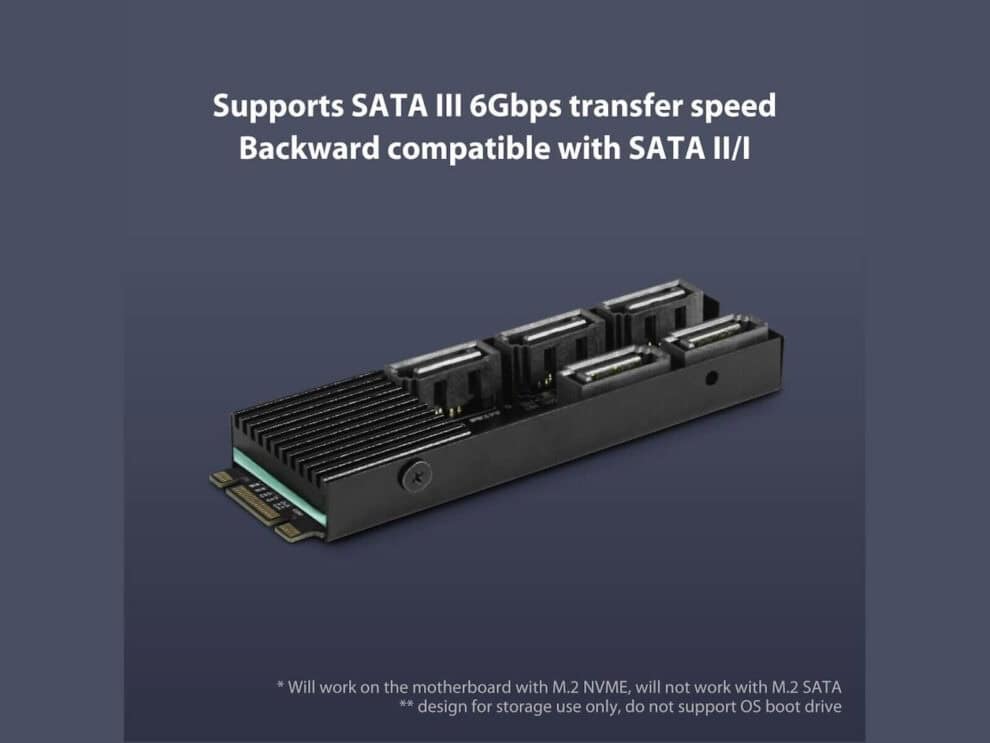

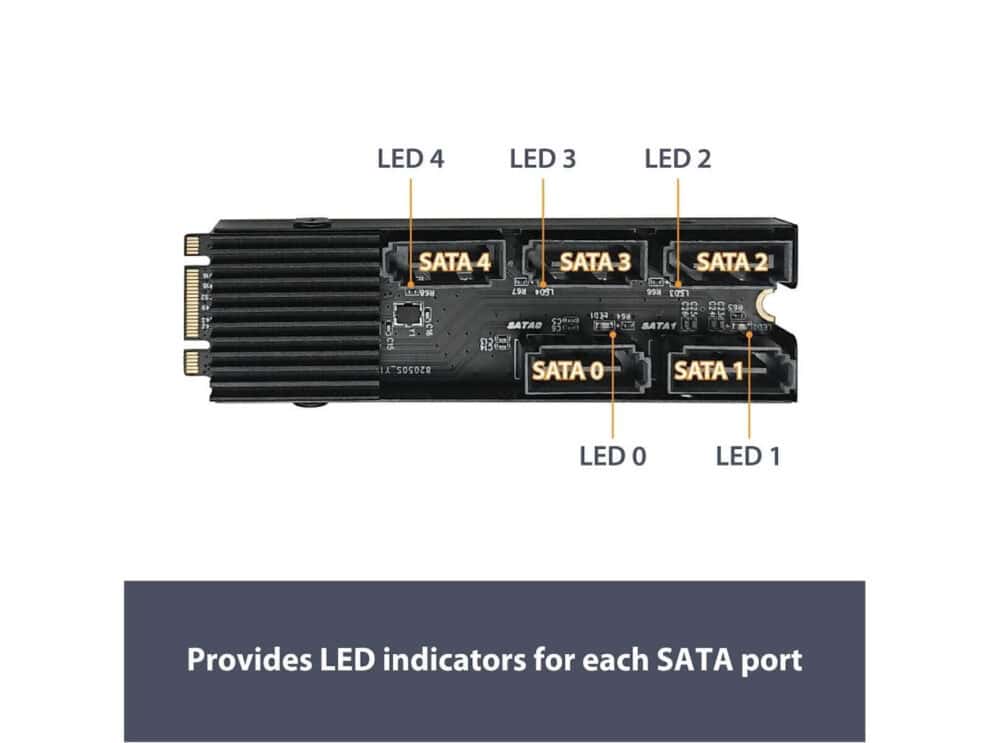

excerpt: "Provide 5 SATA ports via M.2 PCIe\\n    Supports PCIe Gen3x2 transfer speed\\n    Supports SATA III 6Gbps transfer speed (Backward compatible with SATA II/I)\\n    Supports SATA plug and play function\\n    Provides LED indicators for each SATA port"
wpid: 563693
product_brand:
  - Vantec
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Add-On Cards
  - Components
featured_image: "https://tech.co.za/wp-content/uploads/2026/01/UGT-M2670a.jpg"
---

**M.2 interface:** M.2 NVMe (PCI Express 3.0×2)

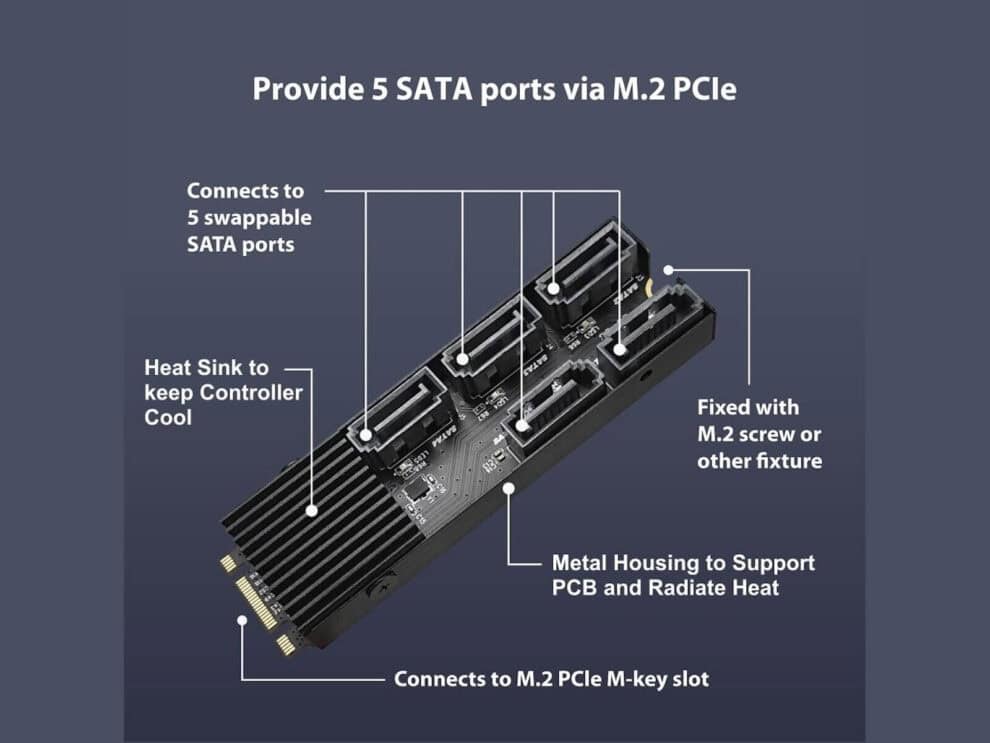

**Device Connectors:** Five SATA III (6Gbps) ports

**Power Supply:** M.2 interface powered, no external power needed

**Item Dimensions (LxWxH):** 3.18 x 1.00 x 0.42 inches / 80.8 x 25.4 x 10.6 mm

**Item Weight:** 0.81 oz. / 23 g

**OS Support:** Windows 11, 10 (32bit or 64bit); Linux OS with Latest Kernel

**Package Dimensions (LxWxH):** 5.43 x 2.36 x 0.94 inches / 138 x 60 x 24 mm

**Package Weight:** 1.62 oz / 46 g

**Environmental:**

**Operating Temperature:** 0 ℃ to +45℃

**Operating Humidity:**  10% to 85 % RH (no condensation)

**Storage Temperature:**  -10℃ to +70℃

**Storage Humidity:** 5% to 90% RH (no condensation)

**System Requirements:**

- M.2 NVMe interface on motherboard
- Newer OS (Windows 11/10)
- Preferred, but not required, motherboard with newer core chipset

NOTE: Will work on motherboard with M.2 NVME, will not work with M.2 SATA
